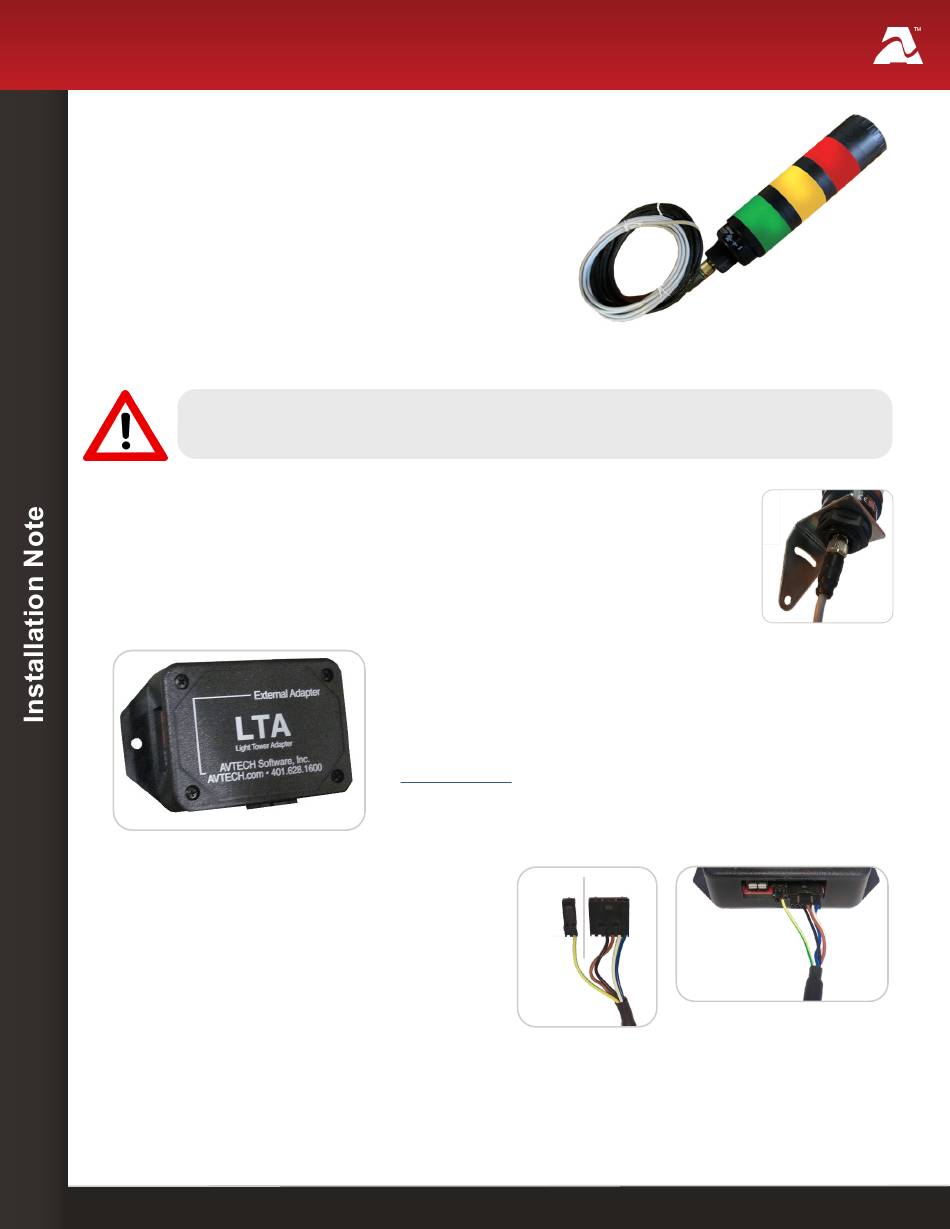

Avtech Light Tower w/Audio Manual

AVTECH
AVTECH's Light Tower w/Audio enhances the alerting
capabilities of Room Alert with visual and audible alarms.
The Light Tower w/Audio has three independently-
selectable LEDs (red, yellow and green) and one audio
signal adjustable up to 92 dB at 3.3' (1 m).

Light Tower w/Audio Package Contents

• One (1) Light Tower w/Audio
• One (1) mounting bracket
• Three (3) mounting screws

Install Your Light Tower w/Audio

Do not use this sensor in hazardous (classified) locations or life safety applications.
Step 1: Mount your Light Tower.
Mount your Light Tower w/Audio with the attached right-angle mounting
bracket and included mounting screws.
Step 2: Connect your Light Tower to AVTECH's Light Tower &
Relay Adapter.
Attach both connectors on the Light Tower's
custom cable to the custom port on the Light
Tower & Relay Adapter.
The larger connector is for the Light Tower's
LEDs, while the smaller one is for its audio,
as shown here.
AVTECH Software, Inc.
Light Tower w/Audio
To use your Light Tower with Room Alert 32S and 12S or
Room Alert 32E, 12E and 3E, you need AVTECH's Light
Tower & Relay Adapter (LT-32-ADP), shown here.
For more information about AVTECH's Light Tower &
Relay Adapter, please see its Installation Note, visit
AVTECH.com
To use your Light Tower w/Audio with the Room Alert 4E
model, connect it directly to the Room Alert 4E's custom
port.
Temperature & Environment Monitoring... Made Easy!
or contact your Product Specialist.
Audio LEDs
