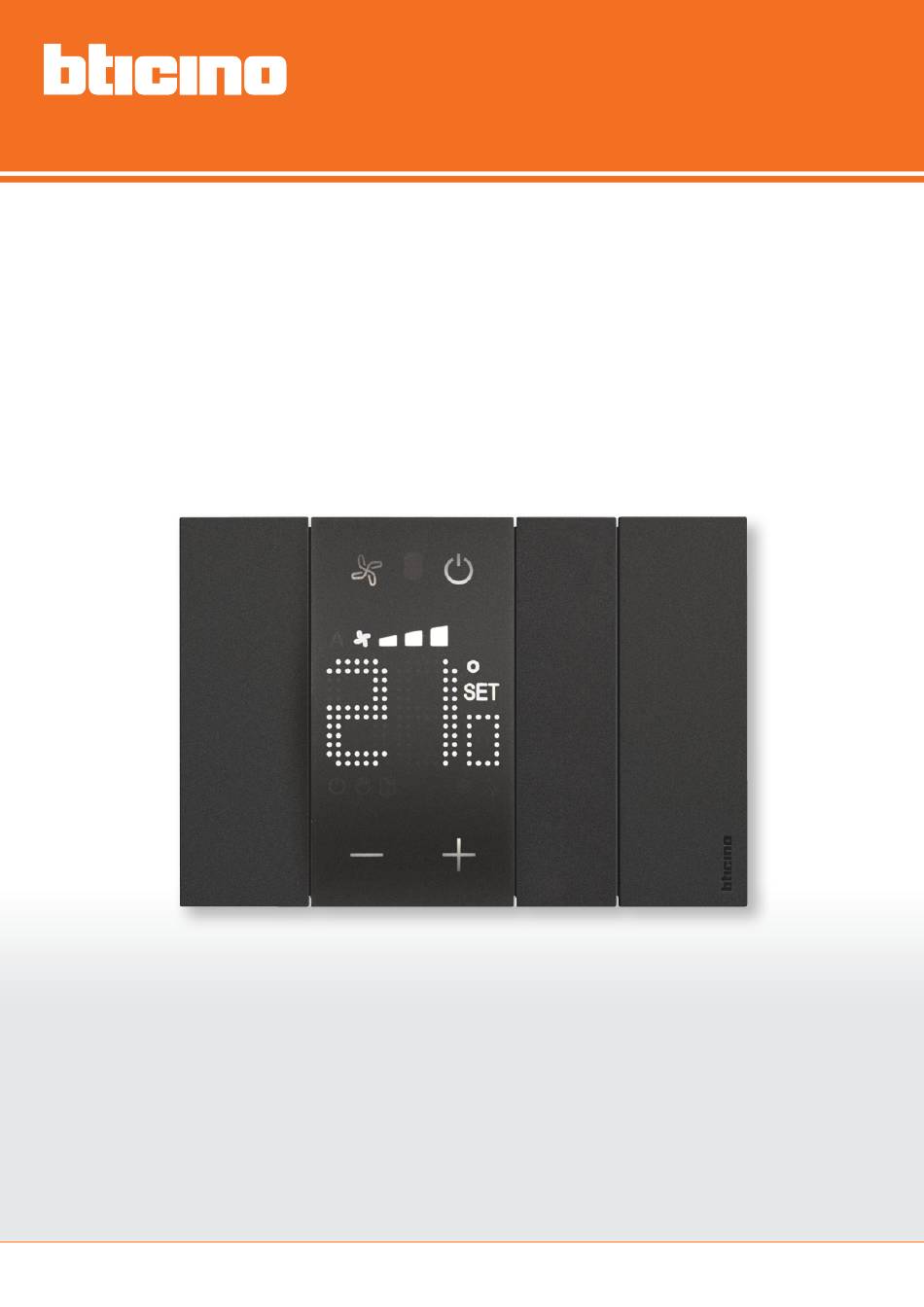

- Page 1 Room thermostat KW4691- KG4691- KM4691 User manual www.bticino.com...
- Page 2 Room thermostat User manual...
-
Page 3: Table Of Contents
Room thermostat User manual Contents Introduction Fundamental concepts Function keys and notification symbols Thermostat use Local functions Set the programmed temperature Protection Mode Fancoil fan adjustment Local contact Functions with MyHOME_Up Hot/cold mode Protection Mode Fancoil fan adjustment Functions with Hotelsupervision Set the programmed temperature Set the system operating mode Set the thermostat operating mode... -
Page 4: Introduction

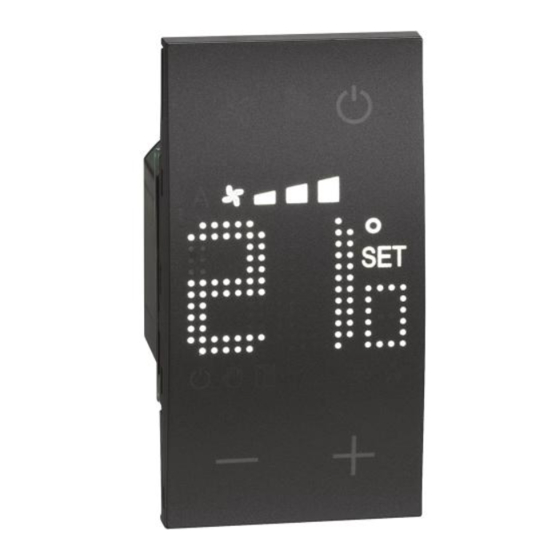

Room thermostat User manual Introduction It is possible to use the thermostat with display both with heating and cooling systems, locally (using the available keys) and remotely (using the Hotelsupervision software, MyHOME_Up or HOMETOUCH - see the Thermostat Use) section. The LED display shows the current mode of operation (Antifreeze/Thermal Protection or Heating/ Cooling), the room temperature measured, the temperature set point, the fan-coil speed, the window contact status and the zone status. - Page 5 Room thermostat User manual Protection mode Setpoint that in a heating system sets the minimum safety temperature to 7°C (Antifreeze) and in a cooling system the maximum safety temperature to 35°C (Thermal Protection). These values may be changed by your installer using MyHOME_Suite and Hotelsupervision. Window contact Upon opening of the local contact (e.g.
-
Page 6: Function Keys And Notification Symbols
Room thermostat User manual Function keys and notification symbols A Backlit display Function keys (local mode) C Notification symbols D Measured/programmed temperature Function keys Switches from ON to OFF: If the thermostat is set to ON, the temperature is regulated ON / OFF key based on the programmed... - Page 7 Room thermostat User manual Notification symbols OFF thermostat The thermostat is set to Protection mode Temperature setting It appears when the temperature is being set Heating mode The system is in heating mode and is ON Cooling mode The system is in cooling mode and is ON The fan-coil is in automatic operation mode, Automatic Fancoil fan based on the set temperature...
-
Page 8: Thermostat Use
Room thermostat User manual Thermostat use You can interact with the thermostat in different ways:: – locally, using the thermostat keys MyHOME_Up – using a smartphone with the free App installed – using a PC with the Hotelsupervision software installed HOMETOUCH –... -
Page 9: Local Functions
Room thermostat User manual Local functions Set the programmed temperature Using the keys, it is possible to change the temperature value that will be used by the temperature control system to switch on or off. A subsequent remote temperature change will prevail on this setting. When idle, the display shows the measured temperature and the programming status. - Page 10 Room thermostat User manual To change the value, before flashing ends: 2. Touch to increase or decrease the programmed temperature Wait for the end of the flashing. The temperature is now set to the new programmed value. After a few seconds, the new setting is saved and the measured temperature appears. This example shows a set temperature higher than the measured temperature, therefore also displaying the symbol confirming that the heating system is in operation...
- Page 11 Room thermostat User manual If the symbol (A) appears, the thermostat is set to Protection Mode. To switch to Programmed Temperature mode: 3. Touch ON/OFF and restart from item 1...
-
Page 12: Protection Mode
Room thermostat User manual Protection Mode This function allows you to set the system to Antifreeze (heating) or Thermal Protection (cooling) mode When idle, the display shows the measured temperature and the programming status. Programming status – Symbol Present Protection Mode Not present Programmed temperature mode 1. - Page 13 Room thermostat User manual After a few seconds, the value is saved and the symbol appears, to indicate that the mode is active.
-
Page 14: Fancoil Fan Adjustment
Room thermostat User manual Fancoil fan adjustment If the thermostat manages a fan-coil type load, the fan speed can be adjusted using the dedicated pushbutton. 1. Touch to set the fan speed at the desired level Speed 1 Speed 2 Speed 3 Automatic operation During the adjustment the fan symbol and the segment for the speed selected flash. -
Page 15: Local Contact
Room thermostat User manual Local contact Upon opening of a local contact (e.g. window contact), the display shows the corresponding symbol, which will disappear again once the contact is closed The symbol will disappear when the contact is closed. -
Page 16: Functions With Myhome_Up
Room thermostat User manual Functions with MyHOME_Up In order to use the thermostat with MyHOME_Up, it will be necessary to first download the App (for iOS devices from App Store, for Android devices from Play Store), and then connect to the system (for the details see the MyHOME_Up manual). -
Page 17: Hot/Cold Mode
Room thermostat User manual Hot/cold mode Using this function, it is possible to set the system to heating/cooling and a programmed temperature Children bedroom Thermostat Children bedroom Thermostat Prim... Cameretta Prim... Cameretta First floor - Children bedroom First floor - Children bedroom 16.6 16.6 Cold... -
Page 18: Fancoil Fan Adjustment
Room thermostat User manual Fancoil fan adjustment If the thermostat manages a fan-coil type load, the fan speed can be adjusted Children bedroom Thermostat Children bedroom Thermostat Prim... Prim... Cameretta Cameretta First floor - Children bedroom First floor - Children bedroom 16.6 16.6 Cold... -
Page 19: Functions With Hotelsupervision
Room thermostat User manual Functions with Hotelsupervision In order to use the thermostat with Hotelsupervision, this must first be installed on a PC (for the details see the Hotelsupervision software manual). Start the Client module; this is the system user interface, which gives the possibility of managing the room thermostats from the switchboard. -
Page 20: Set The Programmed Temperature
Room thermostat User manual Set the programmed temperature To set the room temperature, use the +/- keys. This new adjustment will delete any previous setpoints and will be active until a new setpoint is set. 1. Touch to increase or decrease the room temperature to the desired level. The system will then be switched on or off based on the measured room temperature Set the system operating mode Using this function, it is possible to set the system to heating or cooling, or both. -
Page 21: Set The Thermostat Operating Mode
Room thermostat User manual Set the thermostat operating mode Using this function, it is possible to select the mode that will be used by the thermostat for temperature adjustment. 1. Touch to select the mode among: – Eco: the system only operates based on the energy saving set point set for the heating and cooling functions. -
Page 22: Functions With Hometouch
Room thermostat User manual Functions with HOMETOUCH The home temperature may also be adjusted using the thermostat object of the HOMETOUCH internal unit temperature control page. 16:01 Wednesday, 6 December Deactivation ACTIVE ZONES 0 partitions Everything is turned off and shutters Kitchen Thermost... -
Page 23: Heating/ Cooling Mode
Room thermostat User manual Entrance thermostat 21.0 °C 23.5 °C A Zone name Displays the measured temperature C Displays the set temperature D Set the programmed temperature Display/set the FANCOIL fan speed (where present) Thermal protection/antifreeze mode: Touch to set Antifreeze Mode (heating). The system activates when the measured temperature falls below 7°C. -
Page 24: Set The Programmed Temperature
Room thermostat User manual THERMOREGULATION Other... Entrance thermostat 21.0 °C Working mode Heating Cooling 2. Select the operating mode 3. Touch to confirm Set the programmed temperature To set the temperature, use the +/- keys. This new adjustment will delete any previous setpoints and will be active until new setpoints are set. - Page 25 Room thermostat User manual THERMOREGULATION Other... Entrance thermostat 21.0 °C 22.5 °C This example shows a set temperature higher than the measured temperature; the background turns red and the , symbol appears, confirming that the heating system is in operation.
-
Page 26: Protection Mode
Room thermostat User manual Protection Mode Using this function, it is possible to set the minimum safety temperature of 7°C (Antifreeze) for the heating system, and the maximum safety temperature of 35°C (Thermal Protection) for the cooling system THERMOREGULATION Other... Entrance thermostat 21.0 °C 23.5 °C... -
Page 27: Fancoil Fan Adjustment
Room thermostat User manual Fancoil fan adjustment If the thermostat manages a fan-coil type load, the fan speed can be adjusted THERMOREGULATION Other... Entrance thermostat 21.0 °C 23.5 °C 1. Touch to set the fan speed at the desired level Speed 1 Speed 2 Speed 3... -
Page 28: Messages And Errors
Room thermostat User manual Messages and errors Messages In some cases, the thermostat display will show some symbols to indicate that the current mode of operation is different from the standard mode. “Thermostat OFF” indicator When the thermostat is OFF, this symbol appears. The OFF command can only be sent using the Hotelsupervision software, or the local window contact. - Page 29 Room thermostat User manual “Thermostat not configured” indicator This symbol flashing quickly indicates that the thermostat has not yet been configured...
-
Page 30: Errors
Room thermostat User manual Errors If the display shows “Er” followed by a number, the thermostat is indicating the existence of a condition of error. In this case refer to the installer manual or contact your trusted technician. Below is an example of the error screen. *Note: : if ER4 or a temperature significantly different from the one perceived are displayed, or after the first installation, wait at least 5 hours before checking the operation again. - Page 31 Room thermostat User manual...
- Page 32 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
