Bticino Smarther X8000W Quick Start Manual

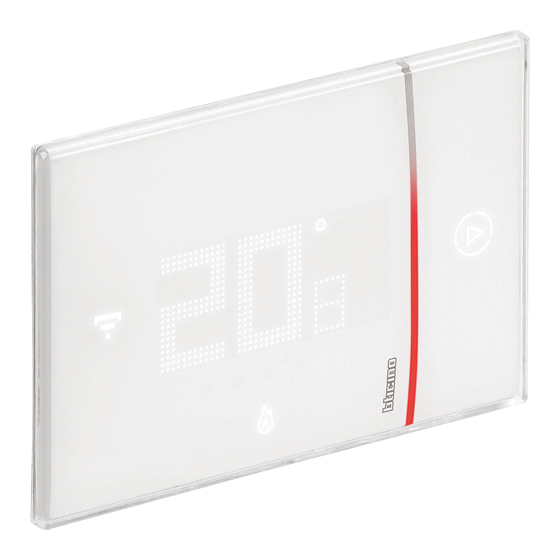

Smarther connected thermostat
Description
The Smarther connected electronic thermostat, together with the dedicated Thermostat
App, is a device which allows you to adjust and monitor the temperature in the rooms
locally or remotely. The temperature level can be set locally for manual operation and
the Boost mode can be activated. The Boost forces the switching on of the system for
a limited time (30, 60 or 90 minutes) independent of the measured and programmed
temperature. It can also display the temperature and humidity measured.
Thanks to its Wi-Fi connection, all the programming and most of the functions are
performed simply and intuitively using the App in the home or remotely.
Smarther can be installed on the wall, using screws and dowels suitable for the
installation surface.
Technical data
Power supply 110 – 240 Vac , 50/60Hz
Absorption 2 W max
Maximum cable section 1 x 1.5mm2
Operating temperature 5 – 40 °C
Temperature set-point 5 – 40 °C; increase of 0.5 °C
Type of activation 1BU
Pollution level 2
Rated pulse voltage 4 kV
Wireless device in compliance with 802.11b/g/n standard, frequency 2.4 – 2.4835 GHz,
transmission power < 20 dBm.
WPA/WPA2 safety protocol.
Dimensional data
A
A B
126 mm 87 mm

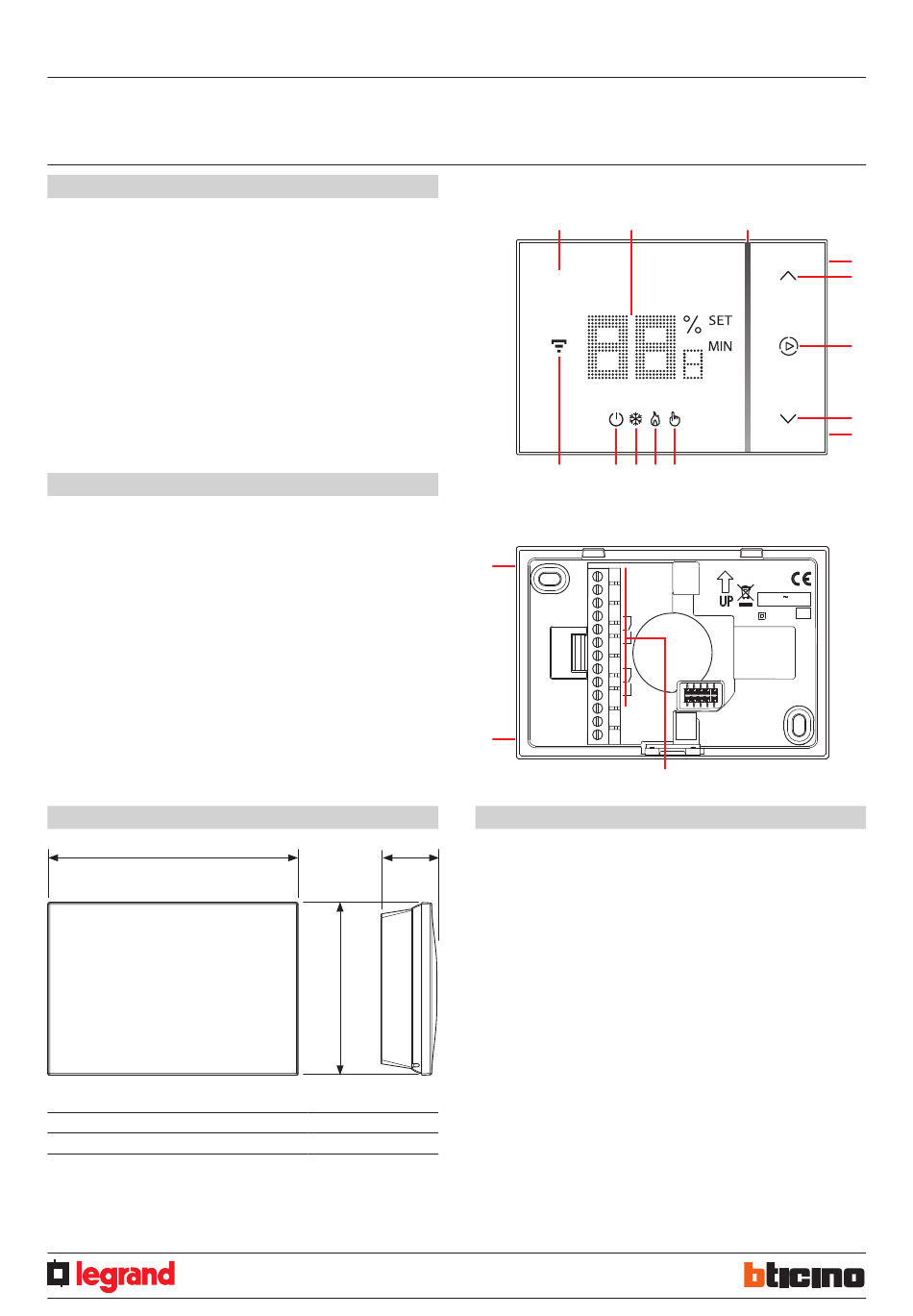

Front view
Rear view
1.
C
2.
3.
4.
5.
6.
7.
B
8.
9.
10.
11.
C
12.
28,1 mm
13.
ST-00000298- EN 05/06/2018
1 2
12 11 10 9
4
L
N
HEATING
NC
C
NO
NC
C
NO
COOLING
7
Legend
Touch screen display
Temperature/humidity display
"Boost" mode indicator
Wi-Fi connection key
Keys for temperature setting
Boost mode activation
Reset key (keep pressed for 10", it restores the factory settings)
Manual mode indicator
ON heating indicator
ON cooling indicator
"OFF thermostat" indicator;
7 °C temperature (antifrost) in heating function;
35 °C temperature (heat protection) in cooling function.
Wi-Fi connection indicator
Connection clamps
X8000W
SX8000W
0 490 37
3
8
110 - 240 V 50/60 Hz
2 W max.
5(2) A
13
4
5
6
5
7
1
