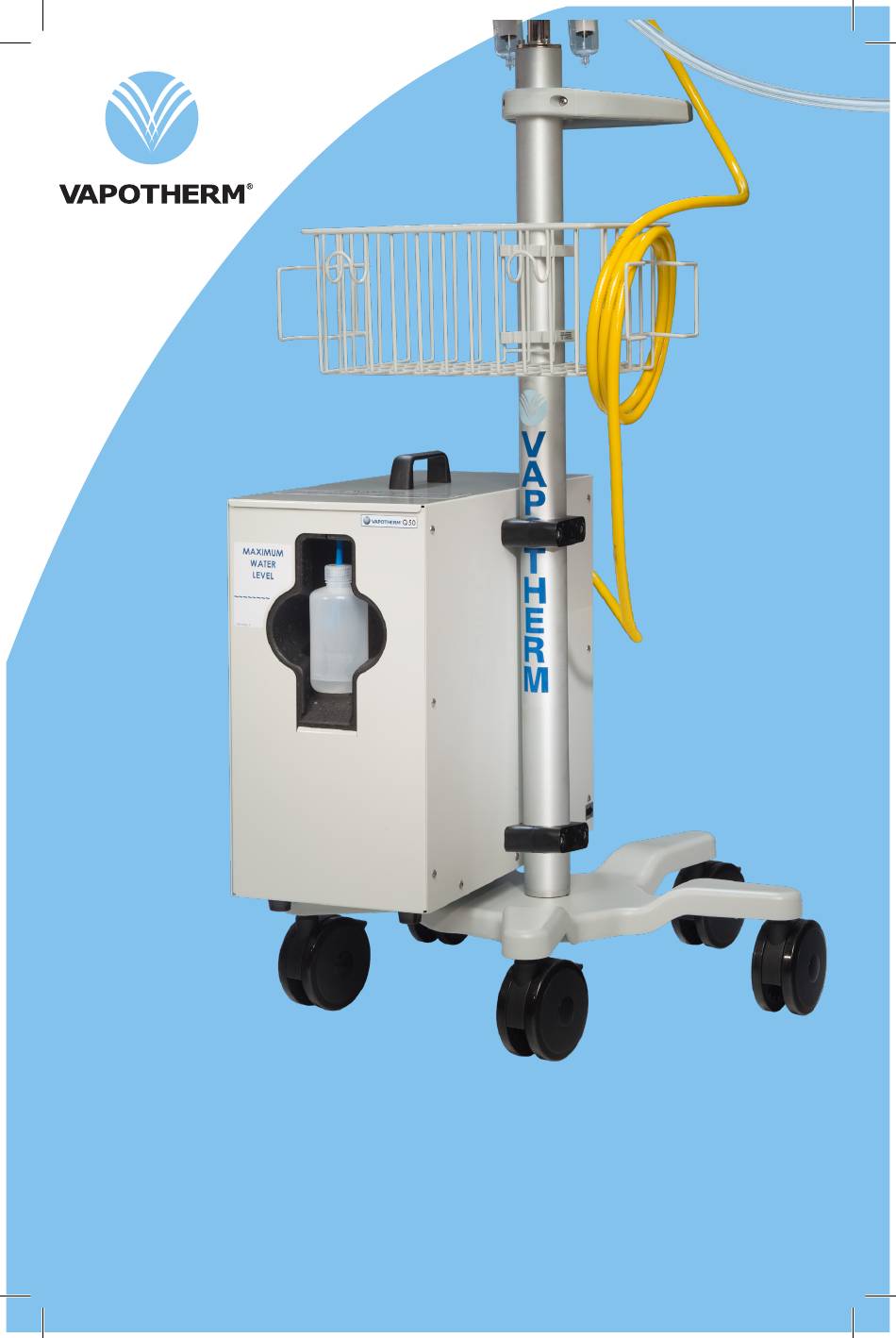

- Page 1 Q50 Compressor Instructions for Use...
-
Page 3: Table Of Contents
Table of Contents Quick Start Guide Intended Use Indications, Warnings and Cautions Primary Indications Contraindications Warnings and Cautions Components and Documents Related Documents Specifications Main Specifications Environmental Requirements Life Expectancy of Compressor Dimensions and Weight High Altitude Considerations Working Principle and Construction Working Principle System Overview Set-Up for Use... -
Page 4: Quick Start Guide
Precision Flow, if oxygen concentrations above 21% are desired, and pressurize the oxygen source. Attach the Q50 power cord to the compressor power cord inlet and plug into the power outlet. Toggle the power inlet switch into the “I” position. The Q50 Compressor will now run. -
Page 5: Intended Use
Intended Use The Vapotherm Q50 air compressor with High Altitude / High Flow Kit supplies air up to 40 L/min in order to support use of the Vapotherm Precision Flow system in the absence of wall or tank supplied air. -
Page 6: Indications, Warnings And Cautions
Indications, Warnings and Cautions Primary Indications The Vapotherm Q50 Air Compressor with High Altitude / High Flow Kit is designed for use only with the Vapotherm Precision Flow system. The compressor is intended to supplement the air needs of the Precision Flow in the event that wall or tank air is not available. -
Page 7: Components And Documents
Components and Documents Item Description • Q50 Compressor • Replaceable Air Intake Filter* • Pole Mounts* • Power Cord • High Altitude / High Flow Kit • Auto-draining water trap assembly • Water Bottle • Water Bottle Holder • Drain Tube *Pole mounts and one air intake filter are installed during manufacturing. -
Page 8: Specifications
10-90% Storage: -10°-+50°C 20-90% CAUTION: If the storage conditions are outside of the stated operating range, the Q50 Compressor must be acclimated to the operating environment for a minimum of 8 hours prior to use. Page 6 3100772 Rev E... -
Page 9: Life Expectancy Of Compressor
Life Expectancy of Compressor The average life expectancy will be 20,000 hours, based upon operating conditions and with maintenance being performed as outlined on page 26. Dimensions and Weight Dimensions: 20.5in(L)X19in(H)X9in(W) Weight: 44 lbs. High Altitude Considerations The specifications provided above are for sea level conditions. The density of air is lower at higher altitudes and has an impact on the flow capacity of the compressor. The following table provides guidance for operating at higher altitudes. - Page 10 FiO2 Maximum Precision Flow Rate (L/min) 1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 Level 50% or Greater Page 8 3100772 Rev E...
-
Page 11: Working Principle And Construction
Working Principle and Construction Working Principle The air compressor starts after being plugged in and the power inlet switch toggled. The power inlet switch is located above the power inlet on the unit. Ambient room air is pulled in through the air intake filter on the unit, past the heat exchange coil and into the compressor. - Page 12 The Rear Panel (Fig. 2) contains: 1. Air Intake Filter 2. Power Inlet Switch and Fuse Drawer 3. Hour Meter 4. Serial Number Label 5. DISS Air Fitting DISS Air Fitting Air Intake Filter Serial Number Label Figure 2 Hour Meter Power Inlet Switch and Fuse Drawer Page 10 3100772 Rev E...
- Page 13 Power Inlet Switch The Vapotherm Q50 compressor makes use of a medical grade power inlet switch. The power inlet switch contains two (2) fuses. • 5ET 8-R (5mm X 20mm, 8A, SLOW BLOW, GLASS FUSE, 250V) WARNING: To avoid risk of electric shock, this equipment must only be connected to supply mains with protective earth.
- Page 14 Air Outlet The air exiting the Q50 compressor is to be used only in conjunction with the Vapotherm Precision Flow system. The compressor output is designed to match the performance needs of the Precision Flow up to 40 L/min and as such has no user adjustable settings or gauges.
-
Page 15: Set-Up For Use
Set-Up for Use Mounting Positions The compressor is intended for use in two configurations, stand-alone on the floor or mounted to a Precision Flow Roll Stand. If the Q50 Compressor is intended to be used stand-alone, no further work is required: the compressor comes with four compressor feet to limit... -
Page 16: Pole Mount
Roll Stand. Improper mounting the Q50 Compressor on the Precision Flow Roll Stand will result in a higher risk of tipping the IV pole unit. The Q50 compressor is only to be mounted on a Precision Flow Roll Stand. Page 14... - Page 17 Instructions for Installation on Precision Flow Roll Stand: 1. Facing the back of the Vapotherm Precision Flow unit and roll stand and ensuring two locking casters are on the right side, place the Vapotherm compressor on the right of the roll stand base.
-
Page 18: Install High Altitude / High Flow Kit
4. Repeat for the lower pole mount. 5. Firmly tighten both pole mounts. Install High Altitude / High Flow Kit 1. Remove the manual draining water trap from the air inlet to the PF. Using a pair of needle nose pliers, push the retaining ring of the air fitting on the back of the Precision Flow unit in towards the Precision Flow. -
Page 19: Connecting The Air Hose
Connecting the Air Hose 1. Push the end of the air hose onto the DISS air fitting on the back of the Q50 Compressor until it reaches the threads. Rotate the collar on the air hose, clockwise, so that the threads engage with the DISS air fitting. Tighten by hand. -
Page 20: Operating Instructions
Operating Instructions Pre-operational Check Prior to starting the Q50 unit, the user should verify the following: Check the power supply Ensure that the power cord is installed into an outlet with the appropriate power requirements. 2. Check that the Precision Flow unit is powered off Disconnect the Precision Flow power. -
Page 21: Starting The Compressor
Running Although the compressor itself utilizes fans to cool the motor and compressor sleeves, the Q50 has been designed with a secondary fan to provide additional cooling to the compressor as well as reduce the moisture content and temperature of the air being provided to the Precision Flow unit. -
Page 22: Shutting Down The System
Due to the inherent design of the Q50 compressor, while the unit is running, any air not demanded by the Precision Flow unit is simply recirculated within the system. -
Page 23: Electromagnetic Compatibility
Electromagnetic Compatibility Guidance and manufacturer’s declaration – electromagnetic emissions The Vapotherm Q50 compressor is intended for use in the electromagnetic environment specified below. The user of the Vapotherm Q50 compressor should assure that it is used in such an environment. Electromagnetic Emissions Test Compliance environment – guidance... -
Page 24: Cleaning And Disinfection
Cleaning and Disinfection This manual is intended only to give general guidelines for the cleaning and disinfection of the compressor. It is the end user’s full responsibility to ensure that any methods and techniques used are effective and conform to the institution’s guidelines and procedures. Part Procedure Comments Do not allow liquids Wipe the exterior to infiltrate beyond... - Page 25 Part Procedure Comments Replace the dry filter into the inlet opening making sure that the filter is completely tucked into the opening and that there are no gaps around the filter. This procedure will help to assure the product’s performance and service life by allowing the maximum amount of clean, dust-free air to be available for cooling the compressor motor. Replace the filter every 4000 hours or if there are any signs of tears, degradation or clogging of the filter material.
- Page 26 WARNING: Cleaning and disinfection should be carried out according to institutional policies as they align with the below information. • Refer to the MSDS (Material Safety Data Sheet) for any agent used for cleaning or disinfection. • Wear personal protective equipment as needed according agent being used.
-
Page 27: Maintenance
Replace the filter element (Vapotherm Part Number 3101397) within the auto-draining water trap every 6 months or if any visible signs of contamination are present. For ordering information please contact Vapotherm Customer Service at 1-866-566-2652. WARNING: Disconnect power supply prior to opening unit. Failure to do so may result in serious injury. -
Page 28: Troubleshooting
Troubleshooting Possible Trouble Fault State Method Cause Air is escaping The gray Gently turn the gray High from the water knob which knob in the direction Altitude / trap seals the of the “S” marking by High Flow water trap hand. - Page 29 Trouble Fault State Possible Cause Method The cooling Compressor has Ensure that fan is running overheated the air intake but not the filter is clean compressor and the air intake and air exhaust are not blocked. Allow the compressor to cool for 20-30 minutes and attempt to restart...
-
Page 30: Disposal
Check the removed within water bottle the compressor reservoir every 8 hours and empty as needed. Disposal The Q50 Compressor should be disposed of in accordance with the user’s defined disposal procedure for electromechanical equipment. Page 28... -
Page 31: Warranty
Q50 device (the “Instructions”). The sole remedy for this warranty is that Vapotherm shall, at its sole option, either refund, repair or replace any part or all of any Q50 device that is defective at no cost to the Customer. Vapotherm shall pay any shipping charges required in repairing or replacing any part or all of a Q50 device during the warranty period. - Page 32 100 Domain Drive Exeter, NH 03833 For customer service, call: 1-855-557-8276 Fax: 603-218-6111 Email: ts@vtherm.com Q50 Compressor Instructions for Use 3100772 Rev E...
