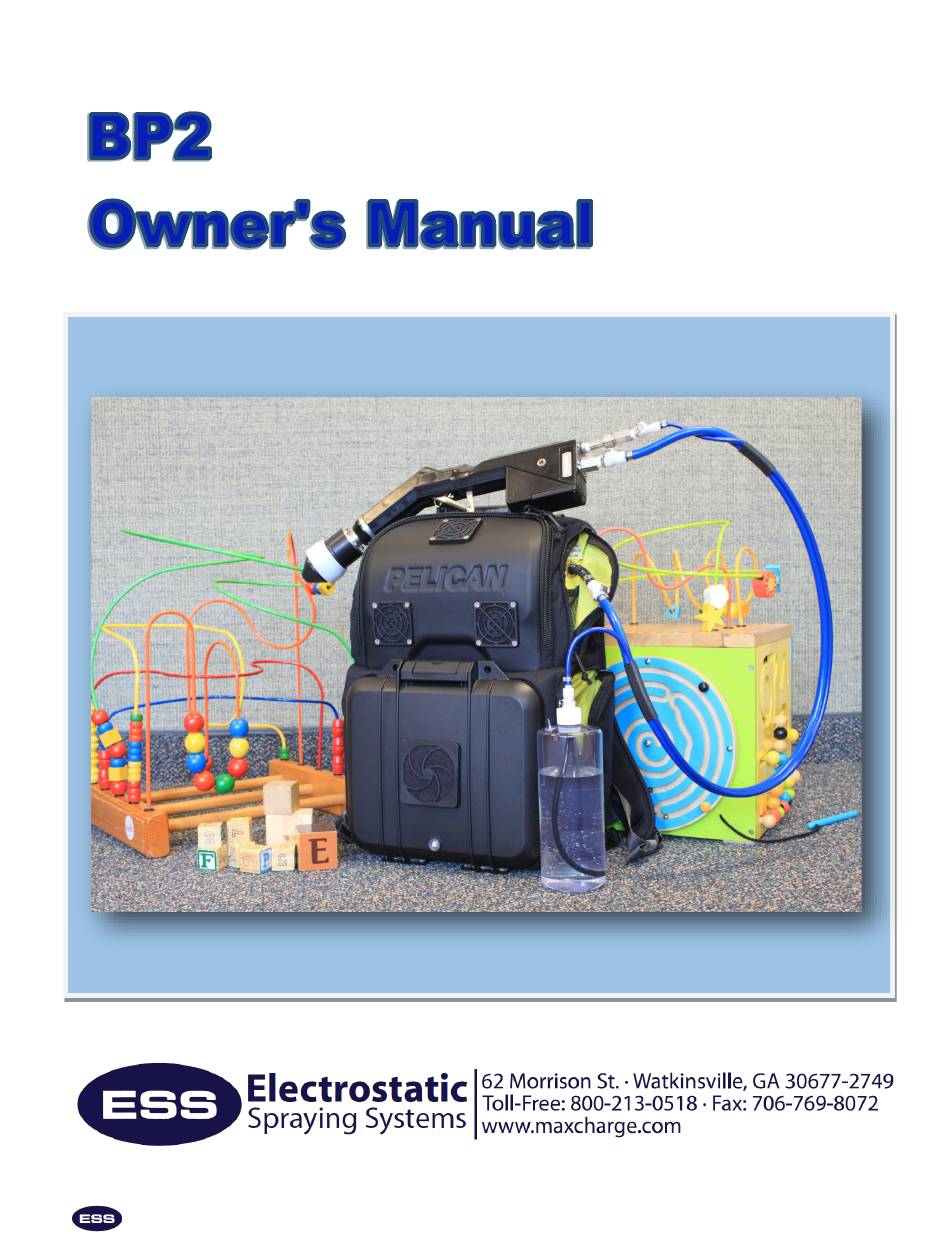

- Page 1 Warning! Your sprayer comes with two unique and different battery chargers. Please see page 14 of this manual for more information. BP2 OPERATOR’S MANUAL...
- Page 2 OWNER’S MANUAL Electrostatic Spraying Systems, Inc. 62 Morrison St. · Watkinsville, GA 30677-2749 Copyright © 2018, Electrostatic Spraying Systems, Inc. – All Rights Reserved This manual was last updated September 2018. BP2 OPERATOR’S MANUAL...
- Page 3 Fax: (760) 769-8072 Email: support@maxcharge.com For your personal records Please take time to read this manual before operating your new ESS BP2 Please record the model and Backpack Sprayer . This manual contains important instructions for the serial numbers of your safe operation of this equipment.
-
Page 4: Table Of Contents
TABLE OF CONTENTS OVERVIEW OF THE ESS MODEL BP2 AIR-ASSISTED ELECTROSTATIC SPRAYER……………………………………………………………...1 WHERE DOES THE SPRAY GO………………………………………………………………………………………………………………………………………….1 SAFE OPERATION OF THE BP2 SPRAYER…………………………………………………………………………………………………………………………2 Operator Responsibility and Safety……………………………………………………………………………………………………………………2 ABOUT THE LOW-VOLTAGE SYSTEM OF THE MAXCHARGE™ SPRAYGUN……………………………………………………………………..3 SAFETY DECALS……………………………………………………………………………………………………………………………………………………………….4 PACEMAKER DISCLAIMER……………………………………………………………………………………………………………………………………………….4 OPERATING INSTRUCTIONS…………………………………………………………………………………………………………………………………………...5 Steps for Operation…………………………………………………………………………………………………………………………………………...5... - Page 5 TABLE OF CONTENTS CHANGING THE FUSE…………………………………………………………………………………………………………………………………………………...14 VOLTAGE CONVERTER: (OPTIONAL)……………………………………………………………………………………………………………………………..15 YEARLY SRPAYGUN SERVICE…………………………………………………………………………………………………………………………………………16 SPRAYGUN RETURN FORM…………………………………………………………………………………………………………………………………………...17 SPRAYGUN SERVICE PARTS…………………………………………………………………………………………………………………………………………..18 TROUBLESHOOTING GUIDE…………………………………………………………………………………………………………………………………………..19 ESS WARRANTY…………………………………………………………………………………………………………………………………………………………….20 BP2 OPERATOR’S MANUAL...
-
Page 6: Overview Of The Ess Model Bp2 Air-Assisted Electrostatic Sprayer

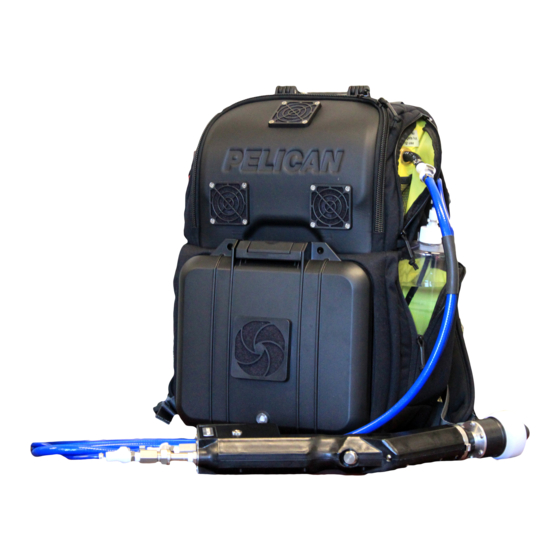

OVERVIEW OF THE ESS MODEL BP2 AIR-ASSISTED ELECTROSTATIC SPRAYER____ Air-assisted electrostatic sprayers produce electrically charged spray drops that are carried to the target in a low pressure, gentle, air stream. The heart of the BP2 Sprayer is the patented MaxCharge™ nozzle. -
Page 7: Safe Operation Of The Bp2 Sprayer
Read the Owner’s Manual. Failure to read the manual is considered a misuse of the equipment. Use the BP2 sprayer ONLY for its intended use as described in this manual. Do not allow a child to operate the BP2 sprayer. Do not allow adults to operate the sprayer without proper instruction. -
Page 8: About The Low-Voltage System Of The Maxcharge™ Spraygun
For operator safety, the power supply for the MaxCharge™ spraygun is entirely separate form the power supply for the sprayer’s compressor. The spraygun is powered by 9-vold batteries in the handle of the BP2 sprayer. This low-voltage charge is not enough to harm people. Some people report feeling a ”tingle” or a slight stinging sensation when the spray from the spraygun falls on their bare skin. -
Page 9: Safety Decals
Since that time, we have taken the ultimate safe approach and recommended that those with pacemakers not operate our electrostatic sprayers. SAFETY DECALS______________________________________________________________________ Appropriate safety decals are placed on ESS equipment in order to alert the operator to possible dangers. Charger for Electrostatic Spraying Systems... -
Page 10: Operating Instructions
7. Apply silicone spray or similar lubricating oil to all quick connect fittings. Detailed instructions on maintaining each of the BP2’s components follow in the next sections. Locating the Sprayer On/Off Switch The BP2 unit has a power cord on left side. BP2 OPERATOR’S MANUAL... -
Page 11: Reference
The batteries are accessed by removing the battery cover, nothing inside the Spraygun shell is user-serviceable. NOTE: Do not open the spraygun shell; Doing so will void the warranty on the spraygun. Brass Bolt Charging Indicator Nozzle Trigger Lock Trigger Battery Housing SEE ALSO: Changing the Batteries Yearly Spraygun Service Spray Technique BP2 OPERATOR’S MANUAL... -
Page 12: Trigger
● Do not pull the case around with the hose ● Use the handles to move the case from one place to another. Should you notice anything wrong with your hose, please contact ESS to have this hose replaced. BP2 OPERATOR’S MANUAL... -
Page 13: Nozzle Assembly
Always rinse the spraygun out with clean soapy water after ever day’s spraying. That is the most important thing you can do to ensure trouble free operation of your BP2 sprayer. By cleaning after each and every working day you will avoid the long-term chemical buildup that eventually causes clogs, poor spray patterns and shortens nozzle life. -
Page 14: Pre-Spray Check
Some brand name additives are COMPLIMENT™, ® UNITE , and BALANCE™. Check with your local chemical supplier for others that are available. ESS recommends the use of NUTRA_SOL cleaner which can be purchased from ESS. Post-Spray Check P/N 1566 After each spray it is essential that hoses and spraygun be flushed with clean soapy water. -
Page 15: Connecting The Hose
Attach blue hose to black fabric hose in upper right pocket Step 2: Insert smaller blue hose connection to top of liquid bottle Step 3: Attach connections to end of hose. Small is liquid and large is air. BP2 OPERATOR’S MANUAL... -
Page 16: Preparing A Mix Tank
An easy way to determine water requirement is to Needed: spray a trial application with water. Put a gallon of clean water in the ESS BP2 tank and thoroughly spray a known area. After Solutions of chemicals in... -
Page 17: Spraying With Your Ess Sprayer
NOTE: When using unfamiliar equipment or chemicals, always test on a small area before treating the entire crop or surface. Do not use a chemical with the ESS sprayer if the label prohibits use in low-volume sprayers. This unit is for light-duty use. -
Page 18: Batteries
4. Replace the battery cover. Screw the two 6-32 x ” Phillips head machine screws back in to secure the battery cover. 5. Charge the spraygun before attempting to use it. Remember to charge the spraygun batteries after every work session. BP2 OPERATOR’S MANUAL... -
Page 19: Battery Charging Operation
If its connected, confirm that is fully charged. If the battery is fully charged, disconnect it and remove it from the BP2. Locate the two screws in the cover panel above the battery and remove them. Locate the yellow fuse holder, open it and inspect the fuse. -
Page 20: Voltage Converter: (Optional)
1. Plug the voltage converter into the 220v wall outlet. 2. Switch the “Inlet Voltage Selector: to 220v on rear of converter 3. Plug the charger for the battery into the 110 output. BP2 OPERATOR’S MANUAL... -
Page 21: Yearly Srpaygun Service
Watkinsville, GA 30677 Yearly service will be conducted within one day of receipt by ESS. If any parts need to be replaced, the owner will be contacted for authorization before replacement. The spraygun will be returned via UPS, COD, or return shipping costs may be invoiced, contingent upon credit approval. -
Page 22: Spraygun Return Form
SRPAYGUN RETURN FORM__________________________________________________________ When returning a spraygun for warranty or repair services to ESS, please pack it securely and include the following form with the your spraygun. We require you to fill out all information completely. With many changes to companies our records may not have the correct contact information. -
Page 23: Spraygun Service Parts
SPRAYGUN SERVICE PARTS_________________________________________________________ BP2 OPERATOR’S MANUAL... -
Page 24: Troubleshooting Guide
When you encounter the problems listed below, use the suggested trouble-shooting methods below. If you cannot solve the problem or have a problem with the spraygun that is not addressed in this manual please contact ESS at (706) 769-0025, or 1-800-213-0518, toll-free. Sprayer Will Not Turn On: Is your sprayer battery charged? •... -
Page 25: Ess Warranty
Electrostatic Spraying Systems, Inc. warrants to the original purchaser of any Electrostatic Spraying Systems equipment shall be free from defects in material and workmanship for a period of one year after date of delivery. The ESS warranty form must be filled out online for verification of purchase. To register please visit: http://maxcharge.com/registration/ Disclaimer of Implied Warranties and Consequential Damages Electrostatic Spraying Systems’...
