QSW-1208-8C
Quick Installation Guide
快速安裝手冊 빠른 설치 설명서
クイックインストールガイド
คู ่ ม ื อ การติ ด ตั ้ ง แบบเร็ ว
Instrukcja szybkiej instalacji
Kurzinstallationsanleitung
Guida di installazione rapida Pika-asennusopas
Краткое руководство по установке
Snabbinstallationsguide
Guia de Instalação Rápida
Hurtiginstallasjonsveiledning
Hurtig installationsvejledning
Pika-asennusopas Installatiegids
Snelle Installatiegids
Guía de Instalación Rápida
Hızlı Kurulum Kılavuzu
Gyors telepítési útmutató
Průvodce rychlou ins talací
快速安装指南
www.qnap.com
Advertisement
Table of Contents
Related Manuals for QNAP QSW-1208-8C
Summary of Contents for QNAP QSW-1208-8C

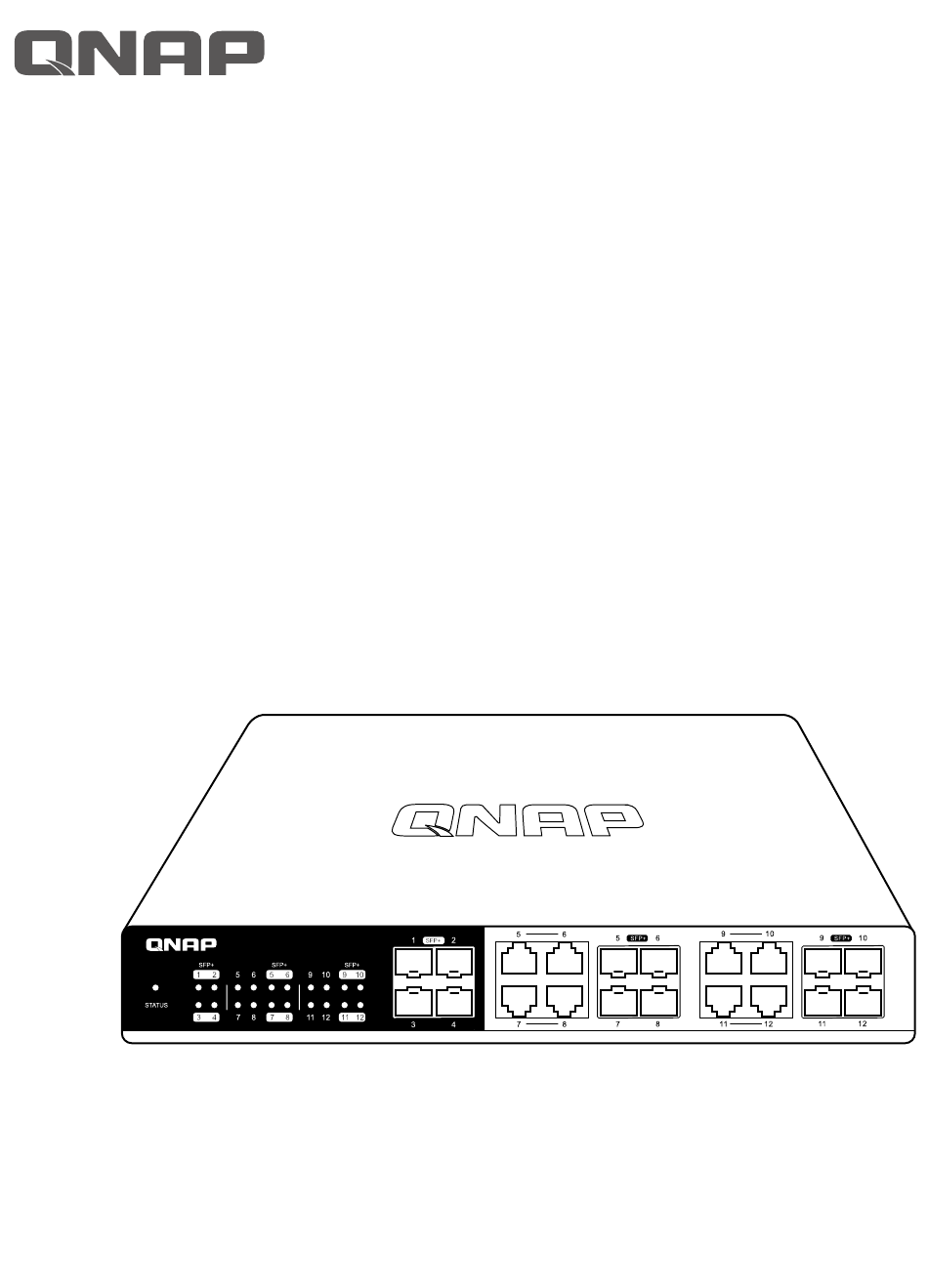

- Page 1 QSW-1208-8C Quick Installation Guide Guía de Instalación Rápida 快速安裝手冊 빠른 설치 설명서 Hızlı Kurulum Kılavuzu クイックインストールガイド คู ่ ม ื อ การติ ด ตั ้ ง แบบเร็ ว Gyors telepítési útmutató Instrukcja szybkiej instalacji Průvodce rychlou ins talací Kurzinstallationsanleitung 快速安装指南...
-
Page 2: Package Contents
Package Contents QSW-1208-8C Rackmount brackets Foot pads Bracket screws Power cord... -
Page 3: Hardware Overview
Hardware Overview Front Panel Ports SFP+ Ports 1-4 SFP+ ports support 10 Gbps connections. SFP+/RJ45 Combo Ports 5-12 Each port number has two types: SFP+ and RJ45. Users may select either one to connect. - Page 4 Front Panel LED Status ▪ Off : System down. ▪ Green : System is ready for use. Flashing indicates bootup in progress. ▪ Amber: System warning, e.g. high temperature or fan error. SFP+ Ports 1-12 ▪ Off : No link. ▪...
- Page 5 Back Panel AC Input Power Maintenance Port K-Slot Side Panel Bolt Hole Bolt Hole...
-
Page 6: Hardware Installation
Hardware Installation Horizontal Surface Place four foot pads at the bottom of the QSwitch. Mounting in a Rack Attach the rackmount brackets to the QSwitch using six bracket screws. Attach the QSwitch to the rack using two mounting screws. - Page 7 Connecting RJ45 Connect an Ethernet cable from your computer or host system to any RJ45 port of the QSwitch. Connect Ethernet cable from your device to other RJ45 ports of the QSwitch. Combo Port Instruction You can only choose either SFP+ or RJ45 for connection. RJ45 will have higher priority if both connections are used.
-
Page 8: Connecting Power
Connecting Power Connect the power cord to the power port of the QSwitch. Connect the other end of the power cord to a power outlet. Connecting SFP+ Plug a compatible fiber module into any SFP+ port of the QSwitch. Connect an optical fiber cable to the fiber module. Then connect the other end of the cable to another fiber device. -
Page 9: Specifications
Specifications Model QSW-1208-8C Dimensions (H x W x D) 43 x 285 x 233 mm Net weight 2.15 kg Supported voltage range 100 to 240VAC Switching capacity 240Gbps SFP+ ports Combo ports (SFP+/RJ45) Operating temperature 0 - 40˚C / 32~104°F Relative humidity 5~95% Non-condensing, wet bulb: 27˚C... - Page 10 Modifications: Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
- Page 12 Printed in Taiwan P/N: 51000-024465-RS...
