Summary of Contents for Phonic DB2

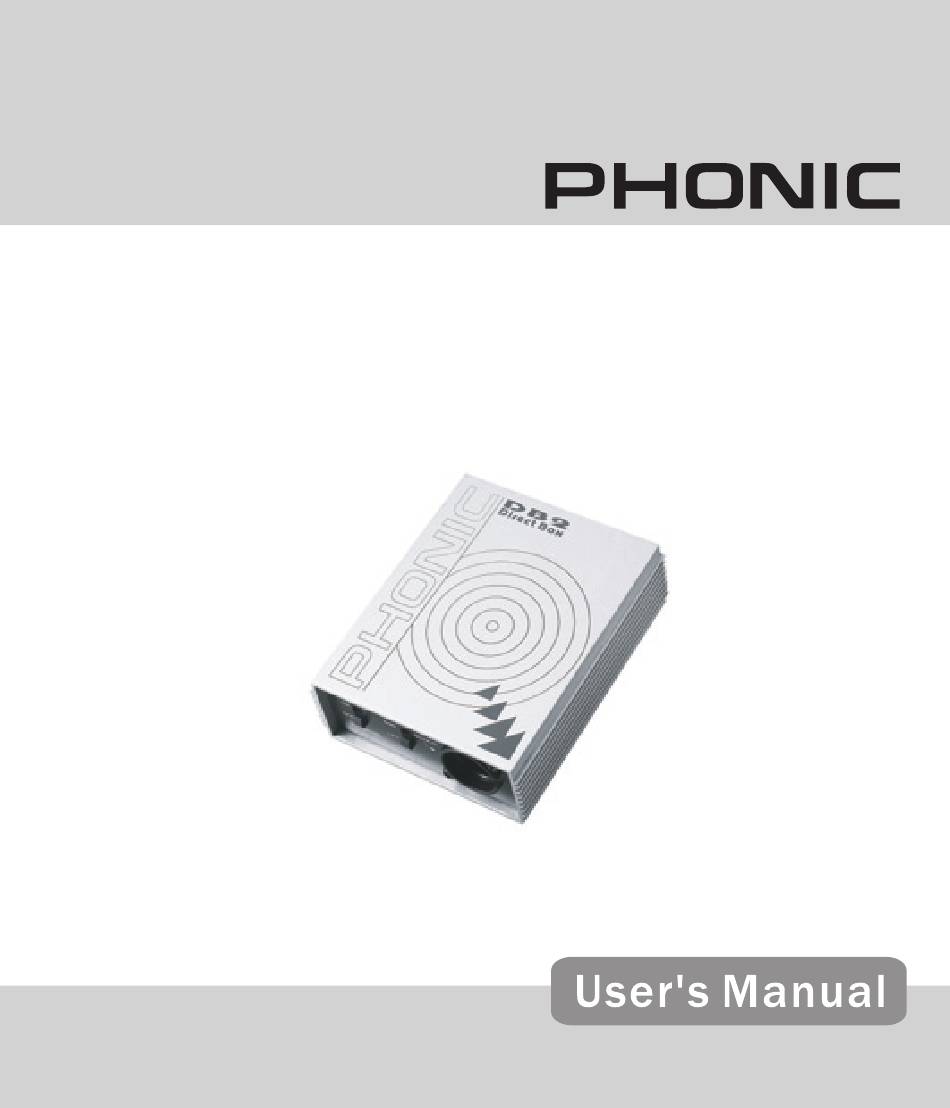

- Page 1 PROFESSIONAL MULTIFUNCTIONAL DIRECT BOX ENGLISH...
-
Page 2: Safety Precautions
This unit contains no user-serviceable parts. Refer all service needs to a qualified service engineer through a Phonic dealer. Keep this unit clean by using a soft dry brush and occasionally wiping it with a damp cloth. - Page 3 PROFESSIONAL MULTIFUNCTIONAL DIRECT BOX INTRODUCTION..............4 FEATURES................4 GETTING STARTED...............4 CONTROL DESCRIPTION.............5 SPECIFICATIONS..............8 Page 3 DB2 USER’S MANUAL PHONIC CORPORATION...
-
Page 4: Getting Started
In order to get the best performance from your DB2, please read this user’s manual carefully, and retain it for later reference. Please take some time and get familiar with your new best friend by reading this manual, which we believe would be beneficial to you. -
Page 5: Control Description
1 PAD Switch Use this switch to increase the oper- Connect directly to your guitar amplifier ating range of DB2. When set at or an active speaker with this output. -20dB, the input signal will be atten- uated by -20dB; the signal will be reduced by -40dB when you set it at -40dB. -
Page 6: Ground / Lift Switch
OFF if you wish to use phantom power. 5 GROUND / LIFT Switch If you set the switch at LIFT, DB2 will automatically break the ground connection between input and output, which would eliminate the ground loops or humming. - Page 7 CONTROL DESCRIPTION CONTROL DESCRIPTION 7 BATTREY REPLACEMENT Use a coin to open the cover and install a new battery. Page 7 DB2 USER’S MANUAL PHONIC CORPORATION...
-
Page 8: Specifications
99 dB Unbalanced 1/4” Inputs Phone Jack Outputs Balanced XLR-M ON/OFF, Ground/Lift, Controls Pad Attenuation Switch (-20 dB~-40 dB) 9V Battery or Phantom Power Supply Power(+48VDC) Dimensions(WxHxD) 81.6x33.6x103.6mm (3.2”x1.32”x4”) Net Weight 339 g(0.75 lbs) Page 8 DB2 USER’S MANUAL PHONIC CORPORATION...
