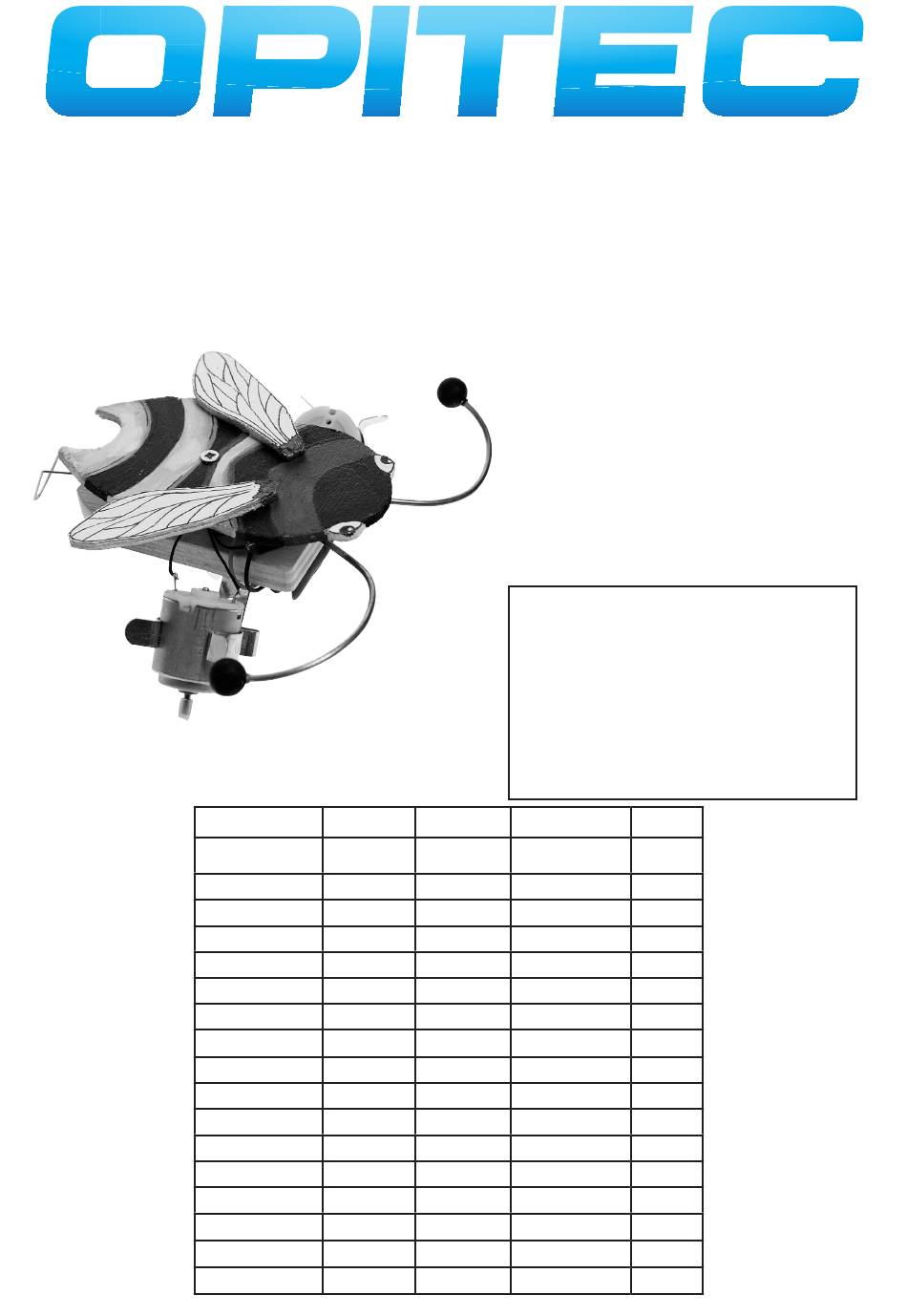

R O B O - B e e
PARTS LIST
Quantity
Plywood
1
Plywood
1
Flat strip 9 holes 1
Wire
2
Wire
1
Motor
2
Slide switch
1
Switch
2
Spring steel clip
2
Battery holder
1
Tube
1
Tube
1
Wooden disc
1
Cable
1
Wooden ball
2
Fixing materials
108.948
Necessary tools
Scissors
Sellotape,All purpose glue
Side cutters
Pliers, round nose pliers
Fretsaw
Drill ø 3 mm
Bradawl
Screwdriver, spanner 5,5
Cosshead screwdriver
Paint & Colour
The OPITEC range of projects is not intended
as play toys for young children.They are tea-
ching aids for young people learning the skills
of Craft, Design and Technolo- gy.These pro-
jects should only be undertaken and tested
with the guidance of a fully qualified adult. The
finished projects are not suitable to give to
children under 3 years old. Some parts can be
swallowed. Dan- ger of suffocation!
Size in mm Description
80x50x10
Base
120x80x3
Cover
90x10
Motor holder
Ø 2 x 250
Feelers
Ø 1 x 100
Drive
Ø24 x 27
motor
On/OFF Switch 7
Change over
17-22
Motor fixing
Ø3/1x 10
Drive
Ø6/4x 20
Drive
Ø15
Cover
1000
Feeler
Ø10
Feeler
Screws,nuts
Please Note
Part no.
1
2
3
4
5
6
8
9
10
11
12
13
14
15
1
Advertisement
Related Manuals for Opitec ROBO-Bee
Summary of Contents for Opitec ROBO-Bee
- Page 1 Screwdriver, spanner 5,5 Cosshead screwdriver Paint & Colour Please Note The OPITEC range of projects is not intended as play toys for young children.They are tea- ching aids for young people learning the skills of Craft, Design and Technolo- gy.These pro- jects should only be undertaken and tested with the guidance of a fully qualified adult.
- Page 2 INSTRUCTIONS 1. Trace the patterns on to the base (1/ page 7) Trace all the parts, mark the postion of the screws, holes on both the top and bottom of the parts-use a badawl, saw out / drill the hole for the switch, ,saw out all the parts. Sand the curves and the reamaining the parts 2.
- Page 3 INSTRUCTIONS 6. Mark out the middle of the 1mm (5)wire as shown. Bend the wire to the V shape of the pattern( Page 5) as shown Use a vice or pliers to bend both of the angles- check against the pattern 7.
- Page 4 10. Insert the battery (Watch the polarity!) and check the circuit connections To begin with the ROBO-Bee will travel go forwards.until it hits an object, the switch contact will be made, and the motors will change over and the Robo bee will reverse until the switch is free again.
- Page 5 11. Once it works you can start on the decoration Use the pattern as a guide. Finally add the cover and fit with screws on to the wooden disc Ready! Bending patterns Scale 1:1 2mm-wire 1mm-wire E108948#1...
- Page 6 E108948#1...
- Page 7 Pattern for the base Scale 1:1 Pattern for the top Scale 1:1 Pattern Flat strip Scale 1:1 E108948#1...
