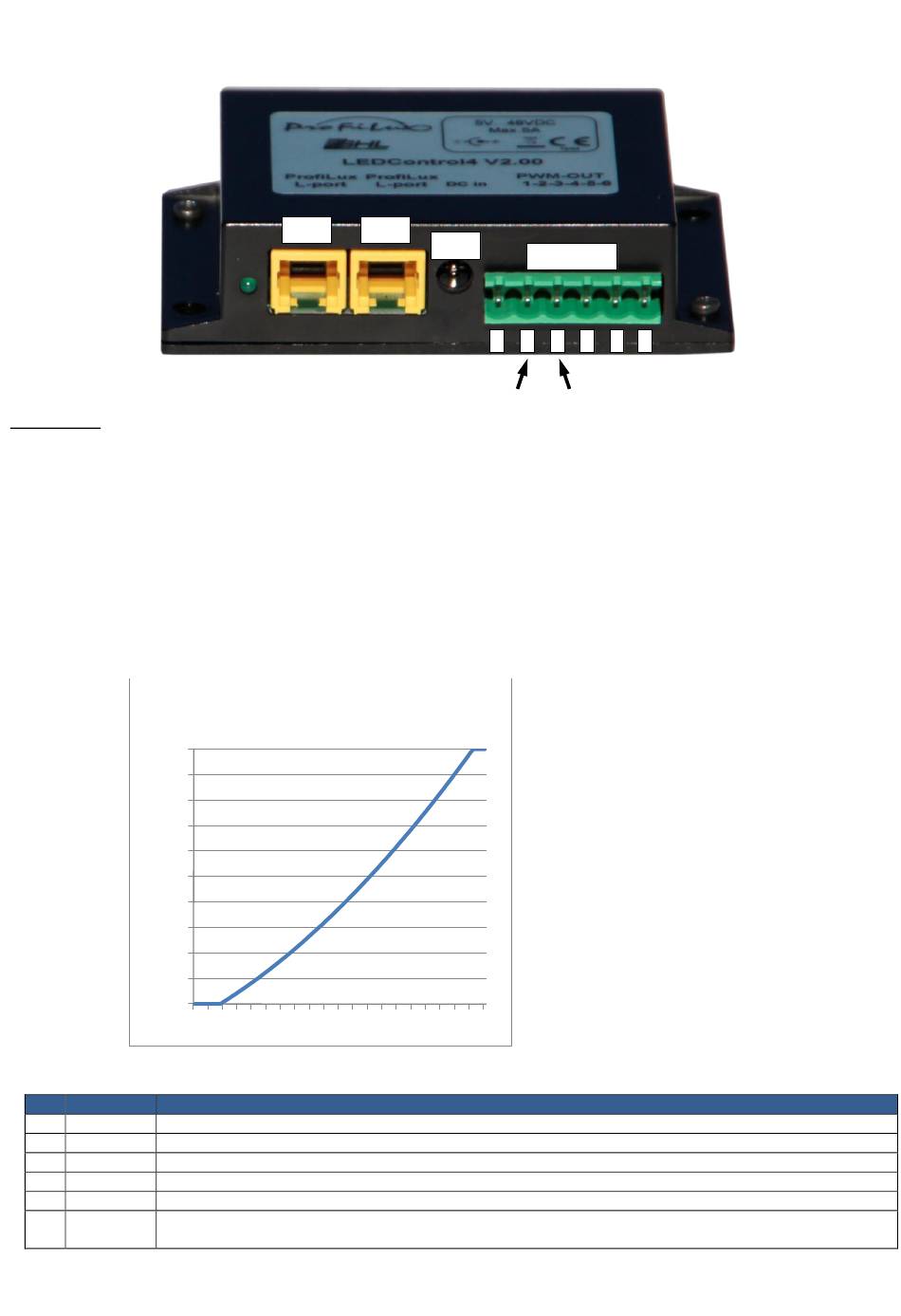

GHL LEDControl4 V2 Manual

Electronic controller for LED-lamps LEDControl4 V2
Characteristics
LEDControl4 V2 converts 4 analog input voltages into 4 pulse width modulated (PWM) signals (Open-Drain) and includes drivers for the direct
connection of LEDs (max. 5 A in total). Furthermore with LEDControl4 external LED-drivers with PWM-input can be controlled. In order to
protect the connected ProfiLux from possible interferences, the input side is galvanically isolated from the output side through optocouplers.
In the delivery status, for 0% PWM the transistors are insulating (output is high-resistance), for 100% PWM the output is permanently pulled to
minus potential. The polarity of the PWM can be inverted. Through this you achieve that for 0% PWM the outputs are permanently pulled to
minus potential and for 100% PWM the outputs are high-resistance. Through a new inversion you can switch again to the original state.
LEDControl4 can produce „flashes" during a thunderstorm simulation in ProfiLux. During a flash the PWM-signal is set for a short time to 50%,
75% or 100%, independently from the belonging analog input. Flashes can be output at channel 3 and channel 4, the flashing behavior can be
set, see below. Not all L-ports are suited for the generation of a flash. Presently the onboard interfaces of ProfiLux and the interfaces in the
ExpansionBox support the flash function.
According to the connection, LEDControl4 can be used for the operation with LED-lamps or with LED-drivers.
Input voltage (control voltage of L-ports) vs. PWM-output:
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
Assignment of screw terminal PWM-OUT:
Pin Signal Description
1 LED + Here the plus potential of the power supply applies, the + line of the LEDs of LED-lamps is connected here
2 LED PWM 4 Here the PWM of the fourth channel (L4, right L-port) applies, at this channel a flash is always generated
3 LED PWM 3 Here the PWM of the third channel (L3, right L-port) applies, at this channel the flash function can be disabled
4 LED PWM 2 Here the PWM of the second channel (L2, left L-port) applies
5 LED PWM 1 Here the PWM of the first channel (L1, left L-port) applies
6 LED - Here the minus potential of the power supply applies, for LED-drivers here the ground of the PWM-inputs are
connected
L1L2
PWM / Uin [V]
0 1 2 3 4 5
L3L4
DCin
PWM-OUT
1 2
Pins with flash function
6 7 8 9 10
3 4 5 6
