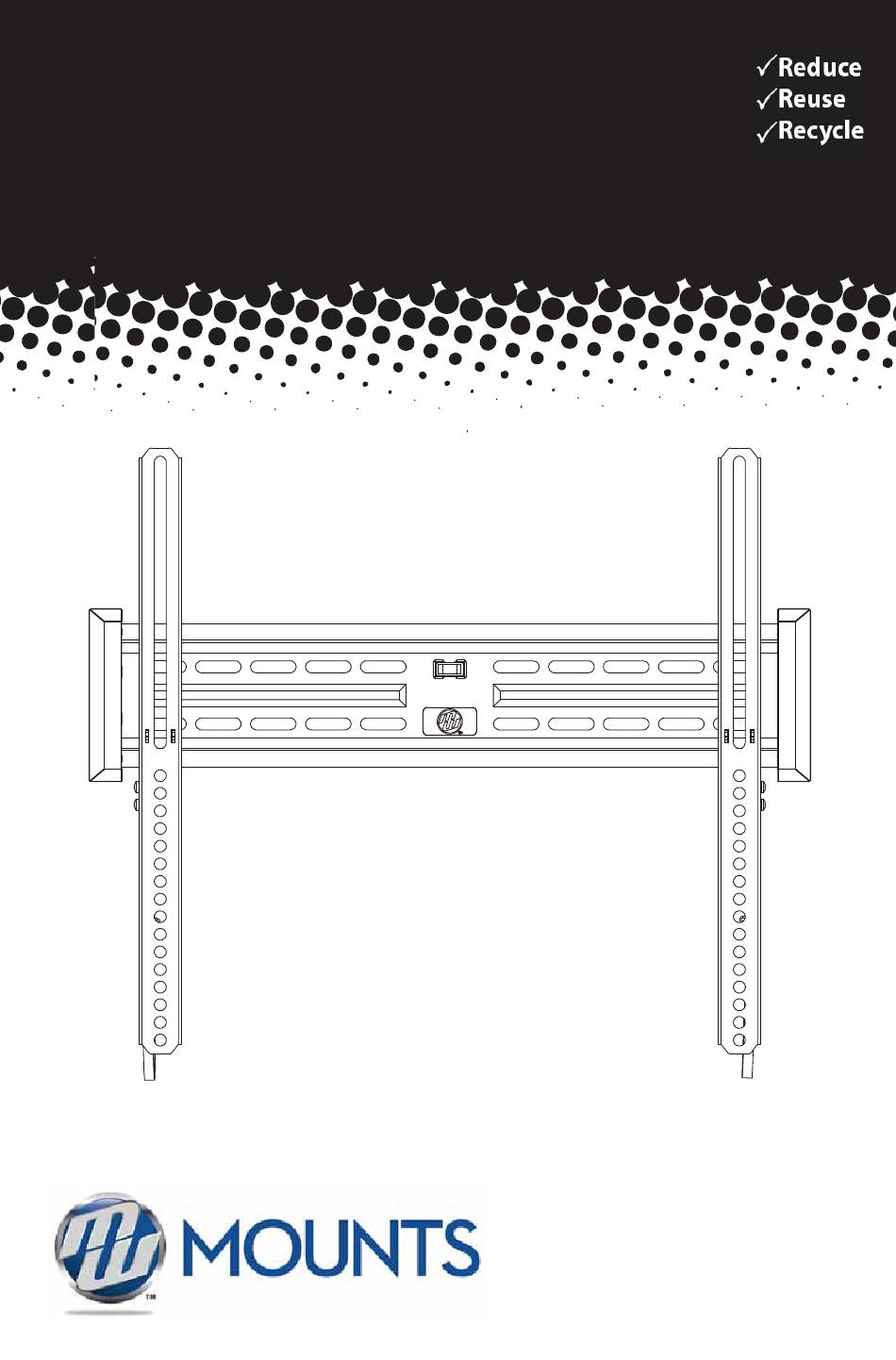

Medium & Large Fixed Flat Panel Mount
Low Profile Flat Panel Fixed Mount
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D' INSTRUCTIONS
CAUTION: DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY. SERIOUS
INJURY OR PROPERTY DAMAGE MAY
OCCUR!
Flat Mount: Medium (M) / Large (L)
Max Screen Size: 60" (M) / 90" (L)
Max Weight: 120LBS (M) / 175LBS (L)
V2
P1
Advertisement
Related Manuals for MW MOUNTS MW175F74
Summary of Contents for MW MOUNTS MW175F74
- Page 1 Medium & Large Fixed Flat Panel Mount Low Profile Flat Panel Fixed Mount INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’ INSTRUCTIONS CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! Flat Mount: Medium (M) / Large (L) Max Screen Size: 60”...
- Page 2 QUESTIONS? NEED HELP? PLEASE CALL ¿NECESITA AYUDA? LLÁMENOS. BESOIN D’AIDE? VEUILLEZ APPELER 1-602-674-1000 DISCLAIMER – WARNING INFORMATION Disclaimer –. MW PRODUCTS has extended every effort to ensure to accuracy and completeness of this manual. However, MW PRODUCTS does not claim that the information covers all installation and or operational variables.
- Page 3 HARDWARE PRODUCT NUMBERS M4 x 12 M5 x 12 M6 x 15 M8 x 15 M4 x 25 M5 x 25 M6 x 25 M8 x 25 SQUARE WASHER SPACER STEEL WASHER STEEL WASHER 8 mm LAG ANCHOR BOLT PRODUCT COMPONENT PARTS Flat Panel Mounting Pattern (W X H) Minimum: 100mm x 100mm (Medium and Large) Maximum: 400mm x 400mm (Medium)
- Page 4 STEP 1- FLAT BACK FLAT PANEL (UNIVERSAL VERTICAL RAILS) Connect Universal Vertical Rails to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1- CURVED BACK FLAT PANEL (UNIVERSAL VERTICAL RAILS) Connect Universal Vertical Rails to flat panel Spacers can also be used to Conecte el adaptador al monitor provide clearance for cables...
- Page 5 STEP 1C- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television.
- Page 6 STEP 2- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO STEP 3) STEP 2- CENTER UNIVERSAL MONITOR PLATE Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE WITH INCLUDED BUBBLE LEVEL AND...
- Page 7 STEP 2C- MOUNT WALL PLATE TO WALL Mount wall plate Coloque la placa de pared Montez la plaque murale 16” STUD (Medium Fixed Mount) 16” or 24” STUD (Large Fixed Mount)
- Page 8 STEP 3- SOLID CONCRETE INSTALLATION Use wall plate to mark mounting locations/ drill pilot holes Use la placa de pared para marcar el lugar donde se realizará la instalación Utilisez la plaque murale pour marquer l'emplacement de montage Level Solid Concrete Drill Bit Drill Pilot Hole DRILL BIT...
- Page 9 STEP 3C- SOLID CONCRETE INSTALLATION. Mount wall plate Coloque la placa de pared Montez la plaque murale Insert wall Anchors gently into concrete wall with hammer if necessary Hammer...
- Page 10 STEP 4A- ATTACH PANELTO WALL PLATE & ADJUST TILT ANGLE Hang vertical rails with monitor attached Cuelgue con el monitor adherido. Accrochez avec le moniteur installé. Flat Panel Vertical Rails Pull spring lock cord down and gently push bottom of panel to wall and release...
- Page 11 Congratulations! Installation complete WARRANTY INFORMATION This warranty applies to US Residents who purchase from an authorized MW PRODUCTS Dealer. MW PRODUCTS products are covered against defects in materials and workmanship for 5 years. MW PRODUCTS will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from MW PRODUCTS will result in void of warranty.
- Page 12 PAGE INTENTIONALLY LEFT BLANK...
