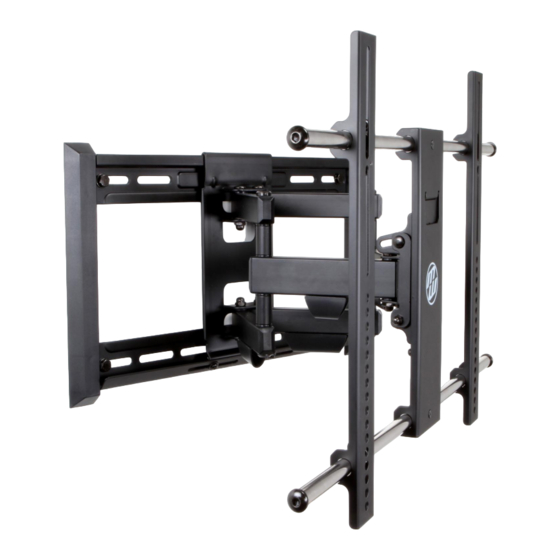

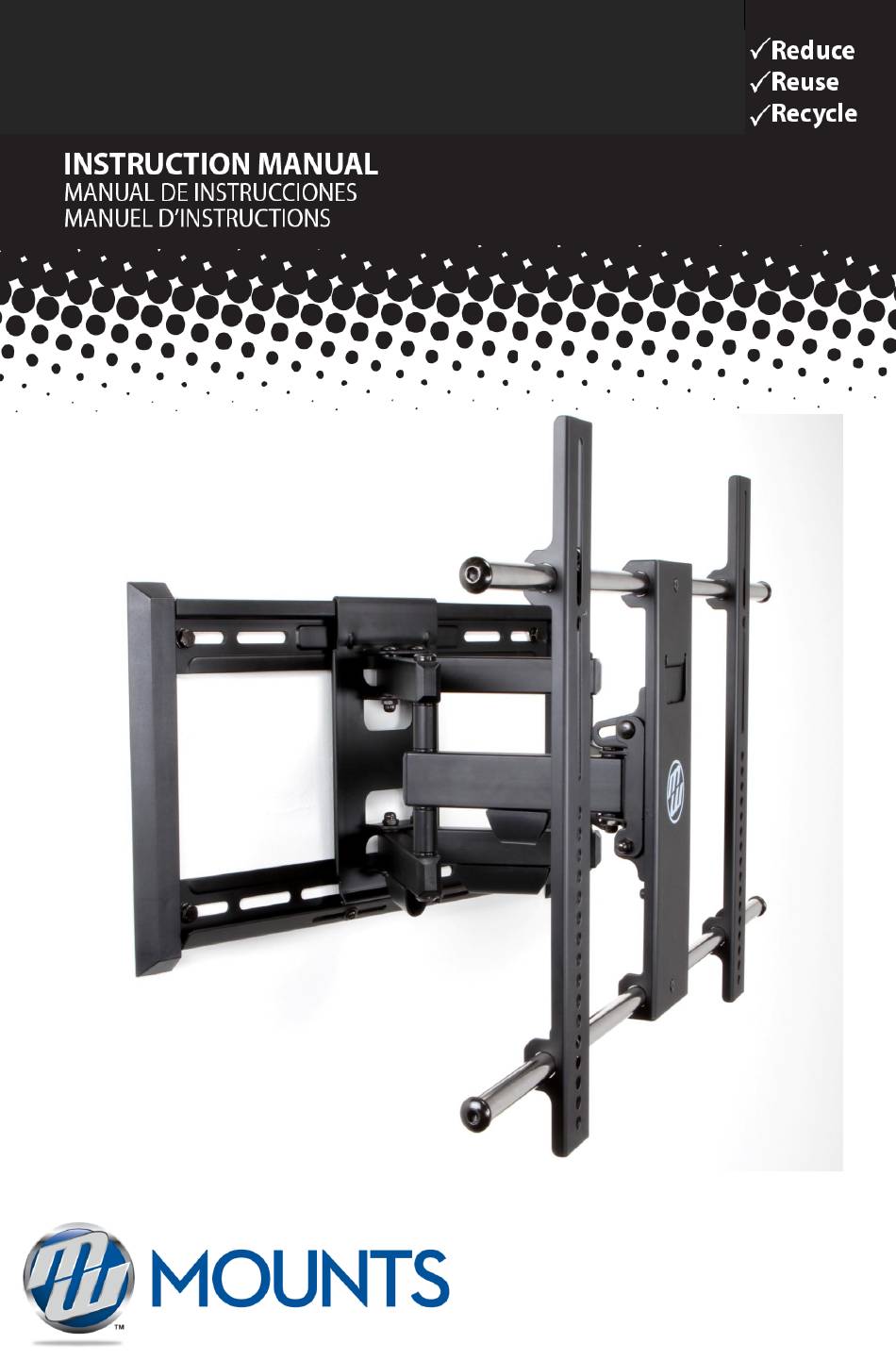

- Page 1 Large Full Motion Mount Low Profile Full Motion Flat Panel Mount CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! Large Full Motion Mount Max Screen Size: 70” Max weight: 125lbs...
- Page 2 QUESTIONS? NEED HELP? PLEASE CALL ¿NECESITA AYUDA? LLÁMENOS. BESOIN D’AIDE? VEUILLEZ APPELER 1-602-674-1000 DISCLAIMER – WARNING INFORMATION Disclaimer – MW PRODUCTS™ has extended every effort to ensure to accuracy and completeness of this manual. However, MW PRODUCTS does not claim that the information covers all installation and or operational variables.
- Page 3 HARDWARE PRODUCT NUMBERS M4 x 12 M5 x 12 M6 x 15 M8 x 15 M4 x 25 M5 x 25 M6 x 25 M8 x 25 SQUARE WASHER SPACER STEEL M6 X 5/8” SECURITY WASHER ACORN ALLEN WRENCH WASHER 8 mm LAG WRENCH ANCHOR...
- Page 4 Drawings below show the Large Full Motion Mount attached to the left and right of the corner. Depending on the desired angle for viewing, please review to determine which wall to mount your panel.
- Page 5 STEP 1- FLAT BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur SQUARE WASHER STEP 1- CURVED BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur SQUARE...
- Page 6 STEP 1- CENTER UNIVERSAL MONITOR PLATE Monitor Plate must be centered (horizontal plane) on back of flat panel STEP 1- SECURE UNIVERSAL MONITOR PLATE VERTICAL RAILS Secure vertical rails to horizontal chrome rod on Monitor Plate with pre-installed screws.
- Page 7 STEP 2- PRIOR TO EXTENDING ARMS REMOVE ARM ASSEMBLY FROM WALL PLATE Prior to extending arms; • Remove 2 Philips screws at top of Arm Assembly . • Remove 2 security screws at bottom of Arm Assembly with security Allen wrench. Note- 2 Philips screws and 2 security screws will be used in Step 4 to reattach arm assembly to wall mount.
- Page 8 STEP 3A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3B) Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
- Page 9 STEP 3B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...
- Page 10 STEP 4- ATTACH MOUNT ASSEMBLY TO WALL PLATE Position Arm Assembly to desired lateral position on wall plate for optimum placement of Flat Panel. Secure Arm Assembly to Wall plate using screws removed from Step 2. STEP 5- ATTACH UNIVERSAL MOUNT PLATE TO ARM ASSEMBLY & WALL PLATE Heavy, Assistance Required...
- Page 11 SECURE MONITOR PLATE TO ARM ASSEMBY Secure Acorn Nut and Washer on Monitor Plate to Arm Assembly (snug tension only) M6 Wrench M6 Washer M6 Acorn Nut ADJUST TILT TENSION/ POST INSTALLATION LEVEL Adjust tilt mechanism tension with ratchet handle Built-in level feature for post installation correction lever...
- Page 12 Congratulations! Installation complete WARRANTY INFORMATION This warranty applies to US Residents who purchase from an authorized MW PRODUCTS™ Dealer. MW PRODUCTS are covered against defects in materials and workmanship for 5 years. MW PRODUCTS will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from MW PRODUCTS will result in void of warranty.
