Summary of Contents for Mars Comfort-Aire Century A-VMH09CU-1

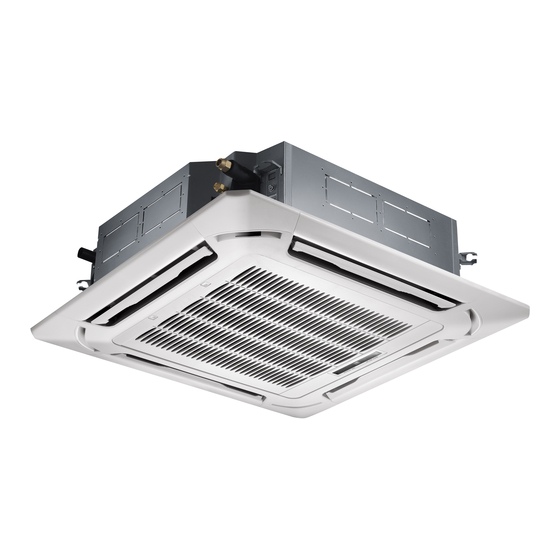

- Page 1 REMOTE CONTROL MANUAL Cassette Unit Models A-VMH09CU-1 A-VMH12CU-1 A-VMH18CU-1 A-VMH24CU-1 517.787.2100 • www.marsdelivers.com...
-
Page 2: Table Of Contents
Remote Control Manual - A-VMH09,12,18,24CU-1 CONTENTS Remote Control Specifications............. Operation buttons ................ Indicators on LCD ................How to use the buttons ..............Auto operation................. Cooling/Heating/Fan operation............Dehumidifying operation ............... Timer operation................Handling the remote control ............NOTE: • Button design is based on typical model and might be slightly different from the actual one you purchased;... -
Page 3: Remote Control Specifications
Remote Control Manual - A-VMH09,12,18,24CU-1 Remote Control Specifications Model 17317000A06740 Rated Voltage 3.0V (Two AAA dry batteries) Signal Receiving Range 26.25 ft/8 m Environment 23°F~140°F ON/OFF SILENCE TIMER MODE TEMP TIMER SLEEP SWING DIRECT FOLLOW TURBO SELF CLEAN... -
Page 4: Operation Buttons
Remote Control Manual - A-VMH09,12,18,24CU-1 Operation of buttons ON/OFF Button This button turns the air conditioner ON and OFF. MODE Button Press this button to modify the air conditioner mode in a sequence of following: HEAT AUTO COOL NOTE：Please do not select HEAT mode if the machine you purchased is cooling only type. - Page 5 Remote Control Manual - A-VMH09,12,18,24CU-1 Operation of buttons UP Button ( Push this button to increase the indoor temperature setting in 1 F increments to 86 DOWN Button ( Push this button to decrease the indoor temperature setting in 1 F increments to 62 NOTE: Temperature control is not available in Fan mode.
- Page 6 Remote Control Manual - A-VMH09,12,18,24CU-1 Operation of buttons TIMER OFF Button Press this button to initiate the auto-off time sequence. Each press will increase the auto- - timed setting in 30 minute increments. When the setting time displays 10.0, each press will increase the auto-timed setting 60 minute increments.
-
Page 7: Indicators On Lcd
Remote Control Manual - A-VMH09,12,18,24CU-1 Indicators on LCD Mode display Information is displayed when the remote control is powered up. AUTO COOL HEAT Displayed when data transmitted. Displayed when remote control is ON. Battery display (low battery detection). Not available for this unit. Displayed when TIMER ON time is set. -
Page 8: How To Use The Buttons
Remote Control Manual - A-VMH09,12,18,24CU-1 How to use the buttons Auto operation Ensure power is available. The OPERATION indicator on the display panel of the indoor unit starts flashing. 1. Press the MODE button to select Auto. 2. Press the UP/DOWN button to set the desired temperature. -
Page 9: Dehumidifying Operation
Remote Control Manual - A-VMH09,12,18,24CU-1 How to use the buttons Dehumidifying operation Ensure power is available. The OPERATION indicator on the display panel of the indoor unit starts flashing. 1. Press the MODE button to select DRY mode. 2. Press the UP/DOWN buttons to set the desired temperature. -
Page 10: Timer Operation
Remote Control Manual - A-VMH09,12,18,24CU-1 Timer operation Press the TIMER ON button to set the auto-on time of the unit. Press the TIMER OFF button to set the auto-off time of the unit. To set the Auto-on time. 1. Press the TIMER ON button. The remote control shows TIMER ON, the last Auto-on setting time and the signal "H"... - Page 11 Remote Control Manual - A-VMH09,12,18,24CU-1 CAUTION • When you select the timer operation, the remote control automatically transmits the timer signal to the indoor unit for the specified time. Therefore, keep the remote control in a location where it can transmit the signal to the indoor unit properly. •...
- Page 12 Remote Control Manual - A-VMH09,12,18,24CU-1 TIMER OFF (Auto-off Operation) The TIMER OFF feature is useful when you want the unit to turn off automatically after you go to bed. The air conditioner will stop automatically at the set time. Example: Stop To stop the air conditioner in 10 hours.
- Page 13 Remote Control Manual - A-VMH09,12,18,24CU-1 TIMER ON → TIMER OFF (Off → Start → Stop operation) This feature is useful when you want to start the air conditioner before you wake up and stop it after you leave the house. Example: Start To start the air conditioner 2 hours after setting,...
-
Page 14: Handling The Remote Control
Remote Control Manual - A-VMH09,12,18,24CU-1 Handling the remote control Location of the remote control. Use the remote control within a distance of 26.25 ft/8 meters from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote control to the indoor unit. - Page 15 Remote Control Manual - A-VMH09,12,18,24CU-1 Replacing batteries The following cases signify exhausted batteries. Replace old batteries with new ones. Receiving beep is not emitted when a signal is transmitted. Indicator fades away. The remote control is powered by two AAA dry batteries housed in the lower rear part and protected by a cover.
- Page 16 1/2018...
