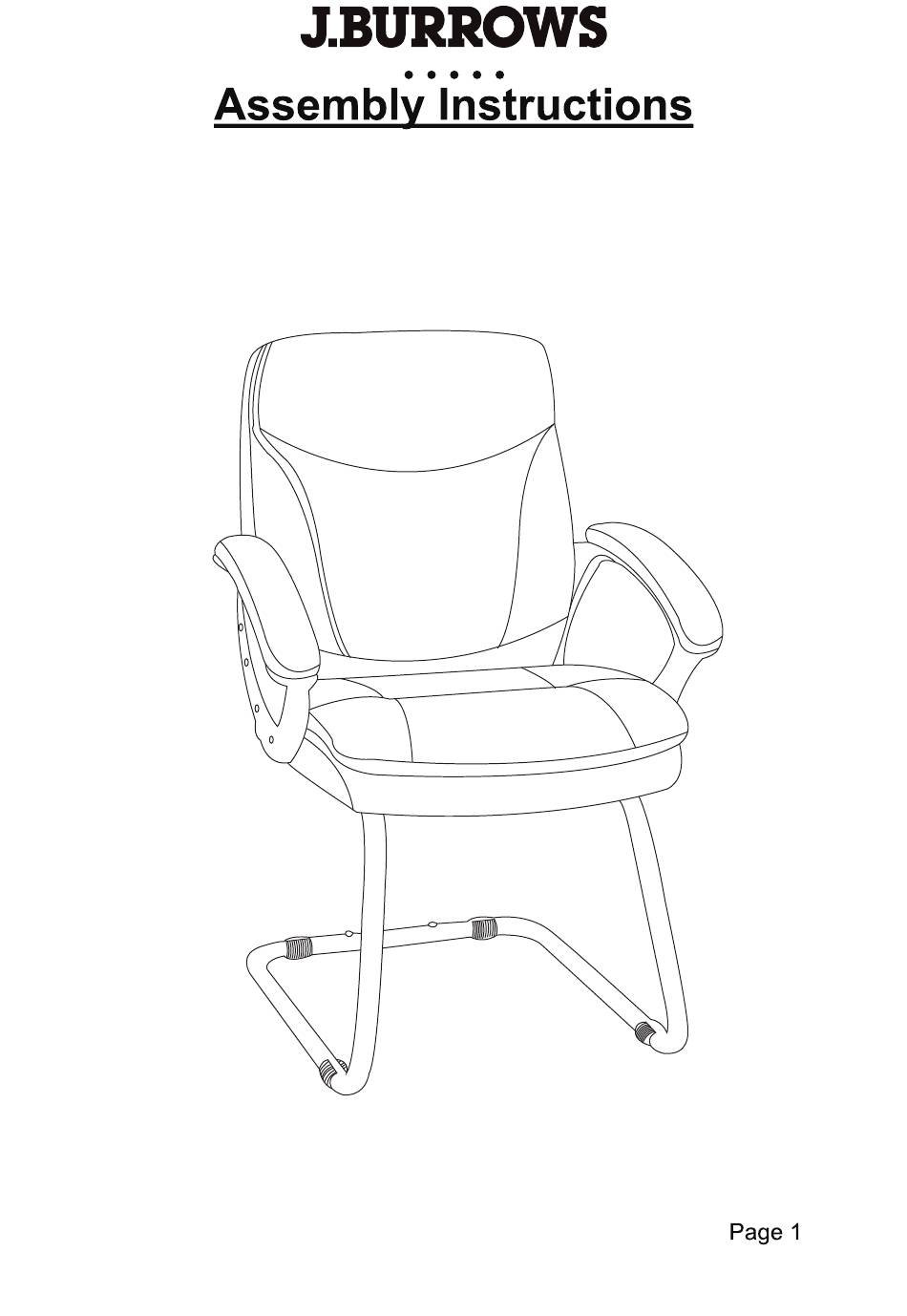

- Page 1 Hilton Visitor Chair JBHILTVBF/JBHILTVBK This chair has a load rating of 130kg...
- Page 2 Assemble Item On A Clean Flat Surface (M6 x 16mm) (1/4" x 3/4") (1/4" x 1")
- Page 3 Note: Join the Left Support(C1) & Right Support(C2)and Connector(D) together using 2 Bolts (F) as shown. Do not tighten the bolts until step 2. Note: Align assembled Support over pre-drilled holes on the underside of Seat Cushion (B) using 4 Bolts (G).Tighten all bolts(including the ones on connector) securely with enclosed Allen Wrench (I).
- Page 4 Note: Attach Armrests (E) to the assembled Seat Cushion (B) using 4 Bolts (H) with Allen Wrench (J) .Do not tighten Bolts fully until you have completed assembly. Note: Attach Back Cushion (A) to Armrests (E) by securing 2 Bolts (H) to the lower holes of Back Cushion (A) as shown.
- Page 5 Note: Gently pivot the Back Cushion (A) to the upright position. Then fix Back Cushion (A) with 2 Bolts (H) by Allen Wrench (J). Ensure all the Bolts (G) are tight with Allen Wrench (J). Your Eton Visitor chair is now complete and ready for use Your Hilton Vistor Chair is now complete and ready for use.
