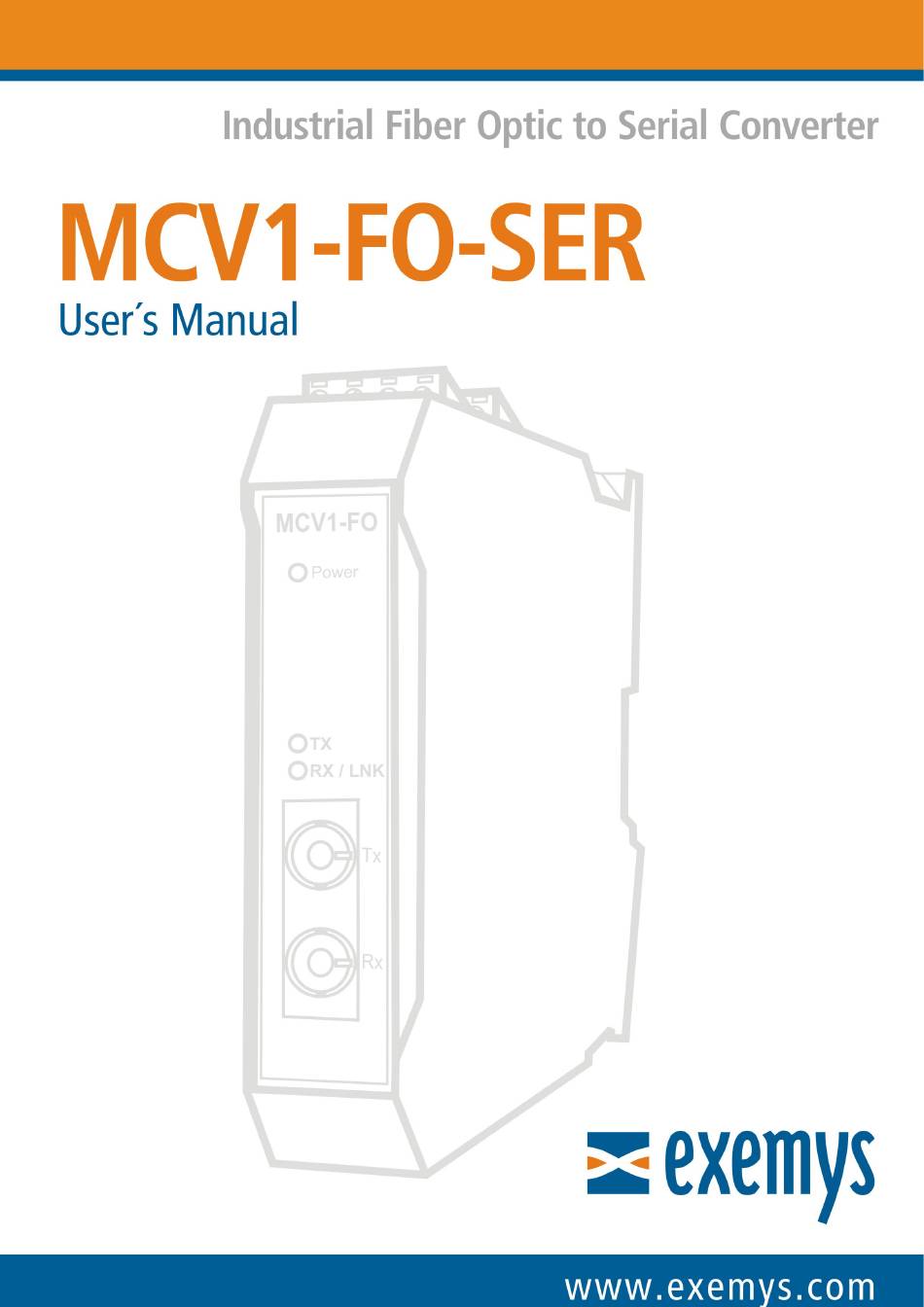

- Page 2 MCV1-FO-SER User’s Manual Exemys Exemys products are in permanent evolution to satisfy the needs of our clients. For this reason, the specifications and capabilities are subject to change without previous notice. Please find updated information at www.exemys.com Copyright © Exemys, 2009. All Rights Reserved.
-
Page 3: Table Of Contents
MCV1-FO-SER User’s Manual Exemys Index Introduction Purpose of the manual .................... 4 General Description of the product ................4 Wiring General Wiring ......................5 Standard Connection ....................6 Ring Connection ...................... 7 Configuration & LED’s Technical Specification RS485 Port Connection………………………………………………………………………………..10 www.exemys.com... -
Page 4: Introduction
The purpose of this manual is to provide instructions for the fast and simple installation and operation the Industrial Fiber Optic to Serial Converter, MCV1-FO-SER. The manual starts with the product description and then provides instructions for the proper installation of its hardware. -
Page 5: Wiring
Exemys 2 Wiring 2.1 General Wiring MCV1-FO-SER wiring is very simple and intuitive. There are three different connectors. Serial port connector in industrial pluggable terminal block. Optic fiber port connector in ST type. Power supply Terminal block (+10 a +30 Vdc) -
Page 6: Standard Connection
MCV1-FO-SER User’s Manual Exemys 2.2 Standard Connection The most common connection for MCV1-FO is serial tunnel (point to point). This way it’s possible to extend a serial connection up to 2.7 Km with all the characteristics of an optical fiber. -
Page 7: Ring Connection
MCV1-FO-SER User’s Manual Exemys 2.3 Ring Connection The ring connection allows interconnecting several MCV1-FO using a ring. One of the devices must be the master and the rest slaves. To use the ring mode each of the MCV1-FO that connected to the slaves must have the Jumper of Configuration in RING MODE in ON position, also the Master must have the RING MODE in OFF position. -
Page 8: Configuration & Led's
MCV1-FO-SER User’s Manual Exemys 3 Configuration & LED’s The configuration of the converter is done by jumpers located in the top side of the device as it’s shown in the following figure. There are two configuration jumpers. They will determine how the converter will work. -
Page 9: Technical Specification
MCV1-FO-SER User’s Manual Exemys 4 Technical Specification The technical characteristics of the converter are: Serial Port: RS232, RS485, RS422 (Not simultaneous) Fiber Optic Port: Transmitter & Receptor Fiber Optic Connector: ST Power Supply: +10/30 Vdc. Power ON LED Case: DIN Rail Mountable, Fireproof Maximum Distance: 2.7 Km... -
Page 10: Rs485 Port Connection
MCV1-FO-SER User’s Manual Exemys www.exemys.com Rev. 4...
