Dyna-Glo Delux RMC-FA150NGDGD Operating Instructions & Parts Manual

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and
others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for
future reference.
Dyna-Glo
Gas Construction Heater

Description

Dyna-Glo Delux model RMC-FA150NGDGD is a natural gas fired construction
heater, having a built-in thermostat, and a 150,000 BTU/Hr rating. The heater
uses natural gas for com bustion and electricity to operate the motor and fan.
It is primarily to be used to temporarily heat well-ventilated buildings under
construction, alteration or repair. This heater should be utilized in sheltered, well-
ventilated areas, but never in occupied dwellings.

Specifications

Output Rating
Model BTU/Hr
RMC-FA150NGDGD 150,000
Manifold
Model Pressure
RMC-FA150NGDGD 4" W.C.
Model Ignition
RMC-FA150NGDGD Continuous spark

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . .1
Specifications. . . . . . . . . . . . . . . . . . . . . .1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . 1
General Safety Information . . . . . . . . 1-3
Principals of Operation. . . . . . . . . . . . . .3
Ventilation. . . . . . . . . . . . . . . . . . . . . . . .3
Installation. . . . . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . . . . .4
Maintenance . . . . . . . . . . . . . . . . . . . . 4-5
Storage . . . . . . . . . . . . . . . . . . . . . . . . . .5
Wiring Diagram. . . . . . . . . . . . . . . . . . . .6
Repair Parts Illustration . . . . . . . . . . . . .7
Repair Parts List. . . . . . . . . . . . . . . . . . . .7
Troubleshooting Chart . . . . . . . . . . . . . .8
Air Quality Hazard . . . . . . . . . . . . . . . . .9
Warranty . . . . . . . . . . . . . . . . . . . . . . . .10

Unpacking

1. Unpack all materials used to protect
the heater inside of carton. Retain
plastic caps attached to exposed
fittings for use during storage.
Delux Natural
®
C
US
ANS Z83.7-2017 CSA 2.14-2017 Construction Heater
Fuel
Fuel Consumption
Natural Gas Only 146 Cubic ft/h
(4.13 m /h)
3
Maximum Supply Minimum Supply
Pressure to Heater Pressure to Heater
1/2 PSI 5" W.C.
Spark Plug
Gap (Inches)
.12
(3.05 mm)
Page
2. Remove heater, accessories and all
hardware from carton.
3. Inspect all items for damage that may
have occurred during shipment.
Important Safety Information
Make certain you read and understand
all warnings. Keep these instructions for
reference. They are your guide to safe
and proper operation of this heater.
Safety information appears throughout
these instructions. Pay close attention
to them. Below are definitions for the
safety information listed throughout
this manual.
DANGER
Indicates an
im minen tly
hazardous situation which, if not
avoided, WILL result in death or serious
injury.
WARNING
Indicates a poten­
tially hazardous
Printed in China

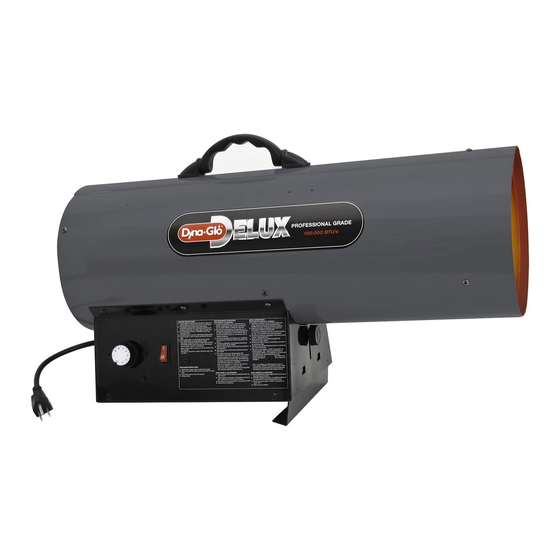

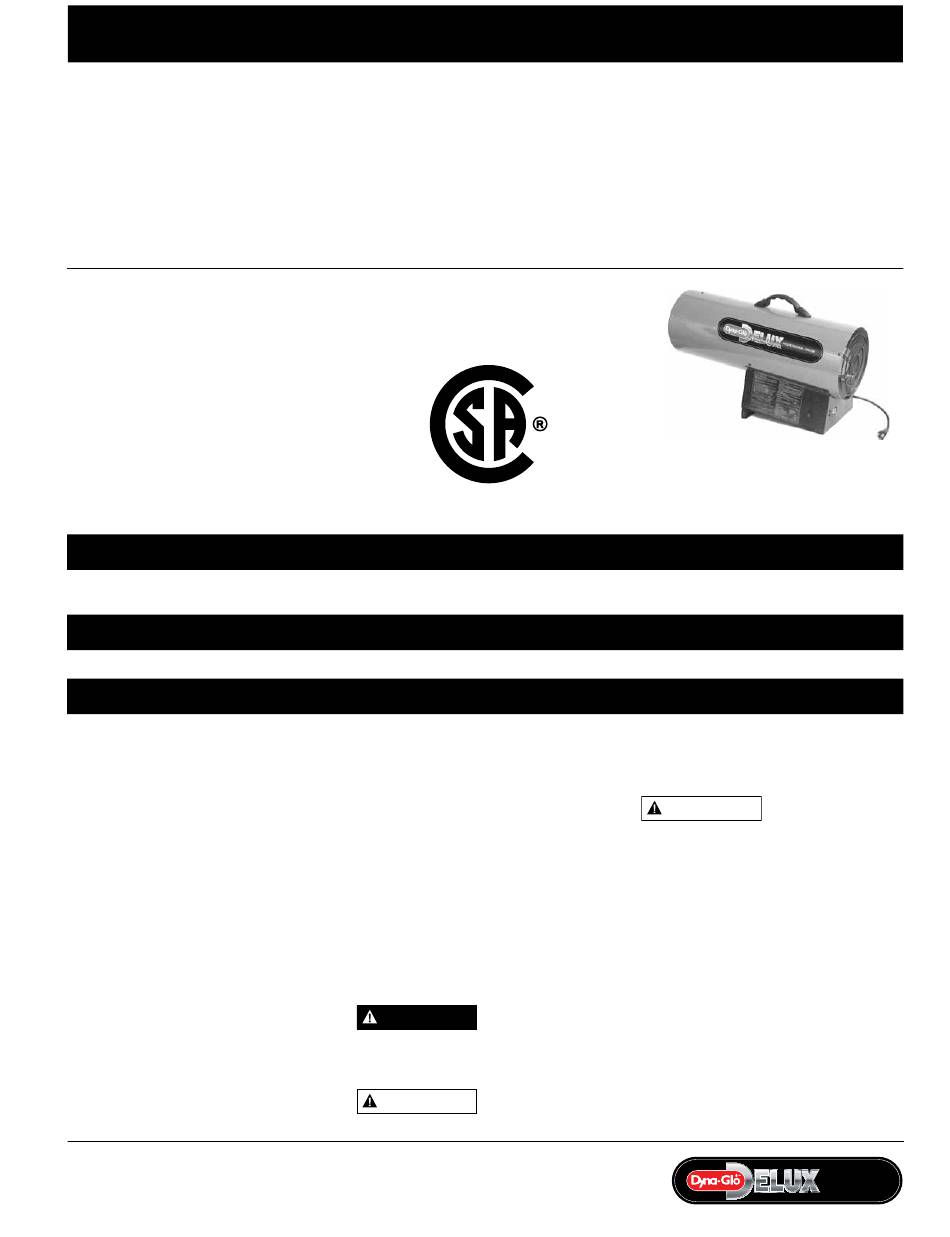

Figure 1 - Model RMC-FA150NGDGD
US
Hot Air Output
(CFM Approx) Motor
435 3440 RPM
Temperature
Control
Built-In Thermostat
Size
L x W x H (Inches)
25 x 9.4 x 15.0
(63.5 x 23.9 x 38.1 cm)
situation which, if not avoided, COULD
result in death or serious injury.
CAUTION
situa tion which, if not avoided, MAY
result in minor or moderate injury.
IMPORTANT: Not every possible cir-
cumstance that might involve a hazard
can be anticipated. The warnings in this
manual and on tags or decals affixed to
the unit are therefore not all-inclusive.
If a procedure, work method, or oper-
ating technique not specifically recom-
mend ed by is used, you must make sure
it is safe for you and others.
You should also ensure that equipment
will not be damaged or made unsafe by
the operating or maintenance method
you choose.
Consumer: Retain this manual for future
reference.
RMC-FA150NGDGD
Electric Motor
Input Amperage
120V/60Hz, 1/9 HP 0.7
Indicates a poten­
tially hazardous
PROFESSIONAL GRADE
IMNGF150DGD - KJY
