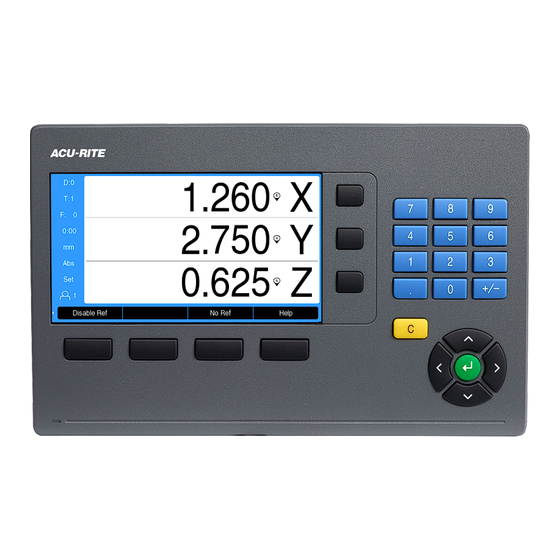

ACU-RITE DRO203 Manual

Changing the encoder resolution
Hide thumbs Also See for DRO203:

Advertisement

Quick Links

Download this manual
Changing the Encoder Resolution
on a DRO203 & DRO30X

Advertisement

loading
Need help?

Need help?

Do you have a question about the DRO203 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACU-RITE DRO203

Summary of Contents for ACU-RITE DRO203

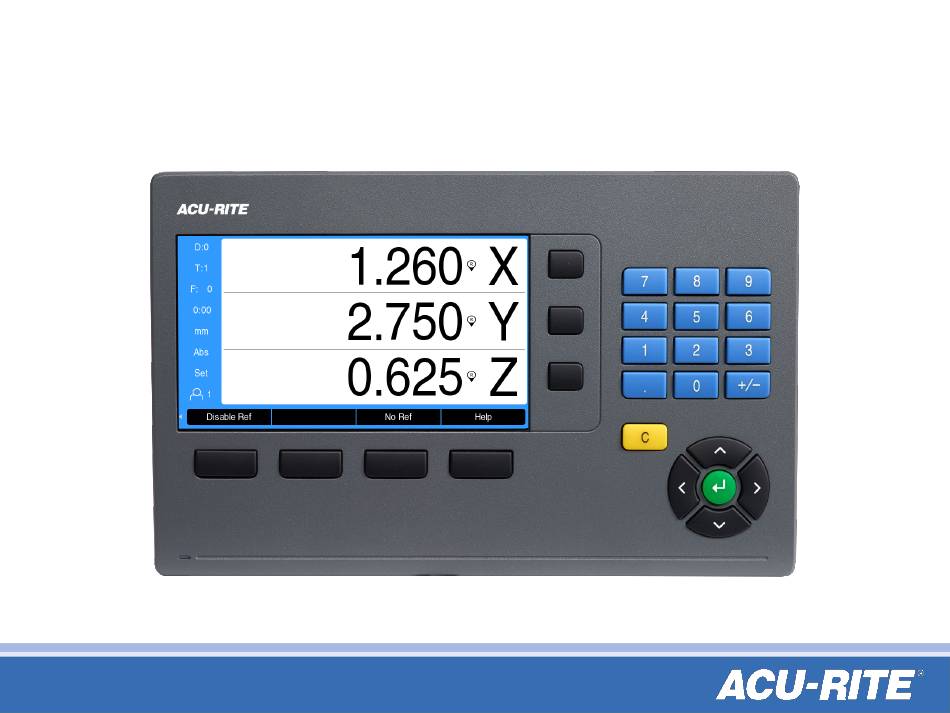

  • Page 1 Changing the Encoder Resolution on a DRO203 & DRO30X...
  • Page 2 Changing the Encoder Resolution on a DRO203 & DRO30X Note which port the encoder you need to change is plugged into. You will need this information for later.
  • Page 3 Changing the Encoder Resolution on a DRO203 & DRO30X Power up the box. When prompted, press any key to continue. The power switch is located on the back, directly under the power cord.
  • Page 4 Changing the Encoder Resolution on a DRO203 & DRO30X Reference your encoders by moving each axes so they cross at least 2 reference marks on the glass (~3“).
  • Page 5 Changing the Encoder Resolution on a DRO203 & DRO30X Use the left or right arrow keys to change the soft key menu below the screen, until you find the Setup menu.
  • Page 6 Changing the Encoder Resolution on a DRO203 & DRO30X Press the Setup soft key.
  • Page 7 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the User Management menu, then press enter.
  • Page 8 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the Supervisor Login menu, then press enter.
  • Page 9 Changing the Encoder Resolution on a DRO203 & DRO30X Using the number keypad to enter the passcode – 8891, then press enter.
  • Page 10 Changing the Encoder Resolution on a DRO203 & DRO30X Use the left arrow key to return to the Configuration Menu.
  • Page 11 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the Installation Setup menu, and then press enter.
  • Page 12 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the Encoder Setup menu, and then press the right arrow key.
  • Page 13 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the port the encoder you want to change is plugged into, and then press enter.
  • Page 14 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the Resolution menu, and then press the right arrow key.
  • Page 15 Changing the Encoder Resolution on a DRO203 & DRO30X Use the up and down arrow keys to highlight the resolution that matches the value listed on the encoder label, and then press enter twice.
  • Page 16 Changing the Encoder Resolution on a DRO203 & DRO30X Press the left arrow key three times to get back to the DRO screen. Repeat the sequence for additional encoders as needed.

This manual is also suitable for:

Dro30x
