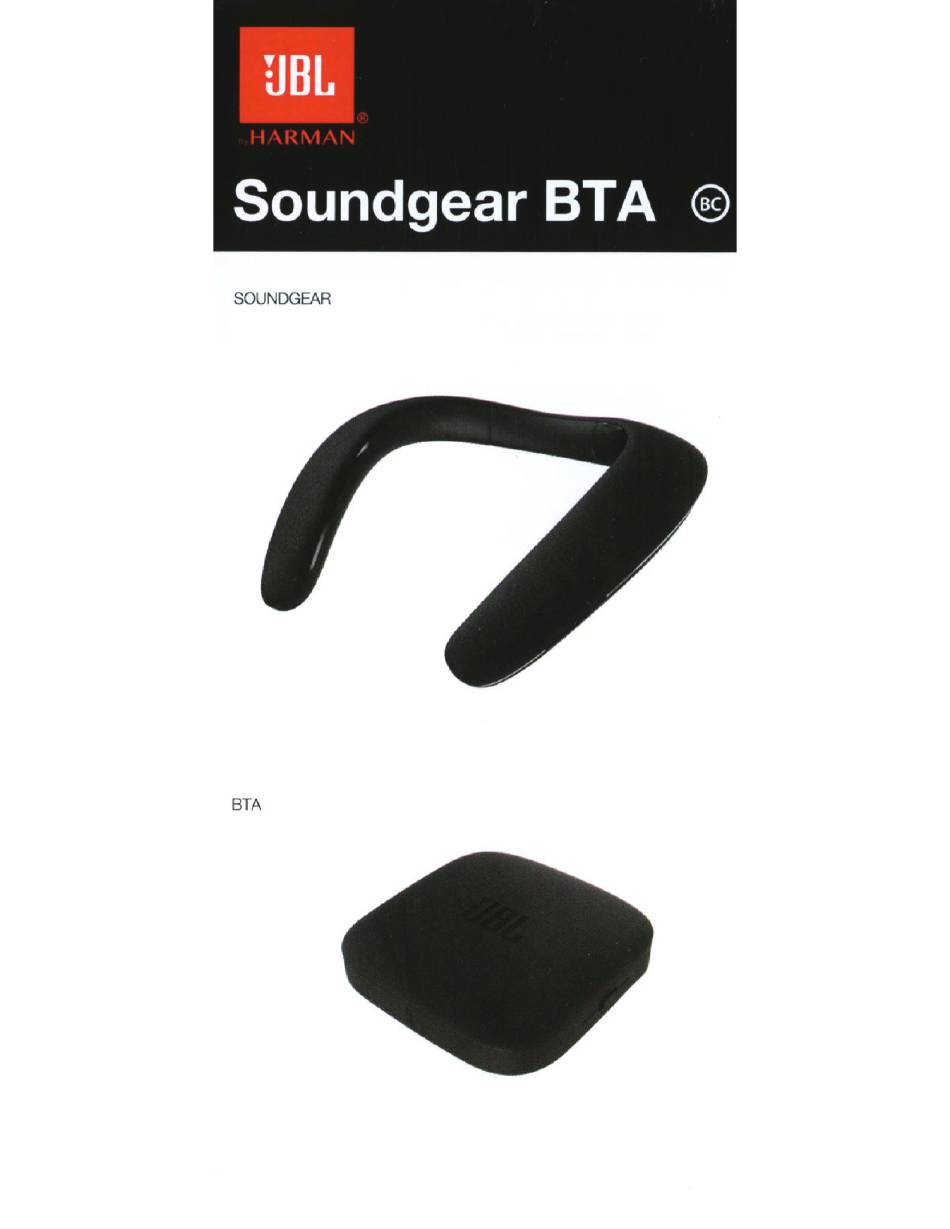

- Page 2 Soundgear BTA What’s in the box Soundgear...
- Page 3 Soundgear BTA Charging Cable 3.5mm audio cable Digital optical S/PDIF audio cable Warranty card, Warning card, Safety sheet, QSG...
- Page 4 Soundgear BTA Overview a. Buttons & LEDs Soundgear Pairing SPDIF Switch...
- Page 5 Soundgear BTA b. Connections Soundgear...
- Page 6 Soundgear BTA ® Bluetooth Connection 1. Put Soundgear on your neck Pull the audio arms outward gently. Pulling with excessive force will result in product failure 2. Turn on the Soundgear ON (Slide button) 3. If connecting for the first time, the Soundgear will enter the pairing mode automatically after it is powered on 4.
- Page 7 Soundgear BTA 6. Put Soundgear in pairing mode close to BTA (within 1 meter). 1 meter 7. LED blue on means connected successfully Note: BTA connects Soundgear in higher priority during device pairing. During the pairing process the sound may have a brief intermittent period.
- Page 8 Soundgear BTA Connecting to TV S/PDIF (Optical) AUX (3.5mm audio) STEP S/PDIF S/PDIF 1. Via digital optical audio S/PDIF a. Remove the protective caps b. Connect TV to BTA Note: Please make sure that your audio output settings on your TV, DVR, or other relevant device are set to PCM.
- Page 9 Soundgear BTA Note: TV speakers will typically be muted automatically when the headphone jack is use. The volume of the headphone jack can be controlled using the TV or receiver and will affect the volume of the transmitter. b. Switch to AUX SPDIF Note: Switch between S/PDIF and AUX modes to change audio input source.
- Page 10 Soundgear BTA اﻟﺘﻮﺻﻴﻞ ﺑﺎﻟﺘﻠﻔﺎز Volume control & Music control 1. Volume control 2. Music control 3.0s 3.0s...
- Page 11 Soundgear BTA Phone call 3.0s Bluetooth connection to the second device Soundgear 1. Pair and connect the Soundgear with the 1 device (see Section 3 Bluetooth Connection) 2. Pair and connect the Soundgear with the 2 bluetooth device 3.0s 3. Connect to bluetooth device Choose “JBL Soundgear”...
- Page 12 Soundgear BTA 4. Go back to the bluetooth device list on the 1 device and select the JBL Soundgear to connect Items to note a. Maximum 2 devices can be connected simultaneously SOUNDGEAR b. To switch music source, pause the music on the current device and select play on the 2 device.
- Page 13 Soundgear BTA LED behaviour MARCHE MARCHE Power on Marche BT Pairing Couplage au BT Fast Fast Rapide Rapide BT Connected Connecté au BT MARCHE MARCHE – – Low Battery Slow Batterie faible Lent – – Charging Complete Chargement terminé Éteint Charging in Progress Chargement en cours –...
- Page 14 Soundgear BTA מצב הלד -מצב ה פועל פועל פועל BT התאמת מהיר מהיר BT מחובר פועל פועל סוללה חלשה איטי – – ההטענה הסתיימה כבוי – – בהטענה פועל – – ﺣﺎﻟﺔ اﳌﺼﺒﺎح وﺿﻊ ﺳﺎوﻧﺪ ﺟري – – – Specifications •...
- Page 15 Soundgear BTA Specifications • Modèle : BTA20 • Model : BTA20 • Poids : 35 g • Weight: 35g • Dimensions (H x L x P) : • Dimensions (H x W x D): 50 mm x 50 mm x 16 mm 50mm x 50mm x 16mm •...
- Page 16 ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
- Page 17 ® -enabled for sound streaming from compatible devices, Comfort-fit design the JBL Soundgear BTA offers 6 hours of playback time, a quick recharge time of 2 hours and Intuitive controls ® an echo-cancelling dual mic for crystal clear calls. The included Bluetooth wireless audio transmitter enables a convenient connection to the TV to better immerse yourself in a movie.
- Page 18 Weight: 350g HARMAN International Industries, Incorporated © 2017 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN 8500 Balboa Boulevard, Northridge, CA 91329 USA International Industries, Incorporated, registered in the United States and/or other countries. Features, www.jbl.com...
