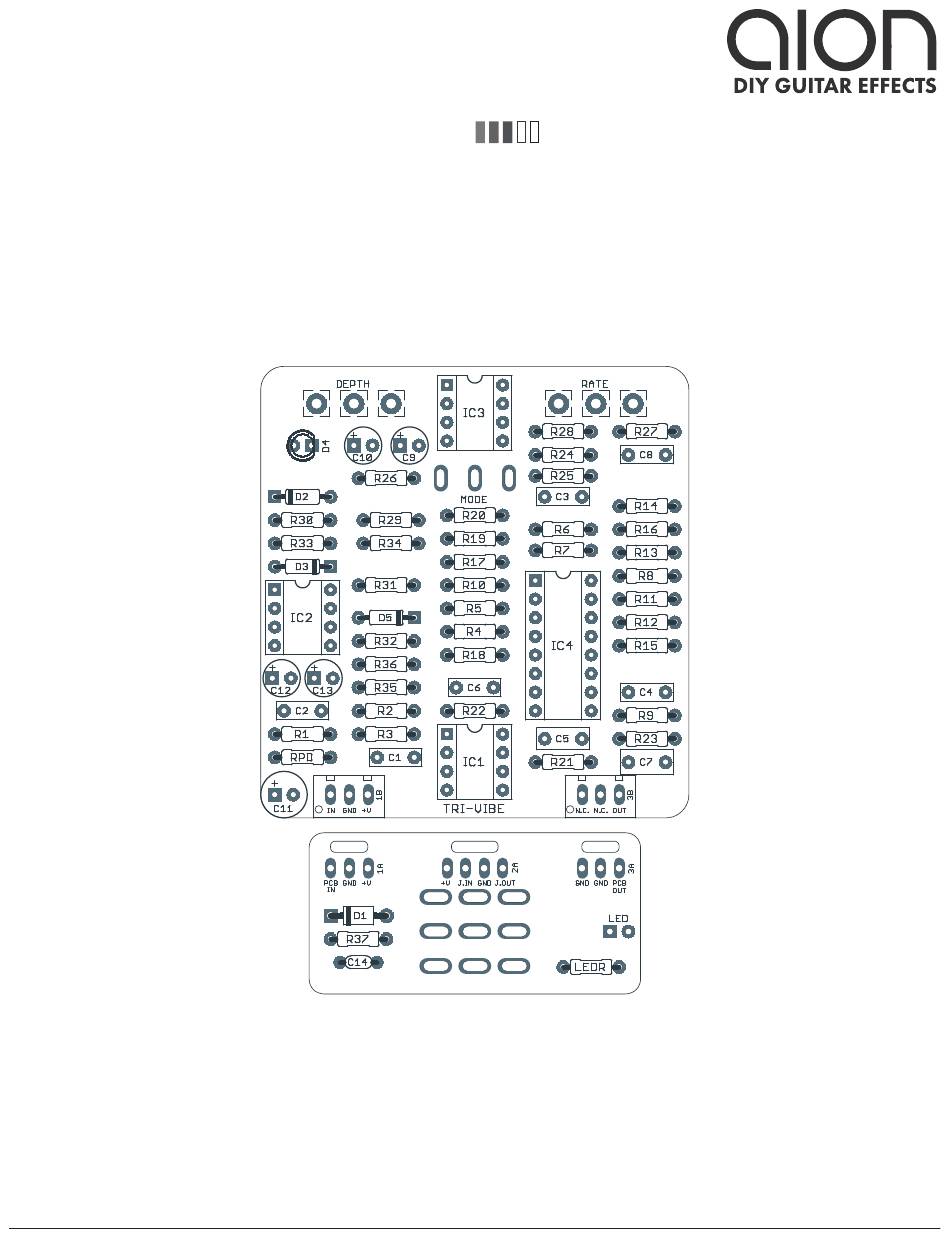

PROJECT NAME
TRI-VIBE
BASED ON
Runoffgroove Tri-Vibe
EFFECT TYPE
Phaser/vibrato
PROJECT SUMMARY
A simple no-bias phaser and vibrato circuit that uses commonly available parts.

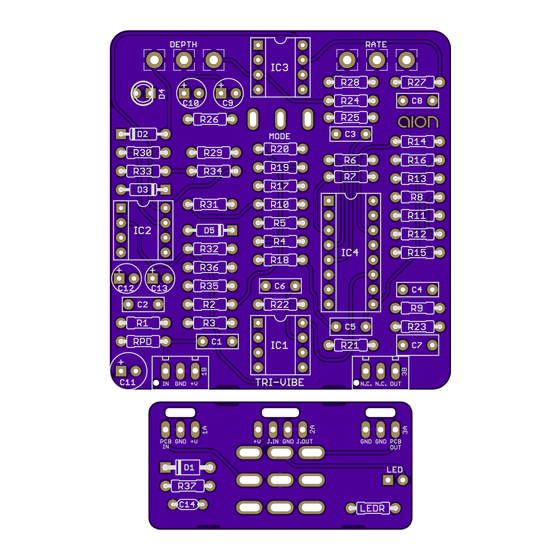

Actual size is 2.3" x 2.42" (main board) and 1.78" x 0.86" (bypass board).
RUNOFFGROOVE TRI-VIBE
BUILD DIFFICULTY
Intermediate
DOCUMENT VERSION
1.0.0 (2020-06-05)
1
Advertisement
Table of Contents
Related Manuals for Aion Electronics TRI-VIBE
Summary of Contents for Aion Electronics TRI-VIBE
- Page 1 PROJECT NAME TRI-VIBE BASED ON BUILD DIFFICULTY Runoffgroove Tri-Vibe Intermediate EFFECT TYPE DOCUMENT VERSION Phaser/vibrato 1.0.0 (2020-06-05) PROJECT SUMMARY A simple no-bias phaser and vibrato circuit that uses commonly available parts. Actual size is 2.3” x 2.42” (main board) and 1.78” x 0.86” (bypass board).
-
Page 2: Table Of Contents
7 Drill Template INTRODUCTION The Runoffgroove Tri-Vibe is a vibrato & phaser circuit that is a great deal simpler than the comparable vintage circuits. Unlike most vibrato implementations, no BBDs are used, and instead the Tri-Vibe’s topography is much more similar to a phaser using OTAs, but with an LFO that has been optimized for the vibrato effect. -
Page 3: Parts List
Metal film resistor, 1/4W 100k Metal film resistor, 1/4W 100k Metal film resistor, 1/4W 220k Metal film resistor, 1/4W Metal film resistor, 1/4W Metal film resistor, 1/4W 820k Metal film resistor, 1/4W Metal film resistor, 1/4W 100k Metal film resistor, 1/4W RUNOFFGROOVE TRI-VIBE... - Page 4 LED, 3mm, red diffused 1N914 Fast-switching diode, DO-35 NE5532P Operational amplifier, DIP8 IC1-S DIP-8 socket IC socket, DIP-8 TL062 Operational amplifier, DIP8 IC2-S DIP-8 socket IC socket, DIP-8 TL022 Operational amplifier, DIP8 IC3-S DIP-8 socket IC socket, DIP-8 RUNOFFGROOVE TRI-VIBE...
- Page 5 Switchcraft 111X or equivalent. 1/4" mono 1/4" phone jack, closed frame Switchcraft 111X or equivalent. 2.1mm DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. RUNOFFGROOVE TRI-VIBE...
-
Page 6: Schematic
100n BYP_GND Top: Swirl Center: Vibe Down: Whirl MODE 100k IC4A IC4B IC1A LM13700N LM13700N NE5532 IC4_BUF1 IC4_BUF2 LM13700N LM13700N IC1B NE5532 220k IC3A IC3B TL022P 820k TL022P 500kC 100k RATE IC2B TL062P 100k 1N914 3mm red LED RUNOFFGROOVE TRI-VIBE... -
Page 7: Drill Template
125B INCH 0.625” 0.625” ø3/8” ø3/8” ø1/2” RATE DEPTH x: -0.65, y: +1.71 x: 0.65, y: +1.71 ø9/32” ø9/32” MODE x: 0, y: +0.66 ø1/4” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.775 x: 0, y: -1.775 ø5/16” ø15/32” RUNOFFGROOVE TRI-VIBE... -
Page 8: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B RUNOFFGROOVE TRI-VIBE... -
Page 9: Wiring Diagram
WIRING DIAGRAM NC OUT GND +V +V JACK GND JACK GND GND PCB 125B RUNOFFGROOVE TRI-VIBE... -
Page 10: Licensing
Please contact us with the information and we will investigate the situation. Thank you. DOCUMENT REVISIONS 1.0.0 (2020-06-05) Initial release. RUNOFFGROOVE TRI-VIBE...
