Parts & Fittings for Soho 4 Drawer Chest (30213106)
Panel -

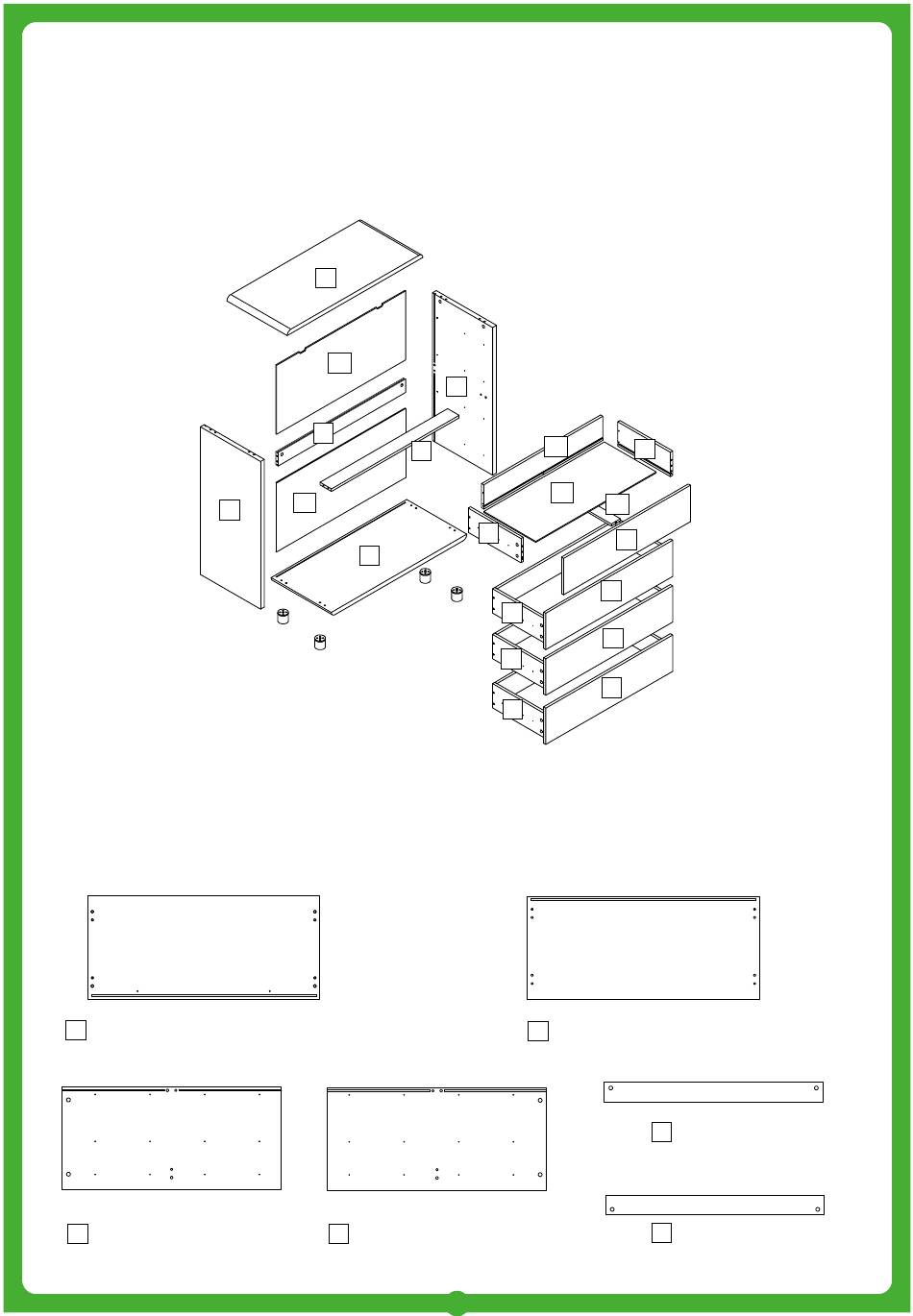

exploded view
Panels - plan view
1
Top panel(90x40cm)
3
Left side panel
(85x39.9cm)
1
13
6
14
3
2
4
Right side panel
(85x39.9cm)
4
10
5
12
8
8
8
8
2
Bottom panel(90x40cm)
2
9
11
7
7
7
7
5
Front rail
(84.7x7.6cm)
6
Back rail
(84.7x7.6cm)
