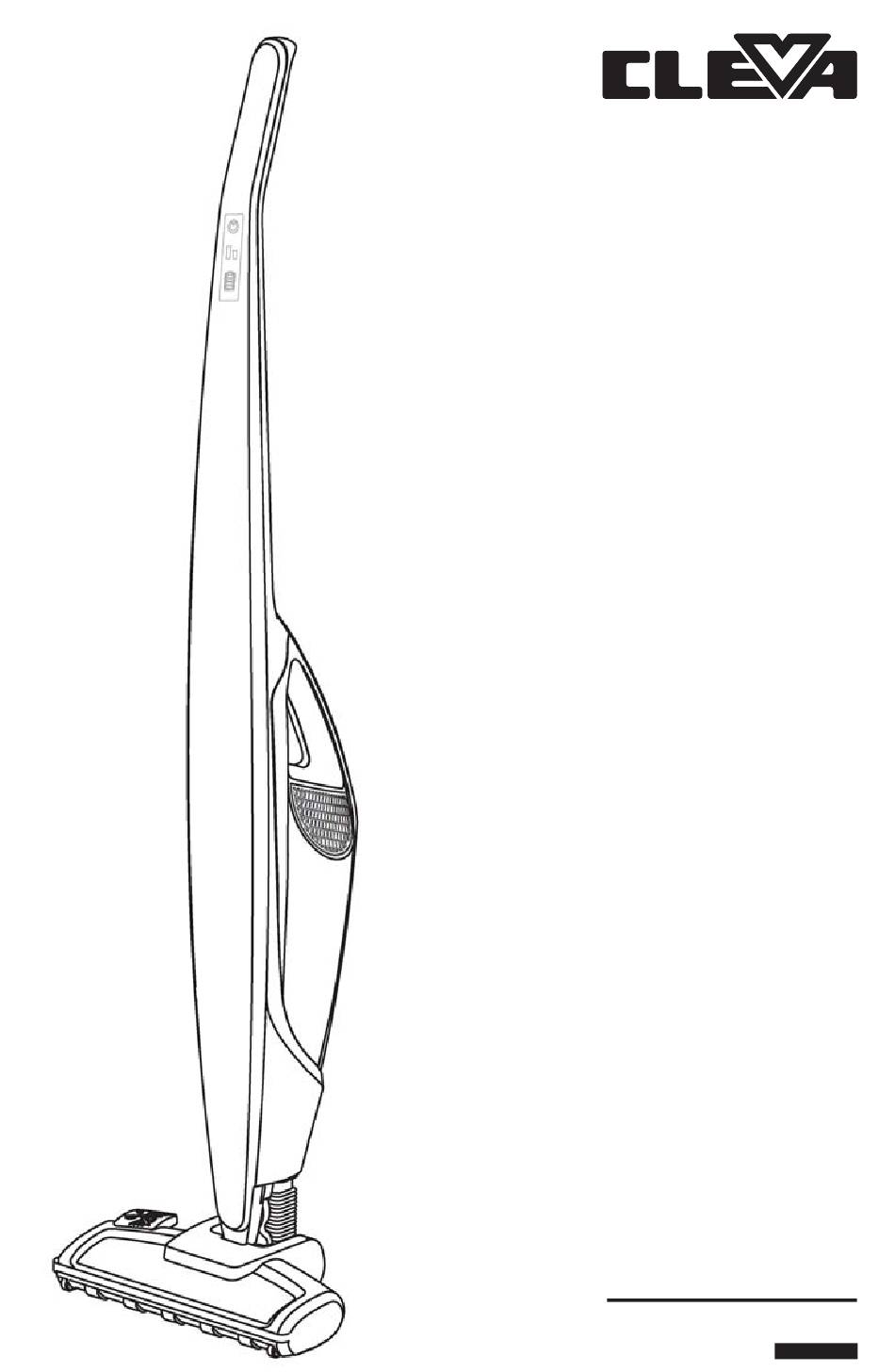

Cleva JOEY VSA2110UK Manual

21.6v lithium cordless vacuum cleaner

Advertisement

JOEY 21.6V Lithium
TM
Cordless Vacuum Cleaner
Slimline Design and 2-in-1
Model Number -
VSA2110UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JOEY VSA2110UK and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleva JOEY VSA2110UK

  • Page 1 JOEY 21.6V Lithium Cordless Vacuum Cleaner Slimline Design and 2-in-1 Model Number - VSA2110UK...
  • Page 2: Table Of Contents

    • Keep this instruction book and your sales receipt in a safe place for future reference. safe place for future reference. GETTING HELP GETTING HELP For more information on this product, please visit our For more information on this product, please visit our website. website. cleva-uk.com cleva-uk.com...
  • Page 3: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION • This appliance can be used by children aged from 8 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or...
  • Page 4 PROPER USE PROPER USE • The appliance must only be stored and charged • The appliance must only be stored and charged indoors. indoors. • Do not leave the vacuum cleaner in direct sunlight. • Do not leave the vacuum cleaner in direct sunlight. •...
  • Page 5: Guarantee Information

    Such injury or damage is not covered by the warranty or by CLEVA. warranty or by CLEVA. GUARANTEE INFORMATION GUARANTEE INFORMATION Cleva take pride in engineering high quality, durable Cleva take pride in engineering high quality, durable products. products. This product is guaranteed against defects in...
  • Page 6: Parts And Features

    PARTS AND FEATURES PARTS AND FEATURES (13) (13) Handle Handle Handheld Vacuum Handheld Vacuum Touch control panel Touch control panel Cleaner Power Switch Cleaner Power Switch Handheld Vacuum Cleaner Handheld Vacuum Cleaner Dust Bin Release Button Dust Bin Release Button Main Body Main Body Dust Bin (Filter Inside)
  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS • Fit the vacuum cleaner body into the motorised brush • Fit the vacuum cleaner body into the motorised brush head and lock into place (Fig.1). head and lock into place (Fig.1). • Insert the handle into the top of the main body as •...
  • Page 8: Charging Instructions

    CHARGING INSTRUCTIONS CHARGING INSTRUCTIONS Please switch off the unit before placing it on the charger. Please switch off the unit before placing it on the charger. • Plug the charging adapter into an outlet. Insert the • Plug the charging adapter into an outlet. Insert the vacuum cleaner onto the charger base as shown (Fig.7).
  • Page 9: Operating Instructions & Tips

    NOTE: If the battery charging indicator does not NOTE: If the battery charging indicator does not illuminate when charging, ensure: illuminate when charging, ensure: • that the vacuum cleaner is seated properly on to the • that the vacuum cleaner is seated properly on to the charger base.
  • Page 10 WARNING - Do not operate vacuum cleaner WARNING - Do not operate vacuum cleaner without filter in place. without filter in place. • Before vacuuming, check that the brush wheels and • Before vacuuming, check that the brush wheels and brush roll are clear of any sharp objects to avoid brush roll are clear of any sharp objects to avoid scratching floors.
  • Page 11 Low Speed Low Speed High Speed High Speed Fig.13 Fig.14 CLEANING WITH THE HANDHELD VACUUM CLEANER CLEANING WITH THE HANDHELD VACUUM CLEANER • To remove the handheld vacuum cleaner, press the • To remove the handheld vacuum cleaner, press the release button and detach from the main body (Fig.15).
  • Page 12: Maintenance And Care

    MAINTENANCE AND CARE EMPTYING THE DUST BIN For best performance, empty the dust bin after every use. Never operate the vacuum cleaner without the dust bin and filter in place. • Remove the handheld vacuum cleaner from the main body by pressing the release button and detaching the body by pressing the release button and detaching the handheld vacuum cleaner (Fig.18).
  • Page 13 CLEANING THE FILTER The key to maximum performance is having a clean filter. Cleaning the filter frequently will help your vacuum cleaner operate at peak efficiency. A spare filter is provided with your vacuum cleaner to allow you to dry one filter properly while using the other.
  • Page 14 CLEANING THE MOTORISED BRUSH ROLL CLEANING THE MOTORISED BRUSH ROLL The brush roll may accumulate debris such as strings, The brush roll may accumulate debris such as strings, hair and fibres. This type of debris can wrap around the hair and fibres. This type of debris can wrap around the brush and diminish its ability to clean effectively.
  • Page 15 • Align the end to the brush drive first, then insert the • Align the end to the brush drive first, then insert the other end correctly. When installed correctly, the brush other end correctly. When installed correctly, the brush roll should rotate freely.
  • Page 16: Troubleshooting

    TROUBLESHOOTING WARNING: Disconnect electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury. Problem Possible Cause Solution Vacuum 1. Battery may be 1. Charge the battery as instructed on cleaner depleted.
  • Page 17 Motorised 1. Brush roll is 1. Remove any obstruc- brush jammed. tion or clean the not turning. 2. Brush roll is not brushroll as necessary. installed well. Follow instructions on page 12. 2. Remove brush roll and reinstall following instructions on page 12. Vacuum 1.
  • Page 18: Technical Data

    TECHNICAL DATA Specification Value Battery power 21.6V 2.0Ah Battery pack 21.6V Li-ion Running time 35 mins max Speed settings 2 speeds Dust capacity 0.5L Weight 2.6 kg Charger input 100-240V~ 50-60Hz Charger output 25.6V 500mA Battery full charge time 5 hours DISPOSAL AND RECYCLING Do not dispose with household waste Recycle products and components according to...
  • Page 19: Cleva-Uk.com

    Cleva UK Ltd G2 Stephenson Prestwick Park Prestwick Newcastle upon Tyne NE20 9SJ...
