InstallatIon and maIntenance InstRUctIons

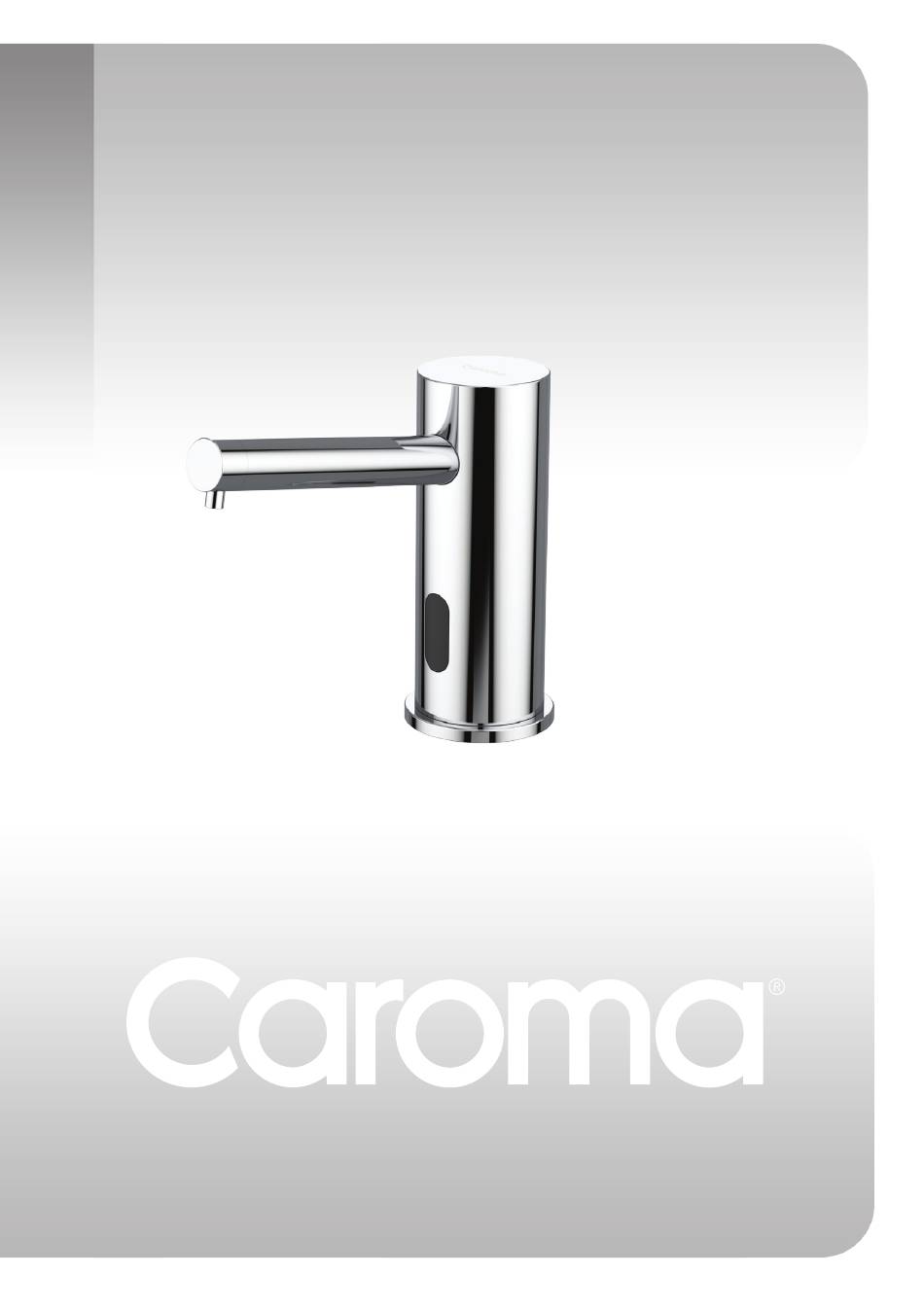

G S E R I E S H A N D S F R E E S OA P D I S P E N S E R
1
I S 1 3 0 2 C ( 0 3 / 1 5 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Caroma G Series

Summary of Contents for Caroma G Series

  • Page 1 InstallatIon and maIntenance InstRUctIons G S E R I E S H A N D S F R E E S OA P D I S P E N S E R I S 1 3 0 2 C ( 0 3 / 1 5 )
  • Page 2 I N DEX ImPoRtant tecHnIcal data PRe-InstallatIon InFoRmatIon PacK contents 7-10 InstallatIon FIllInG tHe soaP tanK settInGs adJUstement WItH a Remote contRol BatteRIes RePlacement sPaRe PaRts lIst tRoUBle sHootInG...
  • Page 3 I M PO R T ANT Deck RequiRements deck thickness: 50mm maximum mounting hole (in deck): Ø26-Ø30mm mounting hole position: <100mm (centre of dispenser to inside edge of basin/sink) Recommended distance to adjacent tap: 90mm minimum PoweR RequiRements Battery operation: IP67 Battery box (6 x d alkaline batteries not included) mains operation: 240V 50Hz 3 pin socket imPoRtant infoRmation Viscosity of liquid soap must be within the recommended range (see below).
  • Page 4 TE c h N I cA l DATA 1 0 3 1 2 0 ACTIVATION DISTANCE G-series Hands Free soap dispenser G16010e6a 2 0 4 IP67 Battery Box (optional) sP63015...

  • Page 5: Pre-Installation Info

    PRE-INSTAllATION INFO check contents separate all parts from the packaging and check each part with the “Pack contents” section. make sure all parts are accounted for before discarding any packaging material. If any parts are missing, do not attempt to install your touch free soap dispenser until you obtain the missing parts.
  • Page 6 PA ck c ONT EN T S Familiarise yourself with the part names and confirm that the parts are included. 1. 1 x Body and fixing accessories 2. 1 x soap tank, pump assembly and bottle support 3. 1 x G series soap power supply...

  • Page 7: Installation

    INSTAllATION step 1 – Remove all mounting hardware Remove the nut and the gasket from the tail of the soap dispenser body. Recommended hole size step 2 – installing the soap dispenser 1. make sure the ‘o’ ring is located in the bottom ring of the dispenser.
  • Page 8 INSTAllATION 3. If you would like to install the soap dispenser without using the supplied bottle support, disassemble the pump from the body support by unscrewing the two adjoining screws and proceed to step 5. 4. Fix the bottle support to the desired location.
  • Page 9 INSTAllATION 6. screw in the nut at the top of the soap dispenser pump assembly to the soap dispenser body nipple. step 3 - connecting the power source 1. Remove the protective sticker covering the sensor. Keep away from the sensor range. 2.
  • Page 10 INSTAllATION b. For battery option: install the battery box at the wall underneath the basin/sink and connect the battery connector c. For mains option: plug the transformer into the electricity socket and connect the transformer connector 3. Wait about 10 seconds before you put your hands within the sensor range.

  • Page 11: Filling The Soap Tank

    FIllING ThE SOAP TANk 1. Unscrew 2. Fill in the the soap tank liquid soap up from the pump to the top line. assembly. 4. screw the 3. only if you soap tank back have a bottle to the pump support kit: assembly.
  • Page 12 SETTINGS ADJUSTEMENT wITh A REMOTE cONTROl If desired, use the remote control to adjust the soap dispenser settings. Hold the remote control straight in front of the sensor in a distance of about 4-6” (10-15cm). attention: Holding the soap dispenser remote control out of the recommended range (too close or too far)may interfere with the remote’s activation.

  • Page 13: Battery Replacement

    BATTERY REPlAcEMENT Battery option only When the batteries weaken, the red indicator light will blink at a constant rate when the user’s hands are within the sensor range. the batteries must be replaced within two weeks. to replace the batteries in battery models: 1.

  • Page 14: Maintenance

    MAINTENANcE sPaRe PaRts list coDe Remote control sP63016 IP67 Battery Box sP63015 G series soap Bottle 1 litre sP63021 G series soap Pump 1 litre sP63022 sP63023 G series soap Bottle Bracket sP63024 G series soap Power supply...

  • Page 15: Troubleshooting

    TROUBlE ShOOTING P R o B l e m I n d I c a t o R c a U s e s o l U t I o n Red light in the sensor flashes continuously when low battery. Replace battery.
