Summary of Contents for Sanosil Q-Jet Advanced 2 Series

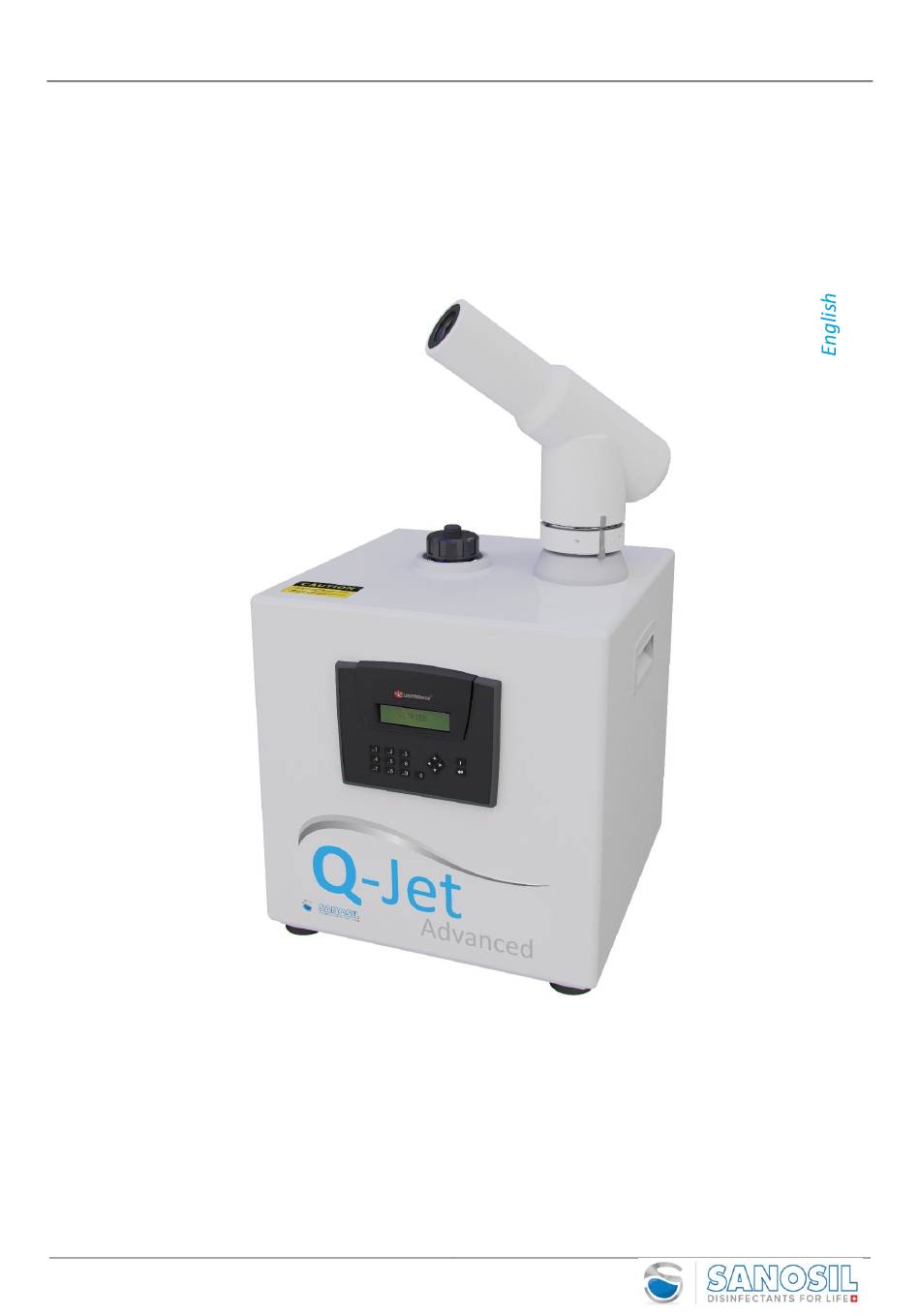

- Page 1 Sanosil Q-Jet Advanced Operation and Maintenance Manual Sanosil Q-Jet Advanced Series 2 Des M 56en – Advanced V2+...
-
Page 2: Table Of Contents
Authorized Persons ....................5 Disclaimer ......................5 Room Disinfecting with the Sanosil Q-Jet Fogger ..........5 Different ways to use the Sanosil Q-Jet Advanced ..........5 Important safety directions (read carefully before use) ......... 6 Product Description ................... 7 Technical Data ......................7 Parts and Functions .................... -
Page 3: Introduction
Sanosil Q-Jet Advanced Introduction 1.1 Used Symbols Inside this manual or on the device there are Symbols having the following meaning: High risk! Disregard can lead to death or heavy injuries! Medium risk! Disregard can lead to death or heavy injuries! -
Page 4: Intended Usage
Do always and only use suitable Sanosil disinfectants with a maximal hydrogen Peroxide content of 7.5%. The usage of any other disinfectant or accessories which are not specifically approved by Sanosil Ltd. is against the rules herein and can lead to heavy injuries as well as to damaging the device. The device is not meant for use as a stand-alone disinfection process but rather as an addition to regular cleaning and disinfection. -
Page 5: Disclaimer
Sanosil ready to use products are recommended for use in fogging operations as a supplemental measure after regular cleaning and disinfecting procedures. Pre-cleaning protocol defined by healthcare facility. -
Page 6: Important Safety Directions (Read Carefully Before Use)
To ensure effectiveness and safety, use only with Sanosil disinfectant. Using any other manufacturer’s disinfecting or cleaning product will result in serious injury, exposure and environmental damage. Sanosil Ltd. is not responsible for any injury or damage caused by using this device outside of the specific parameters detailed in this manual. -
Page 7: Product Description
Sanosil Q-Jet Advanced Product Description Technical Data 220 - 240 V, 50/60Hz Power requirements: Amperage: 5.0 A max. (fuse 6,3 A) Operating temperature / humidity: 5°C to 35°C / max. 45% rH (before fogging) at higher humidity, the humidity must be lowered before start-up or a lower dosage of the active substance must be selected. -
Page 8: Trolley (Optional)
Sanosil Q-Jet Advanced 3.8 Trolley (optional) place the device on top of trolley • secure the device with the screw on the trolley • CAUTION Risk of crushing! Hands and fingers can be crushed between device and trolley! Do always wear device on handle bars while setting the device on the trolley! -
Page 9: Getting Started And Operating Instructions
Sanosil Q-Jet Advanced Operating Instructions 4.1 Warning WARNING Risk of Injuries! This device nebulizes chemical substances! Do not inhale these substances, always wear safety equipment when filling/emptying tank and pay attention to optical and acoustic warning signals. Read carefully all indications stated on the safety data sheet of the disinfection liquid and fully comply... -
Page 10: Power Connection
Sanosil Q-Jet Advanced 4.3 Power Connection • Before making electrical connections carefully check that the voltage supplied is compatible with the voltage marked on the data plate. • Insert power cord (2) in IEC power socket. 4.4 Filling • Remove tank cap (6) •... -
Page 11: Gun (Nozzle)
Sanosil Q-Jet Advanced • Wind tank cap (6) until shut • liquid level could be checked on the display. 4.5 Gun (Nozzle) • Remove cap from gun support (7) • Insert gun (8) • Gun must lock: „click“ 4.6 Switch on... -
Page 12: Operation
Sanosil Q-Jet Advanced Display Operation • To navigate through the main menu use arrow- and number buttons. • To get to a sub-menu or to confirm selection made, i-button press Return / ENTER button. • To get back one step inside the menu, press arrow- button „left“. -
Page 13: Programs
Sanosil Q-Jet Advanced 5.1 Programs Following options are available: - MANUAL One time single disinfection process - AUTOMATIC Automatic mode allows to set a daily / weekly timer - STEP The disinfection process can be split in different steps (max. 3 cycles) - Page 14 Sanosil Q-Jet Advanced Fogging time and consumption (standard / higher / high contamination) WARNING The dosing values below are a recommendation for well pre-cleaned rooms only and are based on many years of experience and are partly supported by test reports. However, the values given are not binding as the disinfection effect can be influenced by many factors.
-
Page 15: Manual Program (Standard)
Sanosil Q-Jet Advanced Manual (Standard) Please read and follow important safety directions on page 6 MANUAL before use! • Choose MANUAL and confirm with ENTER • Enter room’s volume in m (MC: 0-999) and desired MC: _83 concentration of disinfectant, i.e. ml per m... -
Page 16: Automatic Program (Timer)
Sanosil Q-Jet Advanced Automatic (with timer) Please read and follow important safety directions on page 6 before use! • Choose AUTOMATIC mode and confirm by pressing ENTER AUTOMATIC • Pre-set nebulization time is displayed TIME: 30:00 • For pre-setting device (set time prior use),... - Page 17 Sanosil Q-Jet Advanced • Shortening of waiting time: after a minimal waiting time of 120 minutes place a strong dehumidifier in the middle of the room and dehumidify room for at least 60 minutes or air room by opening a window or HVAC. Use full protection equipment when placing dehumidifier! •...
-
Page 18: Step (3 Cycles Program)
Sanosil Q-Jet Advanced Step (max. 3 cycles) The complete disinfection process can be split in different steps The disinfection result (efficacy) will be higher when done in cycles (up to 100%) Please read and follow important safety directions on page 6 before use! •... - Page 19 4356 ml • Afnor T72-281 (2014) with Sanosil S015 Step Fogging times and consumption meeting the norm For details please refer to the Sanosil test reports T319, T320 and T321 Room Fogging time/consumption according the norm Fogging time/consumption according the norm...
- Page 20 Sanosil Q-Jet Advanced INDICATION CAREFUL: Tank must contain enough liquid for entire selected nebulization time! E.g. three hours of nebulization request a completely filled tank! • To activate settings press ENTER STEP: (active = black dot on display) • Start disinfection-program by pressing either „ i“-button...
-
Page 21: Filling(Checking Filling Level)
Sanosil Q-Jet Advanced Filling • When „Filling“ is chosen on the menu, the device will check its filling level. When Tank is full, red LED lights-up [please see 4.3]. Setup Data & Time SETUP Choose mode SETUP DATA & TIME and confirm by pressing ENTER. -
Page 22: Emptying The Tank
Sanosil Q-Jet Advanced 5.11 Emptying the Tank CAUTION Risk of injuries! Do always wear gloves and safety googles when emptying the tank! Before emptying the tank always turn OFF the device and disconnect the power supply plug! Unscrew the maintenance panel and remove it... -
Page 23: Maintenance
Sanosil Q-Jet Advanced Maintenance WARNING Risk of injury! Do always switch off the device and disconnect the power supply cord/plug and empty the tank of the device fully before starting any cleaning or maintenance works! Maintenance works can only be carried out through well-trained personnel or professional electricians. -
Page 24: Regular Visual Check And Maintenance
Sanosil Q-Jet Advanced 6.2 Regular visual check and Maintenance Do not tip the device on its side at any time unless completely empty and dry. Group/Component Operation Cycle Air filter: replace every 10-20hours monthly Air circuit / Structure: visual check of the state... -
Page 25: Troubleshooting
Sanosil Q-Jet Advanced Troubleshooting To determine and search for anomalies it is essential to have this Operation and Maintenance Manual at hand. 7.1 Table Anomaly Possible Cause Remedy Device does not work / does not • Check power supply • Ensure power supply to device respond •... -
Page 26: Warranty
& tear as well as consumable parts (e.g, air filter, etc.). Sanosil Ltd / CleanService Group Ltd. (manufacturer) will have the choice to repair the device, to replace it or to reimburse the actual paid amount. A warranty service does not extend the length of the warranty. -
Page 27: Declaration Of Conformity
Sanosil Q-Jet Advanced CE-Declaration of Conformity... - Page 28 Sanosil Q-Jet Advanced Sanosil Ltd. Eichtalstrasse 49 CH-8634 Hombrechtikon e-mail: info@sanosil.com www.sanosil.com Tel.: +41 55 254 00 54 Fax: +41 55 254 00 59...
