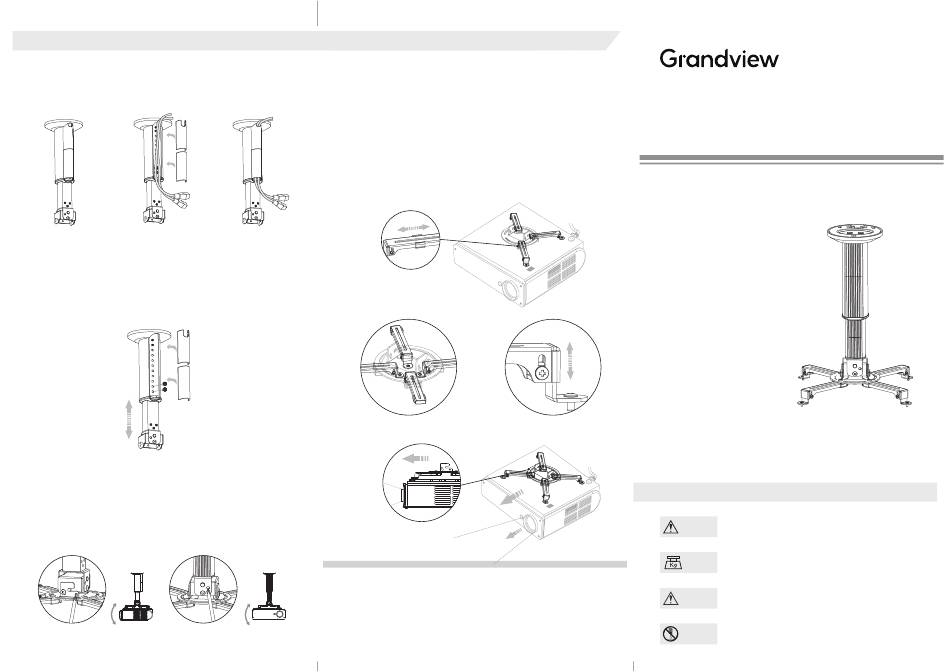

Grandview GPCM-D3040 Instruction Manual

Details of installation

Wires collection

Take apart the ornament cap of main bar (2-5) after connecting the
Gpcm Main Bar Overview to the fixation (1-1), then stay the power
cord into the storage gap. At last, re-install the ornament cap of main
bar (2-5) as figure 6、 7 and 8.
figure 6 figure 7

Height Adjustment

Take apart the ornament cap of main bar (2-3) and loosen the front
positioning screws. Adjust the subsidiary bar (2-3) to reqiured
position, and then install the ornament cap of main bar (2-3) as figure
9 (the main bar of GPCM-D3040 is seperated by 8 segments, each
segment is 16mm; the main bar of GPCM-D4060 is seperated by 15
segments, each segment is 16mm)
figure 9

Angle Adjustment

1.Loosen the positioning screws (front and back) for adjusting the
angle, and then rotate the screwdriver for fine turning to the required
angle as figure 10.
2.Loosen the positioning screws (left and right) for adjusting the angle,
and then rotate the screwdriver for fine turning to the required angle as
figure 11.
figure 10 figure 11
The angle of
vertical tilt:±15°

Installation of main bar

1.Firstly, please confirm how many installation holes the projector has
3 or 4.
2.If there are 3 holes, the installation arms (4-2) need to be taken apart
from Installation bracket firstly. Connect 3 installation arms(4-2) to the
projector, and then connect the installation arms (4-2) to the installation
base (4-5) However,the installation base needs to be the center of
projector. Figure 12.
3.Connect the installation arms to the projector conversely if the
distance of installation holes is less than 120mm. Connect the
installation arms (4-2) to the installation base (4-5) via sliding
installation button (4-4) as figure 13
4.Rotate the adjustable screw(4-3) for adjusting the height of instllation
arms (4-2) if the installation holes are not at the same level as figure 14.
5.The front or back of adjuster must be parallel to the surface of
projector as figure 15.
figure 8
figure 13
The front or back of
adjuster must be
parallel to the surface
of projector
Grandview Crystal Screen
Canada Ltd.
#11- 3751 North Fraser Way,
Marine Way Business Centre,
Burnaby, BC, Canada V5J 5G4
Tel: 1-604-412-9777 Fax: 1-604-412-9796
The nagle of
Website: www.grandviewscreen.ca
horizontal tilt:±5°
figure 12
Scope of
adjustment: 10mm
figure 14
figure 15
Guangzhou Grandview Crystal
Screen Co., Ltd.
No.43,Guomao Road South, Hualong Town,
Panyu District, Guangzhou City, China
Tel: +8620-8489-9499 Fax: +8620-8480-3343
Website: www.grandviewscreen.com
www.grandviewscreen.com.cn
Instruction Manual
Projector Ceiling Mount

Applicable Model

GPCM-D3040
GPCM-D4060
Please read before using
Thank you for purchasing our
products. Please read the
instruction manual carefully
in order to ensure this
projector lift is suitable for
your projection equipment.
Cautious
Warnings
For safety, the minimum weight of ceiling must be 20KG
Weight
The maximum weight of installation bracket is 20Kg
Caution
Please do not incline the projector the extremely.
Do not
Please do not take apart the accessories of projector
take apart
ceiling mount.
