Grandview GPCN-D200 Instruction Manual

Projector ceiling mount;

Advertisement

Quick Links

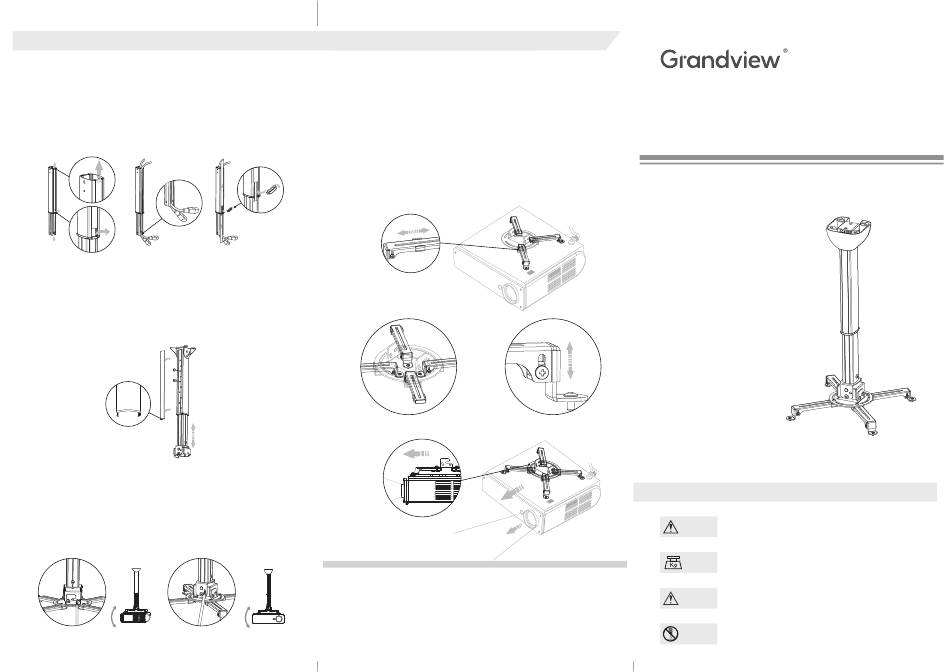

Details of installation
Wires collection
If the volume of power wives are less than diameter of main bar (2-1)
that please put this power wires inside the main bar directly. But if the
volume is greater than the diameter, please take apart back ormanent
board (2-4 and 2-5) and positioning button (2-6) from main bar (2-
1)as figure 8. And then stay the power cord into the main bar (2-1),
figure 9 Finally, re-install the back ornament board (2-4) from the
other end, and then install positioning button (2-6) and back ornament
board (2-5), figure 10.
figure 8
figure 9
Height adjustment
Adjust the main bar (2-1) to required height after taking apart the front
ornament board (2-3) and loosening the front positioning screw. And
then, re-install the front positioning screw and the front ornament
board (2-3), figure 11. (The height of
GPCN-D200 can not be
adjusted )
figure 11
Angle adjustment
1.Loosen the positioning screws (front and back) for adjusting the
angle, and then rotate the screwdriver for fine turning to the required
angle as figure 12.
2.Loosen the positioning screws (left and right) for adjusting the angle,
and then rotate the screwdriver for fine turning to the required angle as
figure 13.
figure 12
The angle of
figure 13
vertical tilt:±15°
Installation of main bar
1.Firstly, please confirm how many installation holes the projector has?
3 or 4
2.If there are 3 holes, the installation arms (4-3) need to be taken apart
from Installation bracket firstly. Connect 3 installation arms(4-3) to the
projector, and then connect the installation arms (4-3) to the installation
base (4-6) However,the installation base needs to be the center of
projector. Figure 14.
3.Connect the installation arms to the projector conversely if the
distance of installation holes is less than 120mm. Connect the
installation arms (4-3) to the installation base (4-6) via sliding
installation button (4-5) as figure 15
4.Rotate the adjustable screw (4-4) for adjusting the height of instllation
arms (4-3) if the installation holes are not at the same level as figure 16.
5.The front or back of adjuster must be parallel to the surface of
projector as figure 17.
figure 10
figure 15
The front or back of
adjuster must be
parallel to the surface
of projector
Grandview Crystal Screen
Canada Ltd.
#11- 3751 North Fraser Way,
Marine Way Business Centre,
Burnaby, BC, Canada V5J 5G4
Tel: 1-604-412-9777
Fax: 1-604-412-9796
The nagle of
Website: www.grandviewscreen.ca
horizontal tilt:±5°
figure 14
Scope of
adjustment: 10mm
figure 16
figure 17
Guangzhou Grandview Crystal
Screen Co., Ltd.
No.43,Guomao Road South, Hualong Town,
Panyu District, Guangzhou City, China
Tel: +8620-8489-9499 Fax: +8620-8480-3343
Website: www.grandviewscreen.com
www.grandviewscreen.com.cn
Instruction Manual
Projector Ceiling Mount
Applicable Model
GPCN-D200
GPCN-D3040
GPCN-D4060
Please read before using
Thank you for purchasing our
products. Please read the
instruction manual carefully
in order to ensure this
projector lift is suitable for
your projection equipment.
Cautious
Warnings
For safety, the minimum
weight
of ceiling must be 10KG
Weight
The maximum weight of installation bracket is 10Kg
Caution
Please do not incline the projector the extremely.
Do not
Please do not take apart the accessories of projector
take apart
ceiling mount.
