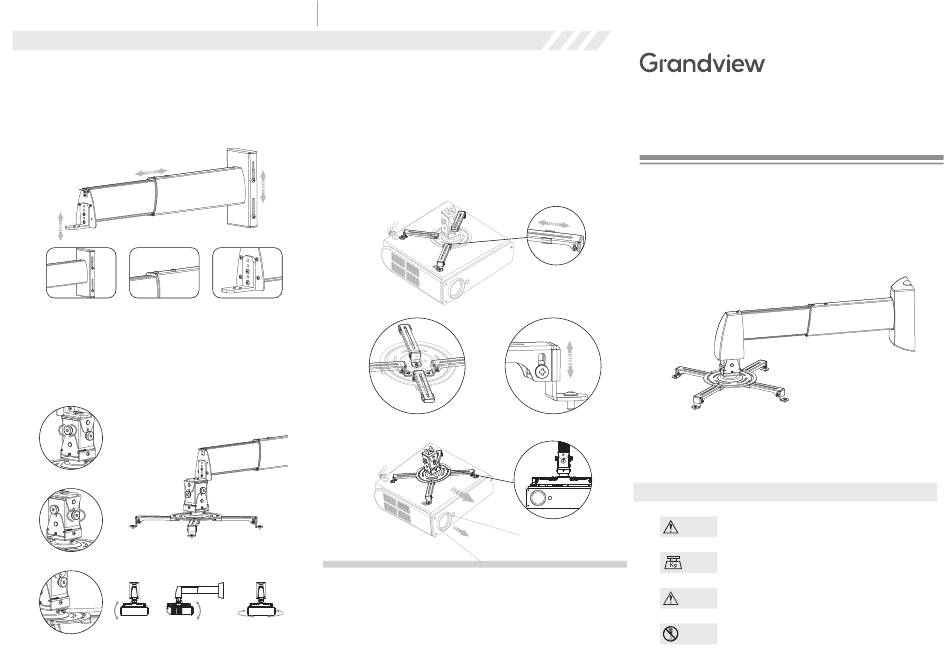

Details of installation
Height and length adjustment
1.Loosen the positioning screws of low board (2-2), the height of GPCP
Main Bar Overview can be adjusted (the maximum height: 45mm) as
figure 11.
2.Loosen the positioning screws of main bar (1-4), the length of
subsidiary bar (1-3) can be adjusted (check about the data of scope for
installation) as figure 12.
3.Loosen the positioning screws of installation board (1-5), the height
of installation board (1-5) can be adjusted (the maximum height: 30mm)
as figure 13.
figure 11
figure 12
Angle Adjustment
1.Horizontal adjustment: rotate the adjusting button (3-2) for horizontal
angle, figure 14
2.Vertical adjustment: rotate the adjusting button (3-3) for vertical
angle, figure 15
3.Horizontal rotation adjustment: loosen the rotation adjusting screw
(4-2), the installation base can be rotated by 360°; fasten the rotation
adjusting screw (4-2) after deciding the angle.figure 16
figure 14
figure 15
The nagle of
The angle of
horizontal tilt:±8°
vertical tilt:±15°
figure 16
Installation of main bar
1.Firstly, please confirm how many installation holes the projector has?
3 or 4.
2.Install the required installation arms (4-3) to Installation bracke( 4-
1) And then, installation arms(4-3) to the projector, and then connect
the installation arms (4-3) to the installation base (4-6) However,the
installation base needs to be the center of projector. Figure 17
3.Connect the installation arms to the projector conversely if the
distance of installation holes is less than 120mm. Connect the
installation arms (4-3) to the installation base (4-6) via sliding
installation button (4-5) as figure 18
4.Rotate the adjustable screw (4-4) for adjusting the height of instllation
arms (4-2) if the installation holes are not at the same level as figure 19.
5.The front or back of adjuster must be parallel to the surface of
projector as figure 20.
figure 13
figure 18
Grandview Crystal Screen
Canada Ltd.
#11- 3751 North Fraser Way,
Marine Way Business Centre,
Burnaby, BC, Canada V5J 5G4
Tel: 1-604-412-9777
Fax: 1-604-412-9796
R
otation 360
:
°
Website: www.grandviewscreen.ca
figure 17
Scope of
adjustment: 10mm
figure 19
The front or back of
adjuster must be
parallel to the surface
figure 20
of projector
Guangzhou Grandview Crystal
Screen Co., Ltd.
No.43,Guomao Road South, Hualong Town,
Panyu District, Guangzhou City, China
Tel: +8620-8489-9499 Fax: +8620-8480-3343
Website: www.grandviewscreen.com
www.grandviewscreen.com.cn
Instruction Manual
Projector Wall Mount
Applicable Model
GPCP-E4060
GPCP-E6090
GPCP-E90150
Please read before using
Thank you for purchasing our products. Please read the instruction
manual carefully in order to ensure this projector lift is suitable for your
projection equipment.
Cautious
Warnings
For safety, the minimum
weight
of ceiling must be 20Kg
The maximum weight of installation bracket is 20Kg
Weight
(note: the installation bracket's maximum weight of GPCP-E90150 is 15kg)
Caution
Please do not incline the projector the extremely.
Do not
Please do not take apart the accessories of projector
take apart
ceiling mount.
