3.6 Upgrade POS4000 EPROM

Depending upon the version of software that is currently in the POS4000 console, this
procedure may delete ALL configuration information, including all codes, fleet accounts,
and accounting information. All setup configurations will be reset to factory defaults. To
properly facilitate reprogramming this information, you should print the following reports
BEFORE proceeding.
•
System configuration
•
Pricing report
•
Fleet accounts
•
Accounting reports (those that are used)
•
Message configuration
Perform the following steps to change console software (EPROM):
Disconnect all cables to the POS4000 console
1.
Remove the plastic housing. To do this you must remove 2 screws from the
2.
rear and 2 screws from the bottom of the unit.
The upper chassis must be partially removed. Remove the middle and front
3.
screws along the side of the metal chassis. Loosen the rear two screws on
each side of the chassis. This will allow the top piece to open up revealing
the main circuit board.
Find the EPROM chip, as indicated below:
4.
The EPROM chip has a small window on the top surface that may or may not
be covered with an adhesive label.
Document Number:
Document Name:
W A S H

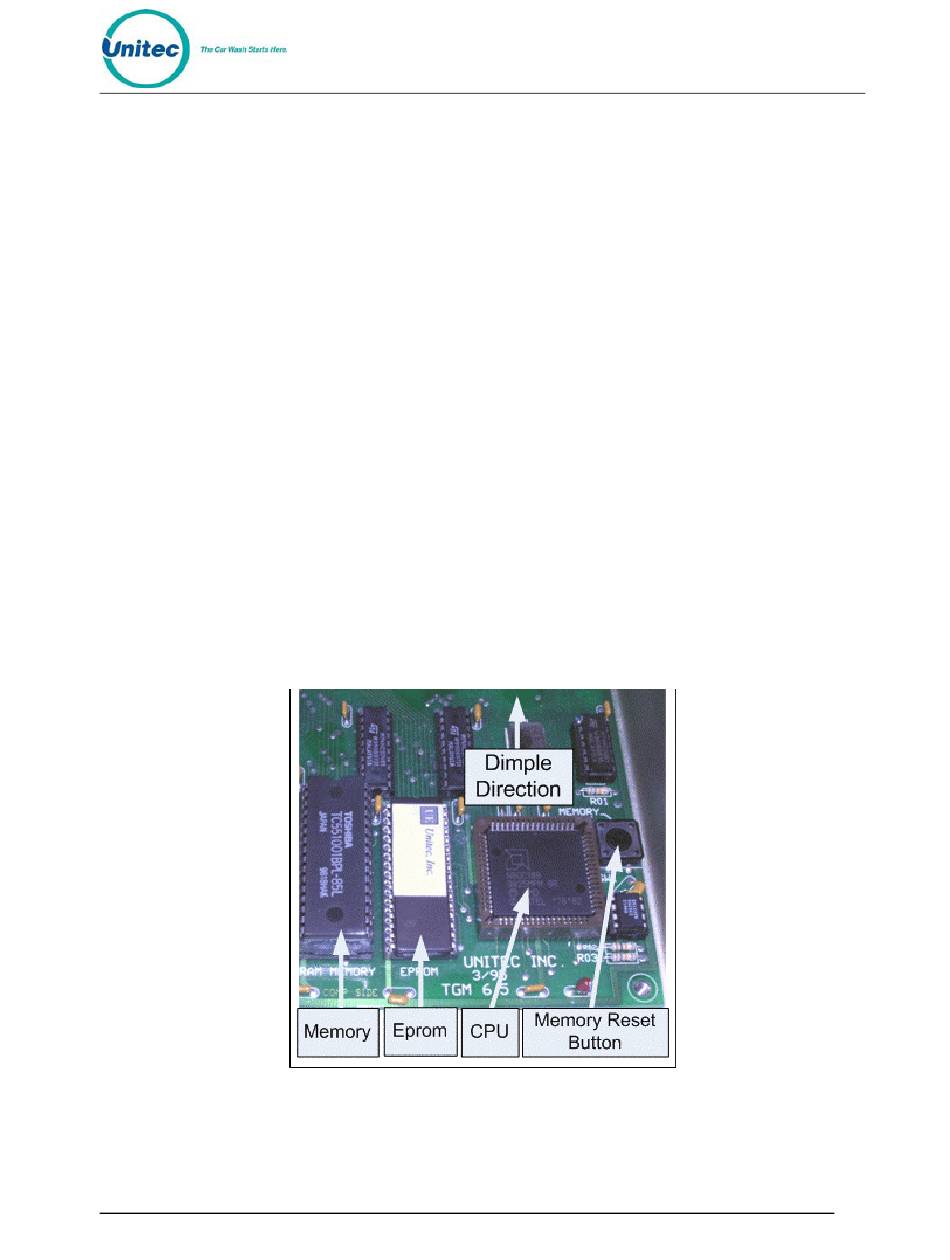

Figure 4. POS EPROM Location
