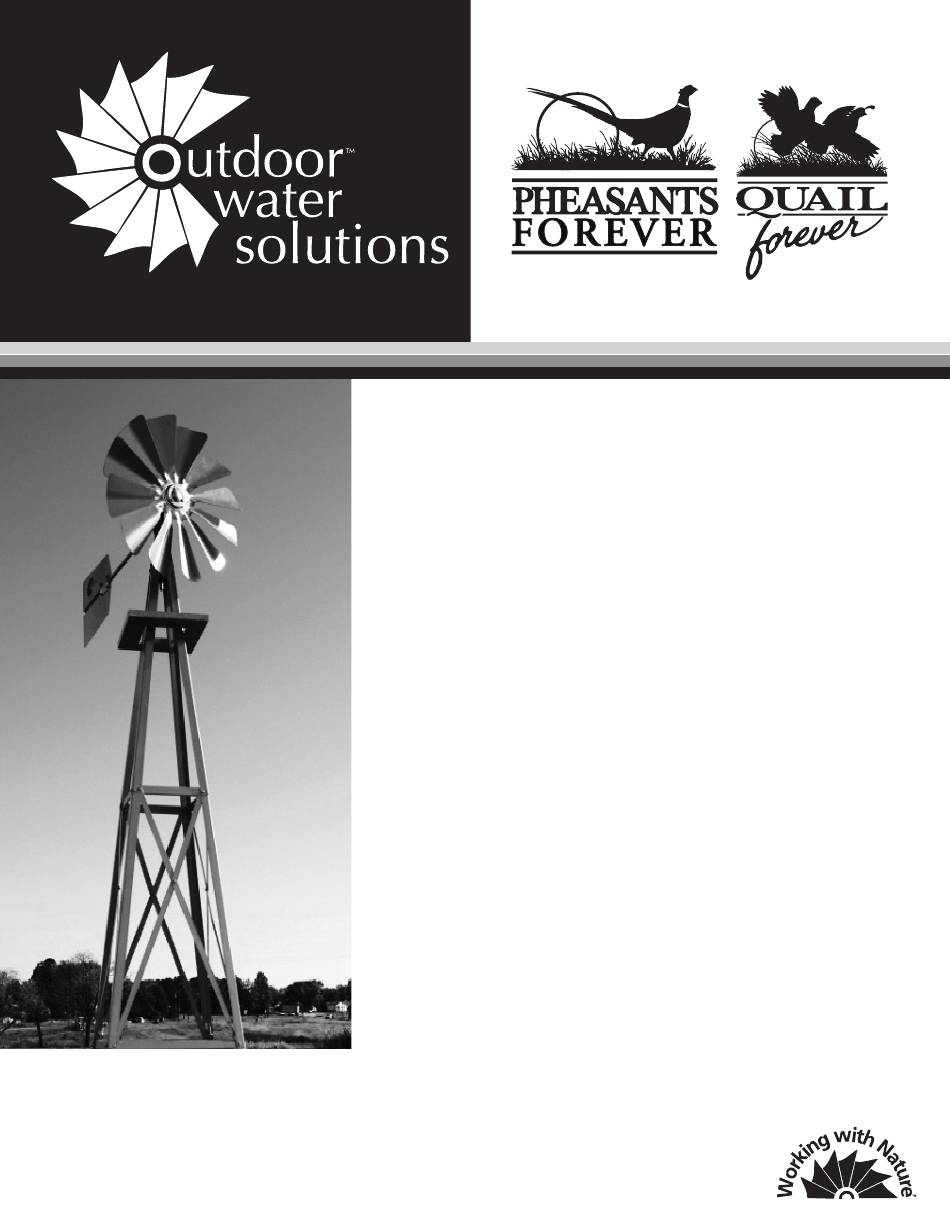

- Page 1 ® Pheasants Forever / Quail Forever Small Backyard Windmill ™ Installation Manual Customer Service: 1-866-471-1614 Website: www.outdoorwatersolutions.com Springdale, Arkansas 72764 Phone: 1-866-471-1614 • Fax: 1-479-750-9178...
- Page 2 Thank you for purchasing an Outdoor Water Solutions Backyard Windmill™. We designed this traditional style windmill with the same great engineering as our full-size aeration windmills. The following is the complete manual for the assembly of the OWS Backyard Windmill™, company contact information, and a copy of our 1-Year Workmanship and parts Warranty.
- Page 3 (Pre-Assembled) 21½” Cross Member (4) Stake Clamps (4) and ¼" x 1" bolts with nuts (4) (to tighten the stake clamps around the stakes) Anchor Bracket Installation Outdoor Water Solutions, Inc. Installation Manual Page 2 of 7 Small Backyard Windmill™...
- Page 4 (See Figure 6.) Make sure that the anchor bracket is leaning outwards at the top as you’ll need to install your anchor rods through the bracket once the windmill has been assembled. Outdoor Water Solutions, Inc. Installation Manual Page 3 of 7 Small Backyard Windmill™...
- Page 5 Install the decorative maintenance platform using 4 of the ¼" x ½" bolts and nuts. (See Figure 9.) Figure 8 Figure 9 You have now completed assembling the tower of your Backyard Ornamental Windmill. Outdoor Water Solutions, Inc. Installation Manual Page 4 of 7 Small Backyard Windmill™...
- Page 6 Then insert the pivot tube through the pivot tube washer, then into the plastic tower top as shown in Figure 12. Outdoor Water Solutions, Inc. Installation Manual Page 5 of 7 Small Backyard Windmill™...
- Page 7 (See Figure 15) 8. Insert the pivot tube through the pivot tube washer, then into the plastic tower, as shown in Figure 12. Outdoor Water Solutions, Inc. Installation Manual Page 6 of 7...
- Page 8 4. Warrantly does not apply to damage resulting from severe weather factors; * Private Insurance Coverage is recommended * 5. If parts other than genuine Outdoor Water Solutions™ parts are utilized for repair or attached to an Outdoor Water Solutions Windmill system, warranty coverage may be void;...
