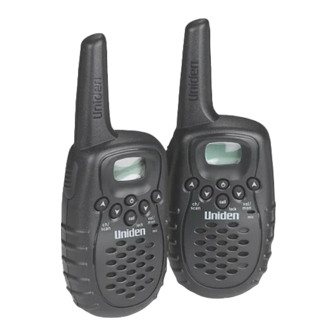

Uniden uh036sx-4 Quad Pack Operating Manual

Uniden operating guide radio uh036sx-4
Hide thumbs

Advertisement

Quick Links

uh036sx-4
Quad Pack
Operating
Guide
To bring outstanding wireless communication products
to people's lives throughout the world.

Advertisement

loading

  Also See for Uniden uh036sx-4 Quad Pack

  Related Manuals for Uniden uh036sx-4 Quad Pack

  Summary of Contents for Uniden uh036sx-4 Quad Pack

  • Page 1 Quad Pack Operating Guide To bring outstanding wireless communication products to people's lives throughout the world.
  • Page 2: Control & Indicators

    4 Channel/scan down Key 5 Duplex Key 6 Speaker 7 Power On/Off Key 8 Volume up/mon (monitor) Key INCLUDED IN YOUR uh036sx-4 QUAD PACK uh036sx x 4 Belt Clip x 4 Operating Guide 9 Volume down/mon (monitor) Key 10 Microphone...
  • Page 3: Getting Started

    GETTING STARTED BATTERY WARNING To retain the previous user settings, the UH036SX will continue to use a small amount of battery power when switched off. To prevent the batteries from running down, remove them from the radio if the UH036SX will not be used for long periods. BATTERY INSTALLATION Your UH036SX radio uses 3 AAA ALKALINE batteries for power.
  • Page 4: Low Battery Alert

    WATER WARNING Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture. BELT CLIP To attach the belt clip: Slide the belt clip until it snaps into place. To remove the belt clip:...
  • Page 5: Operation

    OPERATION POWER ON/OFF Press and hold to turn the Radio ON. The channel number will appear on the display. Press and hold to turn the Radio OFF. VOLUME Press volume to increase or decrease the volume level. The Channel indicator will flash when the volume is being adjusted.
  • Page 6: Selecting Channel

    SELECTING CHANNEL Press channel desired channel. TO TRANSMIT AND RECEIVE The UH036SX uses the 40 UHF-CB Channels. For your reference a list of the available channels and corresponding frequencies is printed on page 10. 1. The transmit power of the UH036SX is 500mW which will provide a range of up to 3+ Km.
  • Page 7 For maximum range and extended the life of the batteries, avoid touching the antenna with your hand when transmitting. RANGE...
  • Page 8: To Operate In Duplex Mode (Repeaters)

    AUTOMATIC SQUELCH FEATURE The UH036SX is equipped with an Automatic Squelch system which shuts off weak transmissions and unwanted noise. MONITOR This feature enables users to listen in for weak signals on the current channel at the press of a button. To use monitor, Press and hold Volume icon will begin to flash.
  • Page 9: Power Save

    Operation with the aid of a Repeater Eg. CH1 is being used in your area for repeater use. Press momentarily. The appears. Press again to deactivate the duplex operation. UH036SX will return to normal operation. POWER SAVE Your UH036SX has a unique circuit designed to dramatically extend the life of the batteries.
  • Page 10: Drop-Out Delay

    To initiate scanning, 1. Assuming the unit is on CH1 when switched on. 2. Press and hold Channel for 3 seconds and scanning starts. 3. Press Channel to cancel scanning. If Channel paused on a channel, scanning will be resumed. DROP-OUT DELAY While scanning, the UH036SX stops at a busy channel and receives a transmission.
  • Page 11: Uhf Channels & Frequencies

    UHF CHANNELS & FREQUENCIES Please follow these guidelines for channel use in Australia: • Channels 05 and 35 are Emergency Channels. • Channel 11 is a Calling Channel. • Channels 22 and 23 are for telemetry and telecommand applications and TX should be avoided on these channels. General communication is accepted on all other channels with these guidelines: •...
  • Page 12: Warranty

    (D) Repaired by someone other than an authorized Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, or (F) Where the Serial Number label of the product has been removed or damaged beyond recognition.
