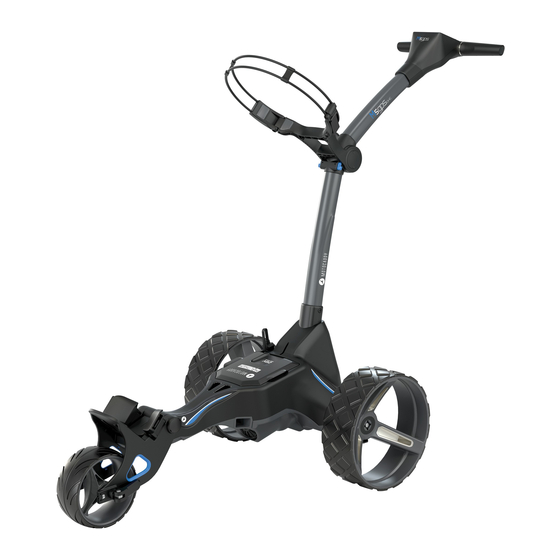

M5 GPS / M5 GPS DHC Electric Trolley
Distance Measurement Device (DMD) features are legal to use when local USGA and R&A
rule 14-3 is in effect. Always check local and competition rules prior to commencing play
Visit www.motocaddy.com/instructions for other Motocaddy instructions including translations
Instruction Manual
EN
REGISTERONLINE
www.motocaddy.com/warranty
IMPORTANT: Scan the QR code to ensure
that your M5 GPS software remains up to
date and performance is always optimised

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M5 GPS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motocaddy M5 GPS

Summary of Contents for Motocaddy M5 GPS

  • Page 1 M5 GPS / M5 GPS DHC Electric Trolley Instruction Manual REGISTERONLINE www.motocaddy.com/warranty IMPORTANT: Scan the QR code to ensure that your M5 GPS software remains up to date and performance is always optimised Distance Measurement Device (DMD) features are legal to use when local USGA and R&A rule 14-3 is in effect.

  • Page 2: Table Of Contents

    Unfolding your Trolley ..............10 Course Updates ................27 Folding your Trolley ..............11 Smartphone Notifications / Motocaddy App Installation ..28 Upper & Lower Bag Supports ........... 12 Enabling Bluetooth / Pairing your Phone ....... 29 Adjusting the Bag Supports ............13 Notification Settings / Notification Stacking ......

  • Page 3: Registration / Serial Number / Information About Dhc

    It is recommended that you always use the latest firmware version to enable you to take advantage of new features and system improvements. You can register your email address to join our dedicated M5 GPS mailing list by scanning the QR code or visiting www.motocaddy.com/m5gps.

  • Page 4: Safe Use / Trolley Care

    Safety cut-out This Motocaddy trolley is fitted with a timed safety cut-out feature. Once started the trolley will automatically cut power to the motor after ten minutes to prevent any possible damage to the trolley. Pressing the 'On/Off' button will restart the trolley.

  • Page 5: Trolley Care / Battery Care & Advice

    Trolley Care / Battery Care & Advice This Motocaddy trolley is designed to require very little maintenance. We do however recommend giving your trolley regular checks to ensure: • There is no build up of excess mud and dirt •...

  • Page 6: Charging Instructions / Lithium Battery Care

    Charging your Lithium Battery / Lithium Battery Care Charging your Lithium Battery Unplug the Lithium battery from the trolley. This should always be performed before folding the trolley to avoid damage to the battery and/or trolley Plug the charger into your mains supply Attach the battery cable to the charger matching black to black and grey to grey When the charging LED indicator has turned green, the battery is fully charged and ready to be used RED - Battery charging...

  • Page 7: Lithium Battery Care

    BMS may switch-off the battery. A full battery charge will rectify this problem. Motocaddy golf trolleys are designed to work with the BMS system installed in the Lithium batteries and the voltage meter is also synchronised to work in conjunction with the battery. If for any reason the voltage on the battery falls below the low battery warning on the trolley, then the BMS may disable the battery to protect it.

  • Page 8: Attaching The Wheels / Inverting The Wheels

    Attaching the Wheels / Inverting the Wheels Attaching the Wheels There is a left and a right wheel and it is important that you attach them on the correct side, otherwise the trolley will not move. There is an “L” and “R” on the inside of the wheel on the central hub.

  • Page 9: Front Wheel Alignment

    Front Wheel Alignment Adjusting the Front Wheel Alignment In the unlikely event that your trolley is not tracking in a straight line, the alignment of the front wheel can be adjusted to rectify the fault. This problem can be caused by a number of factors including a slightly loose bag support or an unevenly packed golf bag.

  • Page 10: Unfolding Your Trolley

    Unfolding your Trolley Unfolding your Trolley We recommend unfolding your trolley once the wheels have been un-inverted and reattached (see page 8). Lift the upper bag support slightly and release the upper latch (fig. 1) Unfold the handle and re-secure the latch (fig. 2) Release the lower latch (fig.

  • Page 11: Folding Your Trolley

    Folding your Trolley Folding your Trolley Release the lower latch (fig. 1). The auto-open stand will also be activated Fold the frame forward until fully extended (fig. 2). The front wheel will automatically fold underneath Release the upper latch and fold the handle back until the trolley is fully folded (fig. 3) Re-secure both latches.

  • Page 12: Upper & Lower Bag Supports

    Fig 1 Lower Bag Supports This Motocaddy trolley is fitted with the EASILOCK™ bag attachment system. If you are using an EASILOCK™ compatible golf bag please follow these simple instructions: Remove the two pre-fitted lower bag straps by depressing the rear button and sliding (fig. 3) Match up the indicating line on the golf bag with the line on the lower bag support Lower the bag until the pins lock in position.

  • Page 13: Adjusting The Bag Supports

    Adjusting the Bag Supports Fig 1 Adjusting the Bag Supports The bag support straps are manufactured from elasticated material to allow your golf bag to be held tightly in position. The strap should be adjusted to be reasonably tight around the golf bag: Unclip the elasticated straps from the housing by pulling outwards in the direction shown (fig.

  • Page 14: Equipment Overview

    Equipment Overview Equipment Overview LCD Touchscreen Display USB Charging Port (under handle) Upper Bag Support Upper Release Latch Battery Connector Battery Battery Tray EASILOCK™ Lower Bag Support Front Wheel 10. Motor (under Battery Tray) 11. Front Wheel Alignment Adjusters 12. Rear Wheel Release Button 13.

  • Page 15: Starting, Stopping & Changing Speed / Battery Meter

    Battery Meter The M5 GPS includes an on-screen battery meter in the top right corner which provides an indication of remaining battery capacity. The battery bar is green when fully-charged. The bar will gradually reduce while turning amber and then red as battery capacity reduces.

  • Page 16: Usb Charging / Clock

    Fig 1 - Home Screen - Clock The M5 GPS includes a clock which is visible on the Home (fig. 1) and GPS mode (fig.2 ) screens. The clock will set automatically each time the trolley is turned on and either has a strong enough GPS signal or connects to a WiFi network.

  • Page 17: Adjustable Distance Control

    Press the 'On/Off' button to start the trolley moving Whilst the trolley is running under ADC mode, the Motocaddy symbol will be displayed within the ADC settings box and rotate until the desired distance is reached (fig. 3). The trolley can be stopped by Fig 2 - GPS Mode - ADC pressing the 'On/Off' button once.

  • Page 18: Introduction To Gps Mode / Using Gps Mode

    Introduction to GPS Mode / Using GPS Mode Introduction to GPS Mode The M5 GPS trolley is pre-loaded with over 40,000 worldwide courses and includes front, middle and back of green distances, along with hole information, hazards, score tracking, shot measurement and round timer.

  • Page 19: Gps Mode Overview

    GPS Mode Overview GPS Mode Overview Green Map Back Distance Middle Distance / Dynamic Pin Distance Front Distance Settings Menu Hazards Information Speed Indicator Shot Measurement Scorecard 10. Previous Hole 11. Next Hole 12. Battery Indicator 13. Round Timer 14. Clock 15.

  • Page 20: Dynamic Pin Location / Hole Advancement

    Dynamic Pin Location / Hole Advancement Dynamic Pin Location The M5 GPS allows you to move the location of the pin to give a more accurate distance measurement. Fig 1 - GPS Mode - Pin Location Touch the point on the green that you want to move the pin to and the centre distance will update (fig. 1).

  • Page 21: Hazard Information

    Hazard Information Hazard Information The M5 GPS also includes a list of on-course hazards. You can view the hazards for the hole you are currently playing by selecting “Hazards” at the bottom of the GPS mode screen (fig. 1). Once selected, the screen will provide distances to the closest four hazards (fig.

  • Page 22: Shot Measurement / Units Of Measure

    Shot Measurement It is possible to use your M5 GPS to measure the length of a shot taken. Distances are measured using GPS co-ordinates, which means that you do not need to walk in a straight line between shots to provide an accurate measurement.

  • Page 23: Round Timer / Tee Selection

    Round Timer / Tee Selection Round Timer Fig 1 - GPS Mode - Round Timer The round timer is displayed at the top of the GPS mode screen next to the clock (fig. 1) and will start counting as soon as you enter GPS mode and select a course. You can view, pause and reset the timer (fig.

  • Page 24: Score Tracking / Ending Your Round

    Score Tracking You can use your M5 GPS to keep track of your score and access a score summary at any point during the round. To enter a score, select the scorecard logo (fig. 1) at the bottom right corner of the GPS screen.

  • Page 25: Aed Locator & Cpr Instructions

    "AED Locator" within the home settings menu and selecting "On" (terms & conditions apply). If the course you are playing has an on-course defibrillator and has registered details on the Motocaddy AED database, the main GPS screen will display an AED Icon at the top of the screen (fig. 1).

  • Page 26: Connecting To Wifi / Firmware Updates

    Connecting to WiFi / Firmware Updates The M5 GPS is able to easily update both firmware and courses via WiFi powered Over-the-Air updates. Connecting to a WiFi Network Before attempting an Over-the-Air (OTA) update, the trolley will need to be connected to a WiFi network: From the home screen select “Settings”...

  • Page 27: Course Updates

    Course Updates Course Updates (OTA) The M5 GPS is pre-loaded with over 40,000 worldwide courses. To check for an updated course map, the trolley will need to be connected to a WiFi network: Fig 1 - Course Search From the Home screen select “Settings” and then "Update Course"...

  • Page 28: Smartphone Notifications / Motocaddy App Installation

    Android Devices Once installed, select the Motocaddy GPS app and it will load the registration screen. When using the app for the first time, you will be prompted to allow the app to access your location and it is important that this is enabled to use standalone GPS features within the app.

  • Page 29: Enabling Bluetooth / Pairing Your Phone

    Fig 1 - Home Settings Menu Pairing your Phone To pair your M5 GPS to a compatible smartphone, you must first ensure Bluetooth is enabled on both devices (see above) and then follow the below steps: Open the Motocaddy app on your phone and select "Pair Device" button (fig. 2) Select the correct trolley model from the list and select “Next”...

  • Page 30: Notification Settings / Notification Stacking

    Notification Settings It is possible to pre-set which smartphone notification types are displayed on the trolley screen (fig. 1, fig. 2 & fig. 3) using the device ‘Settings’ menu within the Motocaddy app. Fig 1 - Missed Call There are also other app specific notification settings within your phone that need to be enabled for the notifications to be displayed on your trolley.

  • Page 31: Language Settings / Competition Mode

    Language Settings / Competition Mode Language Settings The M5 GPS can be used in a number of different languages: From the home screen select “Settings” and then “Languages” Select preferred language and then "Close" to confirm (fig. 1) Competition Mode It is possible to temporarily disable GPS using the competition mode should competition rules dictate.

  • Page 32: Factory Reset / Demo Mode

    Factory Reset / Demo Mode Factory Reset Should you experience a problem with your M5 GPS, it is possible to reset the trolley back to its original factory default settings: From the home screen select “Settings” and then "Reset all Settings”...

  • Page 33: Introduction To Dhc / Parking Brake

    Introduction to DHC / Using the DHC Parking Brake (DHC models only) The below information is applicable to DHC models ONLY. Introduction to DHC The letters DHC stand for ‘Downhill Control’ and mean that your trolley will automatically maintain a controlled speed whilst travelling down hills.

  • Page 34: Fcc Statement

    FCC Statement FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 35: Declaration Of Conformity

    Declaration of Conformity Model: S1/S1 DHC/S3 PRO/S3 PRO DHC/ S5 CONNECT/S5 CONNECT DHC/S7 REMOTE/ M1/M1 DHC/M3 PRO/M3 PRO DHC/ M5 CONNECT/M5 CONNECT DHC/M5 GPS/ M5 GPS DHC/M-TECH/C-TECH/M7 REMOTE Wednesday January 01, 2020 John Helas Managing Director Page 35...
