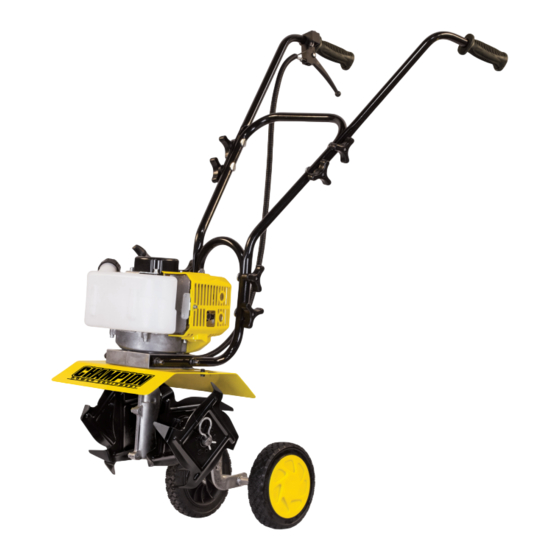

43cc cultivator
Hide thumbs Also See for 100378:
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL
MODEL #100378
43cc cULTivATOR
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
or visit championpowerequipment.com
SAvE THESE iNSTRUcTiONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
Made in China - REV 20191112
Champion Power Equipment, Inc., Santa Fe Springs, CA USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100378 and is the answer not in the manual?

Questions and answers

Lauren
May 1, 2025

How to adjust the idling screw on model 100378

0
1 comments:
Mr. Anderson
May 16, 2025

To adjust the idling screw on the Champion Power Equipment model 100378:

1. Warm up the engine before making any adjustments.
2. Locate the idle speed adjustment screw, which controls the throttle opening at idle.
3. If the engine stops frequently while idling, turn the screw clockwise to increase the idle speed.
4. If the tines continue to rotate after releasing the trigger, turn the screw counterclockwise to reduce the idle speed.

This answer is automatically generated

0
Michael D Jahn
June 7, 2025

How do I remove the protective cap on the idle adjustment screw? It is located well down inside a counterbore.

0
