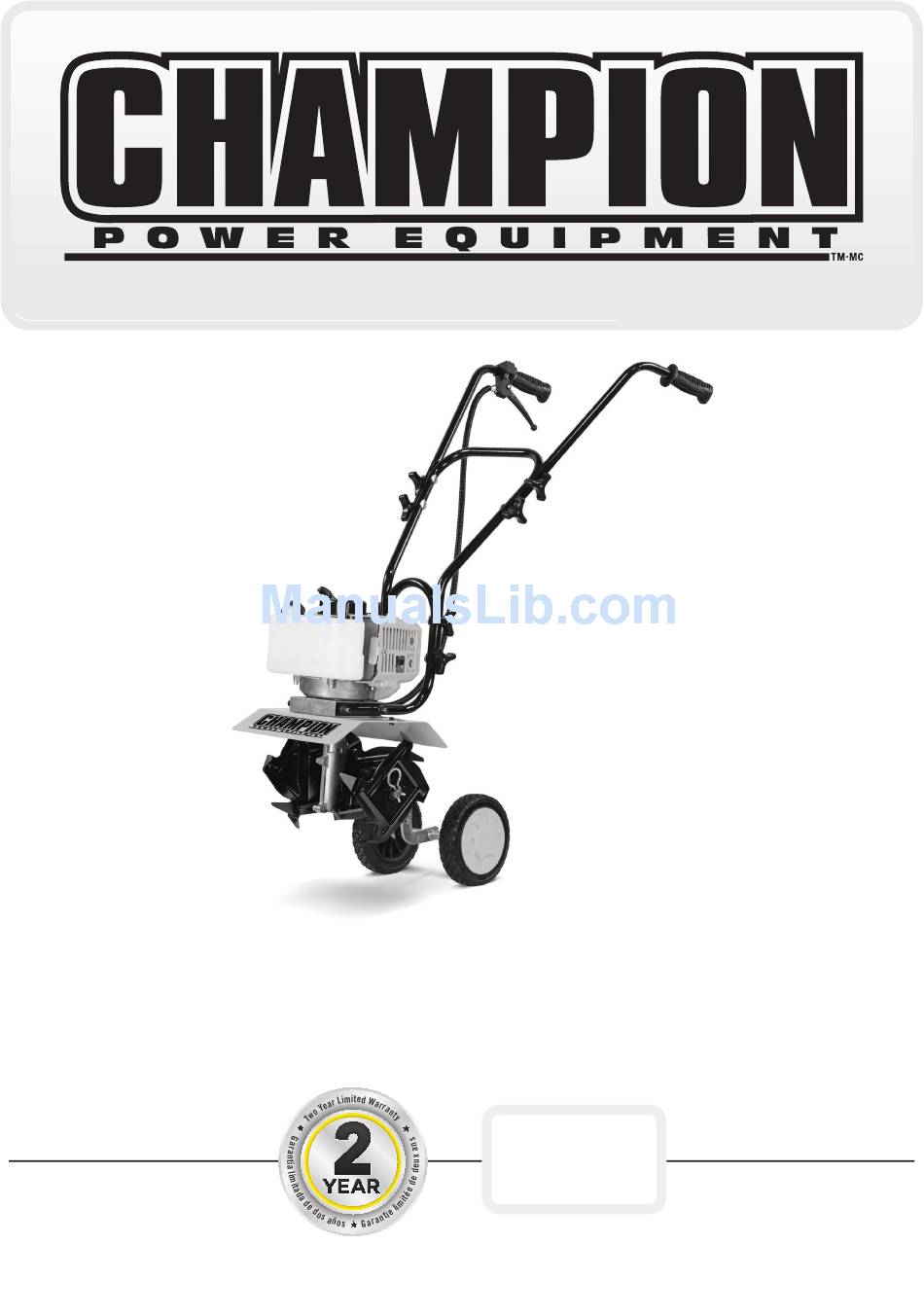

- Page 1 OPERATOR’S MANUAL 43cc CULTIVATOR MODEL NUMBER 100378 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important safety instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 100378-20180822 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
100378 43cc CULTIVATOR TABLE OF CONTENTS Introduction Muffler ............ -
Page 4: Introduction
ENGLISH INTRODUCTION Congratulations on your purchase of a Champion Power Equipment (CPE) product. CPE designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service. -
Page 5: Manual Conventions
100378 ENGLISH MANUAL CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 6: Safety Rules
100378 ENGLISH SAFETY RULES Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product. Symbols Symbol Meaning Precautions that involve your safety. - Page 7 100378 ENGLISH SAFETY RULES WARNING DANGER Sparks can result in fire or electrical shock. Read this manual thoroughly before operating your cultivator. Failure to follow instructions could result When servicing the engine: in serious injury or death. Disconnect the spark plug wire and place it where it cannot contact the plug.
-
Page 8: Things To Do
100378 ENGLISH SAFETY RULES Things To Do DANGER 1. Always keep a firm grip on both handles while the tines are moving and/or the engine is running. Fuel and fuel vapors are highly flammable and BE AWARE!! The tines may coast after throttle extremely explosive. -
Page 9: Things Not To Do
100378 ENGLISH SAFETY RULES Things To Do Cont’d. Things Not To Do Cont’d. 18. Always keep a safe distance between two or more 11. Don’t fuel, refuel or check fuel while smoking, or people when working together. near an open flame or other ignition source. Stop engine and be sure it is cool before refueling. -
Page 10: Controls And Features

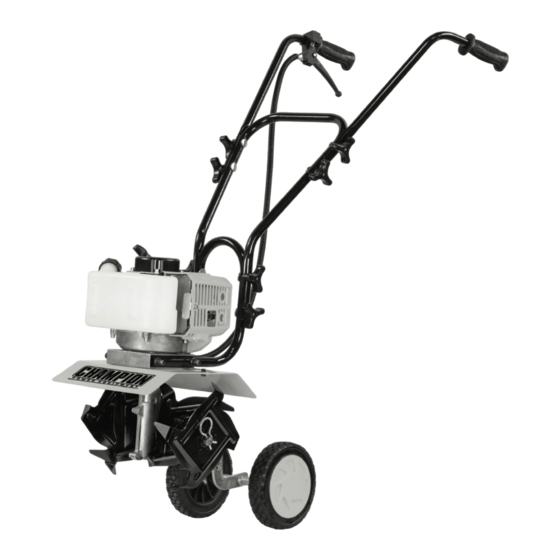

100378 ENGLISH CONTROLS AND FEATURES Read this owner’s manual before operating your cultivator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Cultivator Fender Guard Left Handle Fuel Tank – 0.3 gal (1.1 L), 50:1 ratio Knob Handle Engine –... -
Page 11: Assembly
100378 ENGLISH ASSEMBLY Read this owner’s manual before operating your cultivator. Wheel Assembly If you have any questions regarding the assembly of your 1. Remove the cotter pin from the clevis pin. cultivator, call our help line at 1-877-338-0999. Please have your serial number and model number available. -
Page 12: Handle Assembly
100378 ENGLISH ASSEMBLY Handle Assembly Cont’d Wheel Assembly Cont’d. 5. Snap hubcap to outside of each wheel. right left middle handle handle handle 6. Attach wheel assembly to main body, reverse steps 1-2. Fuel Your cultivator is powered by a two stroke engine which requires a fuel mixture of gasoline and lubricating oil. - Page 13 100378 ESPAÑOL MONTAJE Combustible continuación. IMPORTANTE – Siempre vuelva a mesclar el combustible de 2 tiempos antes de poner combustible en su cultivador. Nunca corra su cultivador en gasolina solamente. Esto dañará su motor y anulará las garantías. – Siempre use un recipiente de gasolina limpio y siempre use gasolina sin plomo con menos de 10% etanol.
-
Page 14: Operation
100378 ENGLISH OPERATION Starting Instructions Starting Your Cultivator for the First Time or When Cold Cont’d. Starting Your Cultivator for the First Time or When Cold Fill the fuel tank with the proper oil/gasoline mixture. (See previous section.) Hand tighten the gasoline cap until it’s snug. -
Page 15: Starting A Warm Engine
100378 ENGLISH OPERATION Starting a Warm Engine Tips for Extending Engine Life Cont’d. 1. Move the engine switch to the “ON” position. WARNING 2. Ensure the choke lever is in the “RUN” position. 3. If there is no fuel in the clear return line, push... - Page 16 100378 ENGLISH OPERATION You Can Even Control Depth Cont’d. You Can Even Control Depth Cont’d. For Big Weeds or Tough Roots: Let your cultivator rock back and forth over the tough spot, until the tines slice through the weed or root.
-
Page 17: Maintenance And Storage
100378 ENGLISH MAINTENANCE AND STORAGE Cultivator Maintenance Clear Blockages From the Fuel Line & Filter Cont’d. How to Check, Clean and Change the Air Filter NOTE Check the air filter every 25 hours of use or more The fuel filter is located inside the tank. -
Page 18: Intake Air Cooling Vent
100378 ENGLISH MAINTENANCE AND STORAGE Intake Air Cooling Vent Cultivator Storage – Never touch the cylinder, muffler, or spark plugs Each fall — or before you store your cultivator for any with your bare hands immediately after stopping the long period — be sure to take these measures: engine. -
Page 19: How To Prepare Your Cultivator For Restarting
100378 ENGLISH MAINTENANCE AND STORAGE How to Prepare Your Cultivator for Restarting In the Spring, when you take your cultivator out of storage, remove the spark plug. Pull the starter cord three or four times to clean oil from the combustion chamber. -
Page 20: Troubleshooting
100378 ENGLISH TROUBLESHOOTING Starting Problems Starting Problems Cont’d If fuel drips too freely, the line may be disconnected If you follow the normal starting procedure, you should from the fuel filter. You’ll find the fuel filter inside have no problem starting your cultivator. But, just in the fuel tank. -
Page 21: Specifications
100378 ENGLISH TROUBLESHOOTING Problem Check Cause Solution Fuel tank Incorrect fuel Drain and fill with correct fuel Fuel filter Fuel filter is clogged Replace fuel filter Let unit sit to air out (15 minutes) or remove spark plug Flooded engine... -
Page 22: Parts Diagram
100378 ENGLISH SPECIFICATIONS Parts Diagram... -
Page 23: Parts List
100378 ENGLISH Parts List Part Number Description Part Number Description 711.200702.00 Cover, Handle Housing, Throttle Cable & 5.1330.114 Connector Wire 711.324010.00 Throttle Lever 711.322014.00 Right Gear Housing 1.896.035 Circlip Ø3.5 1.93.06 Lock Washer Ø6 1.97.1.05 Washer Ø5 1.5789.0640.1 Bolt M6 x 40 711.324020.00... -
Page 24: Engine Parts Diagram
100378 ENGLISH SPECIFICATIONS Engine Parts Diagram... -
Page 25: Engine Parts List
100378 ENGLISH Engine Parts List Part Number Description Part Number Description 1E36FE.9-3 Screw 1E40F-E-4 Top Cover 1E36FE.9-4 Ratchet 1E36F-2C-1 Insulation Gasket 1E36FE.9-1 Starter Rope Reel 1E40F-E-2 Gasket, Muffler 1E36FE.9-5 Starter Rope 1E40F-2E-DZ.2A Muffler Assembly 1E36FE.9-7 Recoil Spring 1E40F-2E-DZ-1 Cover, Muffler 1E36FE.9-8... - Page 26 Please register within ten (10) days Limits of Implied Warranty and Consequential Damage from date of purchase. Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental Repair/Replacement Warranty or consequential claim by anyone from using this product.
- Page 27 United States Environment Protection Agency (U.S. EPA) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2018 small off-road engine (SORE) and engine powered equipment.
- Page 28 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 29 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
