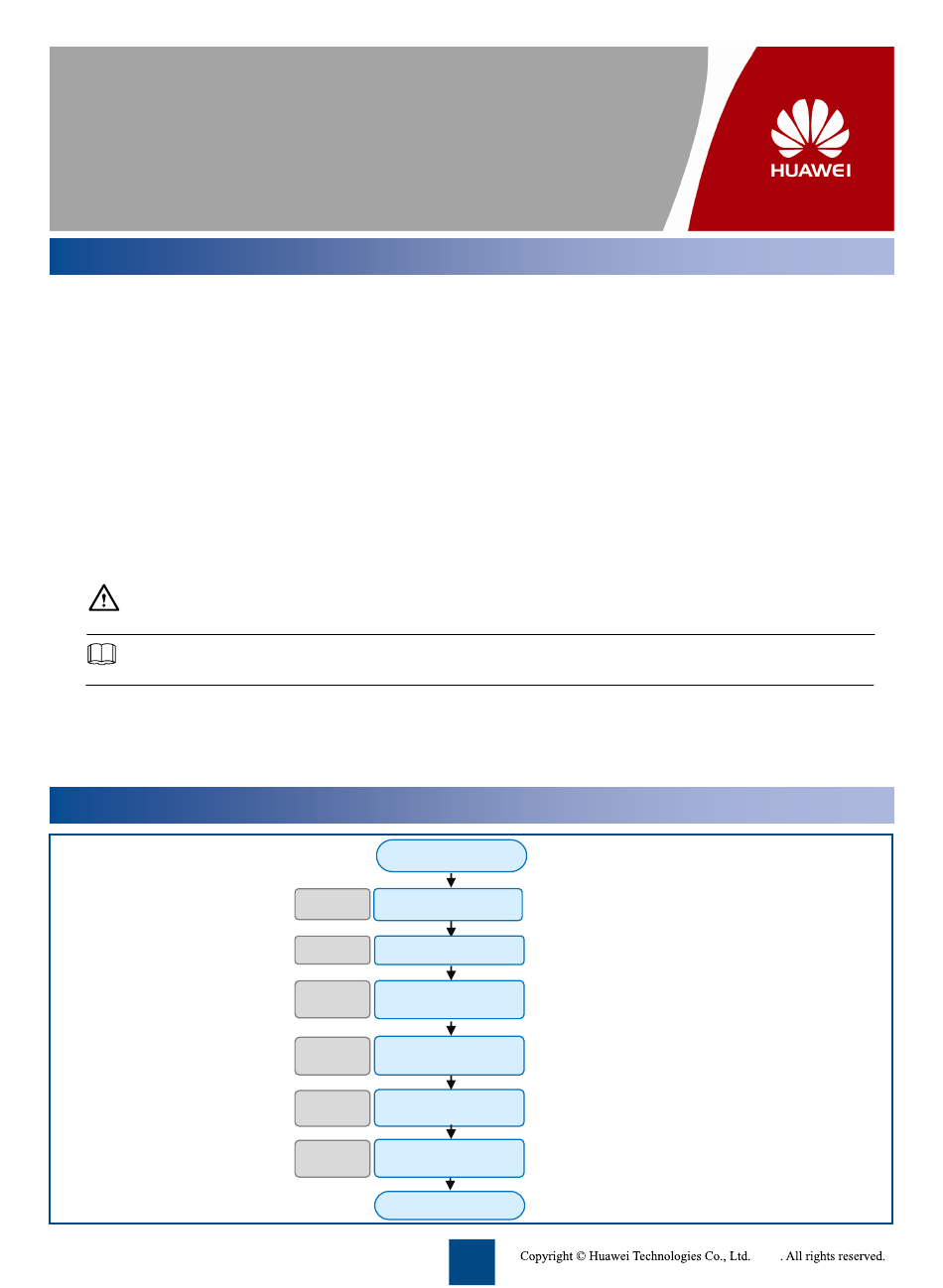

Optix OSN 810
Quick Installation Guide
Issue: 03
Date: 2016-10-20
Safety Information
■
Following All Safety Precautions
Before any operation, read the instructions and precautions in this document carefully to minimize the possibility
of accidents. The Danger, Caution, and Note items in the documents do not cover all the safety precautions that
must be followed. They only provide the generic safety precautions for operations. When operating Huawei
products and equipment, you must comply with safety precautions and special safety instructions related to
corresponding equipment provided by Huawei. The safety precautions in the document are related to only
Huawei products. Huawei is not liable for any consequence that results from the violation of universal
regulations for safety operations and safety codes on design, production, and equipment use.
Complying with the Local Safety Regulations
■
When operating the device, comply with the local safety regulations.
■
Qualified Personnel Only
The personnel in charge of installation and maintenance must be trained and master the correct operating
methods and safety precautions before beginning work.
■
Symbols
CAUTION
NOTE
■
Safety of Personnel
When handling optical fibers, do not stand close to, or look into the optical fiber outlet with unaided eyes.
Protect yourself when drilling holes. Flying dust may hurt your eyes or you may inhale the dust.
When working at a height, be cautious about falling objects.
Installation Process
Indicates a potentially hazardous situation, which if not avoided, could result in
equipment damage, data loss, performance degradation, or unexpected results.
Provides additional information to emphasize or supplement important points of the
main text.
Start
Page3
Chassis outline
Page3-15
Installing Chassis
Installing Fibers
Page16-20
and Cables
Checking the
Page21-22
Installation
Appendix
Page23-31
Labels
Page31-32
End
1
2016
Advertisement
Table of Contents
Related Manuals for Huawei Optix OSN 810
Summary of Contents for Huawei Optix OSN 810
- Page 1 Huawei. The safety precautions in the document are related to only Huawei products. Huawei is not liable for any consequence that results from the violation of universal regulations for safety operations and safety codes on design, production, and equipment use.
-
Page 2: Installation Tools
Installation Tools Marker Flat-head screwdriver Phillips screwdriver Level Φ8 drill bit Hammer drill Measuring tape Protective gloves Hex key [4 mm (0.16 in.)] Wrench Adjustable wrench Diagonal pliers Wire stripper [aperture ≥ 32 mm (1.26 in.)] Claw hammer Fiber binding tape Multimeter... -
Page 3: Installing Chassis
Installing Chassis 1 Chassis Appearance 300mm conversion bracket Cabling cavity 2 Installing Chassis Clearance for a Single OSN 810 in Standard Mode Clearance for a Single OSN 810 in Side-Mounted Mode Recommended Clearances Recommended Clearances Minimum Clearances Minimum Clearances... - Page 4 2 Installing Chassis Installing the OSN 810 on a Pole NOTE Shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm (47.24 in.) to 1600 mm (59.06 in.) high above the ground. Install the OSN 810 mounting brackets Adjust the position of the nut and remove one end of the square-neck bolt from the slot...
- Page 5 2 Installing Chassis Installing the OSN 810 on a Pole Install the OSN 810 onto the main bracket,use an inner hexagon torque screwdriver to tighten the captive screw into the holes on the top of the conversion bracket and main bracket to 5 N· m (44.25 lbf· in.) so that the conversion bracket and main bracket are firmly secured.
- Page 6 Main bracket NOTE The OptiX OSN 810 can be installed on the right or left side of an RRU. Ensure that the front side of the OptiX OSN 810 faces outwards and the cabling cavity can be opened. Install the metal sheet for fixing the RRUs and OSN 810.
- Page 7 2 Installing Chassis Installing the OSN 810 on U-steel NOTE • As shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm (47.24 in.) to 1600 mm (59.06 in.) high above the ground. •...
- Page 8 2 Installing Chassis Installing the OSN 810 on a Wall Disassemble the OSN 810 mounting brackets. Use an M6 inner hexagon torque screwdriver to remove the four inner hexagon screws on the pole installation bracket, and remove the main bracket from the pole installation bracket. Use an M10 torque wrench to loosen the nuts on the two square-neck bolts, and remove the plastic cap, nuts, spring washers, flat washers, square-neck bolts, and pole installation bracket from the auxiliary bracket.
- Page 9 2 Installing Chassis Installing the OSN 810 on a Wall Drill holes at the anchor points, and then insert expansion anchor bolt assemblies. Use a hammer drill with a Ф12 bit to drill holes vertically at the marked anchor points with the depth ranging from 55 mm (2.17 in.) to 60 mm (2.36 in.), use a vacuum cleaner to clear the dust out from inside and around the holes, and measure the distances between holes.
- Page 10 2 Installing Chassis Installing the OSN 810 on a Wall Install the main bracket onto the pole installation bracket, and use an inner hexagon screwdriver to tighten four M6x16 inner hexagon screws to 5 N· m (44.25 lbf· in.) so that the main bracket and pole installation bracket are firmly secured. (1) Main bracket (2) Pole installation bracket Install the OSN 810 onto the main bracket,use an inner hexagon torque screwdriver to tighten the captive screw into the...
- Page 11 2 Installing Chassis Installing the OSN 810 on an IFS06 NOTE An Indoor Floor Installation Support (IFS06) is used for installing indoor RRUs. It is an accessory of RRUs. If the OSN 810 is applied indoors and works with RRUs, you can install the OSN 810 on an IFS06 rack. Disassemble the OSN 810 mounting brackets.
- Page 12 2 Installing Chassis Installing the OSN 810 on an IFS06 (1) Spring washer (2) Rubber washer Attach the main bracket to the pole installation bracket, and use an inner hexagon screw driver to tighten four M6x16 screws to 5 N· m (44.25 lbf· in.) so that the main bracket and pole installation bracket are firmly secured. (1) Main bracket (2) Pole installation bracket...
- Page 13 2 Installing Chassis Installing the OSN 810 on an IFS06 Attach the OSN 810 to the main bracket, and then use an inner hexagon screwdriver to tighten thecaptive screw into the holes of the attachment plate and main bracket to 5 N· m (44.25 lbf· in.) sothat the attachment plate and main bracket are firmly secured.
- Page 14 2 Installing Chassis Installing the OSN 810 on an IFS06 Install the OSN 810 on the lower level from left to right.
- Page 15 2 Installing Chassis Installing the OSN 810 on an IFS06 Optional: When the ambient temperature is equal to or higher than the lowest operating temperature of the OSN 810 and at least 10°C (10°F) lower than the highest operating temperature of the OSN 810, repeat the preceding steps to install the OSN 810 on the higher level.
-
Page 16: Installing Cables
3 Installing Cables Install the PGND cable Connect the OT terminal at one end of the PGND cable to the ground terminal at the OSN 810 bottom and the OT terminal at the other end to the external ground bar. Open the chassis Unlock and loosen the screws from the chassis, and pull the levers outwards and lift them upwards. - Page 17 3 Installing Cables Prepare power cables Cable Color Power connector A cable with a black jacket and two wires inside North American standards: The RTN(+) wire is black and the RNEG(-) wire is blue. European standards: The RTN(+) wire is brown and the RNEG(-) wire is blue. Use the cable diagram label in the cover plate of the Strip the specified length of the sheath off the power cable.
-
Page 18: Installing Power Cables
3 Installing Cables Prepare power cables Tighten the screws using a Phillips screwdriver Connect the NEG(–) terminal of the blue core wire to the negative electrode (–) of the connector, and the RTN(+) terminal of the black or brown core wire to the positive electrode (+) of the connector. - Page 19 Only the junction part and break out cable have metal parts. The lengths of the break out cables on the two sides of the equipment are different. On the OptiX OSN 810, the length of the break out cable is 30 mm.
-
Page 20: Closing The Chassis
3 Installing Cables Installing Outdoor Fibers Use the Phillips screwdriver to loosen the screws of the cable clip, and open the cable clip. Insert the fibers through the silica gel ring into the optical module. Close the cable clip of the installed cables, and use the Phillips screwdriver to tighten the screws of the cable clip. Insert waterproof blocks into vacant cable troughs in the cabling cavity. -
Page 21: Checking The Installation
If the voltage of the power supply does not meet the requirements, do not power on the equipment. • To provide AC power, the OptiX OSN 810 must be equipped with the AC/DC power module. For details about the installation and cabling mode, see the Appendix. - Page 22 2 Checking Power Supply Before Power-On Use a multimeter to measure the resistance between circuit breakers including NEG (-), RTN (+), and PGND. Resistance Between NEG (-) Resistance Between NEG (-) Resistance Between RTN (+) and RTN (+) and PGND and PGND ≤10 Ω...
- Page 23 Appendix 1 Installing the AC/DC Power Module Install spacers onto the conversion bracket of the AC/DC power module. Use an M6 inner hexagon torque screwdriver to remove the conversion bracket on the rear panel of the OSN 810. Attach the conversion bracket of the AC/DC power module onto the rear panel of the OSN 810, and use the M6 inner hexagon torque screwdriver to tighten the captive screws on the attachment plate to 5 N·...
- Page 24 1 Installing the AC/DC Power Module Install the conversion bracket removed from the rear side of the OSN 810 on the side of the OSN 810. In the case of AC power supply, the conversion bracket of the OSN 810 can only be installed on the side of the OSN 810, and the OSN 810 can only be installed in side-mounted mode.
- Page 25 3 Installing Cables for the AC/DC Power Module Install the PGND cable Install the equipotential cable between the OSN 810 and the AC/DC power module, and install the PGND cable of the AC/DC power module. (1) PGND cable (2) Equipotential cable Installing the Output Power Cable of the AC/DC Power Module Strip the specified length of the sheath off the power cable to be connected to the OSN 810 to expose the intact shield layer.
- Page 26 Making a 3-Pin Connector for Connecting the Power Cable to the AC/DC Power Module Unit: mm Use the cable diagram label in the cover plate of the Use a cable cutter and a wire stripper to strip the jacket off cabling cavity of the AC/DC power module to measure the power cable according to the measured length.
- Page 27 Making a 3-Pin Connector for Connecting the Power Cable to the AC/DC Power Module Insert the cord end terminals on the brown, blue, and green Loosen the screws using a flat-head screwdriver. end yellow wires to the L, N, and PE ports of the connector, respectively, and use an M3 flat-head torque screwdriver to tighten the screws on the connector to 0.45 N·...
- Page 28 Making an OT Terminal for Connecting the Power Cable of the AC/DC Power Module to the Surge Protector Connect the corrugated pipes. Determine the lengths of the power cable segments for different operations based on the label on the surge protector. Strip a specified length of the jacket and shield layer Strip the jacket off each core wire of the power cable .
- Page 29 Installing the Power Cable for Connecting the AC/DC Power Module to the Surge Protector Use an M5 Phillips screwdriver to loosen the three Use an M4 Phillips screwdriver to loosen the screws on screws on the cover plate of the cabling cavity of the the cable clips and open the cable clips.
- Page 30 Installing the Power Cable for Connecting the AC/DC Power Module to the Surge Protector Insert the 3-pin connector at one end of the cable to the L, N, and PE ports of the AC/DC power module, and thread the other end through the cable aperture with the OUT silkscreen on the surge protector. Connect the OT terminal of the brown wire to the L2 port, the OT terminal of the blue wire to the N2 port, and the OT terminal of the green-yellow wire to the ground terminal.
- Page 31 Closing the Cover Plate Close the cover plate of the cabling cavity of the AC/DC Close the cover plate of the surge protector. power module, and use an M5 torque screwdriver to partially tighten the screws on the cover plate in the sequence shown in the figure.
-
Page 32: People's Republic Of China
If a cable is routed vertically, the label needs to face to the right. If a cable is routed horizontally, the label needs to face downwards. HUAWEI TECHNOLOGIES CO., LTD. Huawei Industrial Base Bantian Longgang Shenzhen 518129 People's Republic of China...
