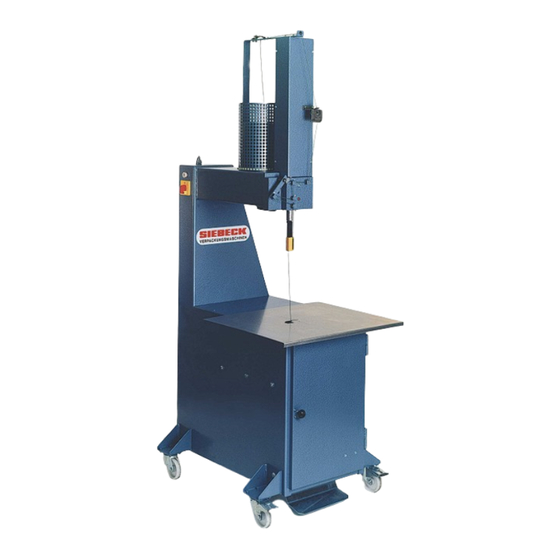

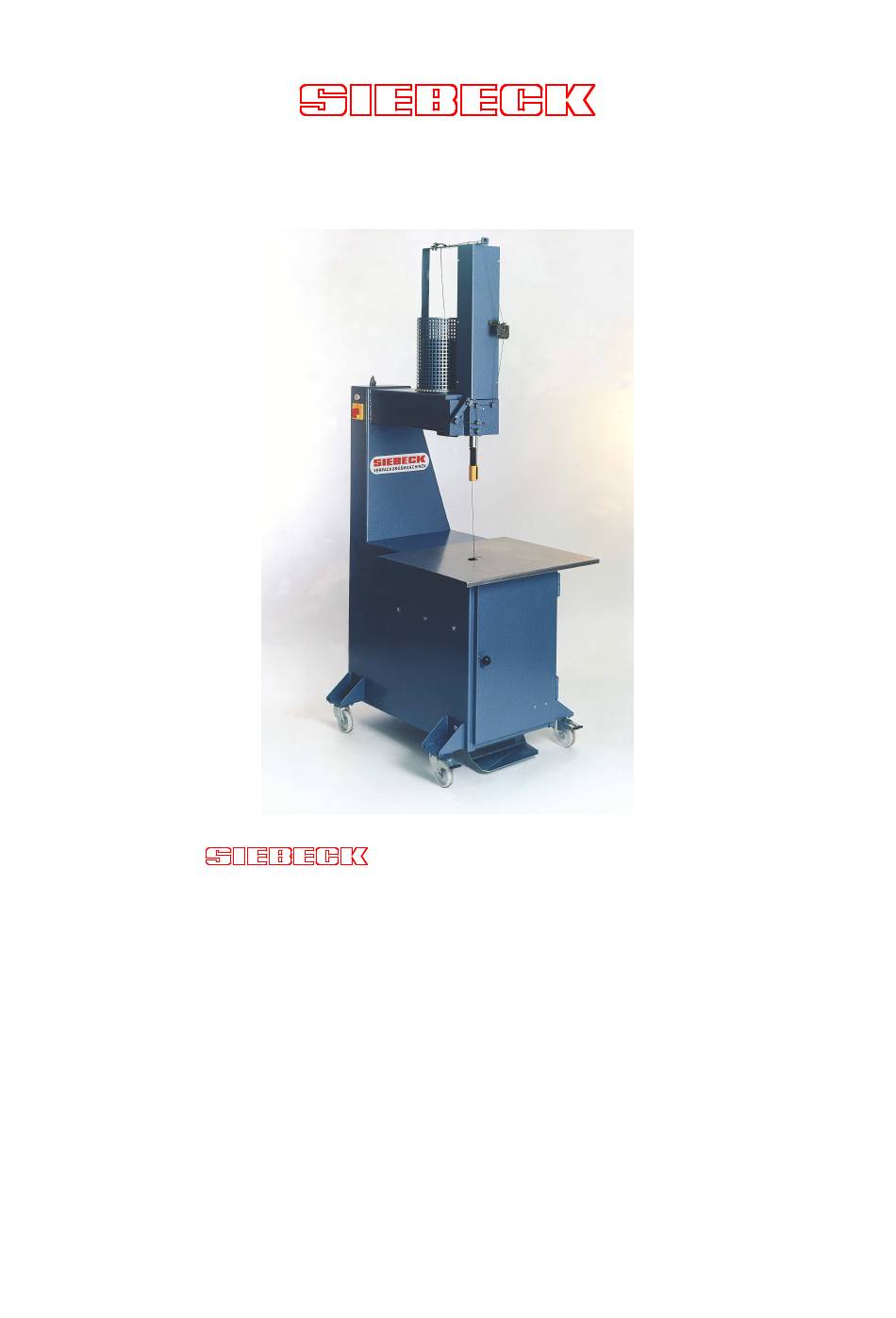

- Page 1 Translation of the original operating manual Nr.: rbm_bed_0910 JET 2000 tying machine Model JET - RBM GMBH D - 69412 EBERBACH Telephone +49(0)6271 / 9208 0 Fax +49(0)6271 / 9208 88 E-mail: info@siebeck.de Internet: www.siebeck.de...
-
Page 2: Table Of Contents
Siebeck GmbH 0perating manual rbm-bed-0910 Table of contents Page Hazard warnings…………………………………………………………. 3 Introduction……………………………………………………………….. 4 Warranty…………………………………………………………………… 5 EC declaration of conformity……………………………………………. 6 Technical data / Proper use…………………………………………….. 7 Safety…………………………………………………………………..8 Set-up and commissioning.……………………………………………… 9 Inserting the string.…………………………………………………………10 Correct positioning of the products to be tied up……………... -
Page 3: Hazard Warnings
Siebeck GmbH 0perating manual rbm-bed-0910 Hazard warnings Hazard warnings are found in the respective position in the text. They are denoted by this warning triangle and an information text. Caution! The technical manual must have been read and understood before using the machine for the first time. For personal safety it is important to follow all the instructions listed in it. -
Page 4: Introduction
Additional copies can be ordered from the address given below, quoting article number rbm_bed_0910. D-69412 Eberbach, Germany Telephone +49 (0)6271 9208 0 Fax +49 (0)6271 9208 88 E-mail : info@siebeck.de Internet : www.siebeck.de Page 4... -
Page 5: Warranty
Siebeck GmbH 0perating manual rbm-bed-0910 WARRANTY All machines which have been manufactured at our production facilities are covered by a warranty of 12 months, starting from the date of commissioning, or 18 months from the date of delivery. This warranty covers material and manufacturing faults. -
Page 6: Ec Declaration Of Conformity
Siebeck GmbH 0perating manual rbm-bed-0910 EC declaration of conformity We hereby declare that the machine described as follows Manufacturer : SIEBECK Model JET - RBM Serial No. ,in its delivered condition, complies with the following valid stipulations: EG Machinery Directive 2006/42/EG (valid from 28.12.2009) -
Page 7: Technical Data / Proper Use
Siebeck GmbH 0perating manual rbm-bed-0910 Technical data Machine dimensions: 2210 D - 6 9 4 1 2 E B E R B A C H All dimensions are in mm, subject to changes Connected electrical load: 400 Volt, 3 phase alternating current, 1 kW, 50 Hz Machine performance: 40 cycles p. -
Page 8: Safety
Siebeck GmbH 0perating manual rbm-bed-0910 Safety The European standard EN 60204-1 requires the power supply connection to be established by a suitable plug device. The power supply cable must not be connected to a power distributor directly by way of a terminal connection, without a plug connector. -
Page 9: Set-Up And Commissioning
Siebeck GmbH 0perating manual rbm-bed-0910 Set-up and commissioning Erect the machine in the designated location and press the wheel locks down so that the machine is stable. To avoid collisions with other machines and to ensure operating and maintenance staff have sufficient access, there must be minimum of 1.5 metres of clearance around the entire machine. -
Page 10: Inserting The String
Siebeck GmbH 0perating manual rbm-bed-0910 Inserting the string 1 - 5 1. Insert the string bobbin into the string container (A) and press firmly against the foam rubber pad (B). 2. Feed string through the hole (C) in the flat bar, under the brake plate (D) and through the hole (E). -
Page 11: Correct Positioning Of The Products To Be Tied Up
Siebeck GmbH 0perating manual rbm-bed-0910 Correct positioning of the products to be tied up 1. For the first and each subsequent binding the products to be tied up should be fed until over the guide edge marked on the worktop (see illustration below). -
Page 12: Cleaning And Maintenance
Siebeck GmbH 0perating manual rbm-bed-0910 Cleaning and maintenance Um Unfälle beim Reinigen und Abschmieren der Maschine zu vermeiden, ist unbedingt darauf zu achten, daß der Hauptschalter ausgeschaltet, bzw. die Maschine stromlos ist. Der Hersteller der Maschine ist von jeglicher Haftung entbunden, wenn diese zwingende Vorschrift nicht beachtet wird. -
Page 13: Operating Controls
Siebeck GmbH 0perating manual rbm-bed-0910 Operating controls Control light - On solidly = ready for use - Flashing enable (see page ...) Main switch O / Off I / On Toggle switch - Position ready for use - Position aggregate motor brake... -
Page 14: Checking The Safety Mechanism (Enabling)
Siebeck GmbH 0perating manual rbm-bed-0910 Checking the safety mechanism (Enabling) Caution! Risk of crushing! During downward movement, the RBM-10-310 toothed rack has an electro-mechanical safeguard. If the RBM-10-220 needle shoe touches any object above the worktop, the drive motor gets immediately reversed and the rack moves up into the starting position. -
Page 15: Setting The Aggregate's Zero Postion
Siebeck GmbH 0perating manual rbm-bed-0910 Setting the aggregate’s zero position "O" JAG-07-050 The correct zero position ('O') is when the JAG-07-050 injector lever has reached its extreme left position. You adjust the zero position by moving the S7 limit switch. -
Page 16: Setting The Stripper
Siebeck GmbH 0perating manual rbm-bed-0910 Stripper setting The side setting for the stripper "C" is made using the threaded pin No. 9 (group M4). When the knotter "A" moves back, stripper "C" must rest on knotter "A" with pressure. The height setting is made using the toggle link socket No. 2 (group M4). -
Page 17: The Story Of Knots
Siebeck GmbH 0perating manual rbm-bed-0910 The story of knots Incorrect knotting patterns and their causes Short loops The knotter opens too early. Shift the mount for the cam roller for opening the knotter backwards towards the chain wheel. The stripper does not rest on the knotter. - Page 18 One loop of normal length, one loop which is too short The knotter is not closing properly. Tension spring for the knotting lock is too weak. The stripper does not rest on the knotter. Single loop The knot has only a single loop. The second loop is drawn through.
-
Page 19: Faults And Their Causes
Siebeck GmbH Operating manual rbm_bed_0910 Faults and their causes Never rework the surface of the twine button housing! This surface has an exactly specified contour. The notch is intentional and has not been created by wear. Only ever make the necessary settings by adjusting the string brake and twine button spring. -
Page 20: Residual Risks And Incorrect Operation
Siebeck GmbH Operating manual rbm_bed_0910 Residual risks and incorrect operation Residual risks and incorrect operation which exist despite measures for integrated safety and technical protective equipment, are described and illustrated in the following. These risks are documented in a risk analysis and filed by the manufacturer. - Page 21 Siebeck GmbH Operating manual rbm_bed_0910 Risk of cuts When installing and removing the knife M. When installing and removing the knife M, you must adhere to the following: Do not touch the knife blade S Risk of injury! The cover plate A must be fitted as illustrated.
