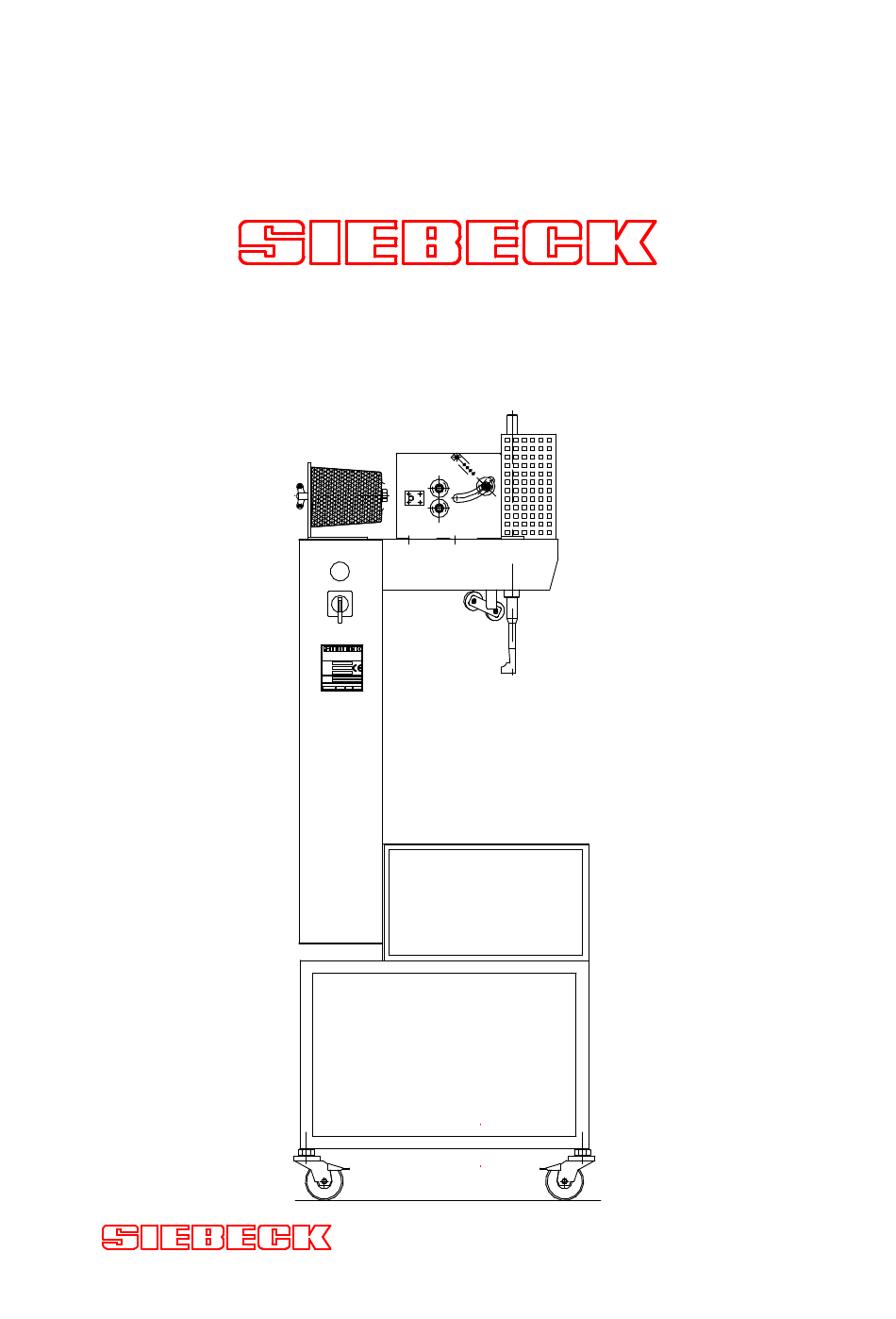

- Page 1 Translation of the original operating manual No. jet_in_bed_0315 Strapping machine JET 2000 Model JET IN D - 69412 EBERBACH Internet: www.siebeck.de email: info@siebeck.de Maschinentyp Machinetype Maschinen-Nr. Machine-N° Baujahr Year of constr. Maschinenbez. Verschnürungsmaschine / Tyingmachine Machinename Masch.gewicht Machineweight Elektischer Anschlußwert...
-
Page 2: Table Of Contents
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Table of contents Page Hazard warnings ………………………………………………………… 3 Foreword……………………………………………………………………4 Warranty……………………………………………………………………. 5 EC Conformity declaration ………………………………………………..6 Technical data Proper use ……………………………………….. Safety…………………………………………………………………... Set-up and commissioning ...………………………………………… Inserting the string …………………………………………………….. Correct positioning of the products to be wrapped………………... -
Page 3: Hazard Warnings
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Hazard warnings Hazard warnings are found in the respective position in the text. They are denoted by this warning triangle and an information text Caution! The technical manual must have been read and understood before using the machine for the first time. -
Page 4: Foreword
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Introduction This machine has been engineered in accordance with the recognised rules of technology and in adherence to the regulations for occupational safety and the prevention of accidents so that proper use cannot not cause any hazards for the life and limb of the user or third parties. -
Page 5: Warranty
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 WARRANTY All machines which have been manufactured at our production facilities are covered by a warranty of 12 months, starting from the date of commissioning, or 18 months from the date of delivery. This warranty covers material and manufacturing faults. -
Page 6: Ec Conformity Declaration
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 EC - Declaration of conformity We hereby declare that the following specified machinery Make SIEBECK Model JET IN Serial No. complies with the following provisions applying to it: EC Machinery Directive 2006/42/EC (valid from 29.12.2009) -
Page 7: Technical Data
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Technical data Machinery dimensions D - 69412 EBERBACH Internet: www.siebeck.de em ail: info@siebeck.de Maschinentyp Machi netype Maschinen-Nr. Machi ne-N° Baujahr Year of constr. Maschinenbez. Machi nename Verschnürungsmasc hine / Tyingmachine Masch.gewicht Machi neweight Elektischer Anschluß... -
Page 8: Safety
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Safety! The European standard EN 60204-1 requires the power supply connection to be established by a suitable plug device. The power supply cable must not be connected to a power distributor directly by way of a terminal connection, without a plug connector. -
Page 9: Set-Up And Commissioning
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Set-up and commissioning Erect the machine in the designated location and press the roller wheel locks down so that the machine is stable. To avoid collisions with other machines, as well as for adequate access for the operating and maintenance personnel, there must be a clearance of min. -
Page 10: Inserting The String
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Inserting the string D - 69412 EBERBACH Internet: www.siebeck.de email: info@siebeck.de Maschinentyp Machinetype Maschinen-Nr. Machine-N° Baujahr Year of constr. Maschinenbez. Verschnürungsmaschine / Tyingmachine Machinename Masch.gewicht Machineweight Elektischer Anschlußwert Electrical supply Volt Ph.AC... -
Page 11: Correct Positioning Of The Products To Be Wrapped
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Correct positioning of the products to be strapped 1. The products to be wrapped (ring) should be run in each case for the first and any other binding up across the contact surface marked on the table top (see figure below). -
Page 12: Maintenance And Care
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Service and maintenance of the machine To prevent accidents when cleaning and servicing the machine, it is essential to make sure that the main switch is turned off, or the machine power supply is switched off. The manufacturer of the machine is released from any liability if this mandatory requirement is not observed. -
Page 13: Operating Controls
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Operating controls Control lamp Main switch O / off I / on Pushbutton (under the table top ) - press intermittently Move aggregate forward in stages - press repeatedly Aggregate runs to... -
Page 14: Aggregate Zero Point Setting
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Adjusting the zero position on the aggregate "O" JAG-07-050 -S10 The correct zero point (“O“) is achieved if the inserting lever JAG-07- 050 has reached its furthest left position. The zero point is adjusted by sliding the end switch -S3. -
Page 15: Setting The Stripper
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Stripper setting The side setting for the stripper "C" is made using the threaded pin No. 9 (group M4). When the knotter "A" moves back, the stripper "C" must rest on knotter "A"... -
Page 16: The Story Of Knots
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 The story of knots Incorrect knotting patterns and their causes Short loops The knotter opens too early. Shift the mount for the cam roller for opening the knotter backwards towards the chain wheel. The stripper does not rest on the knotter. - Page 17 Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 One normal length and one short loop The knotter is not closing properly. Tension spring for the knotting lock is too weak. The stripper does not rest on the knotter. Single loop The knot has only a single loop.
-
Page 18: Faults And Their Causes
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Faults and their causes Never rework the surface of the twine button housing! This surface has an exactly specified contour. The notch is intentional and has not been created by wear. Only ever make the necessary settings by adjusting the string brake and twine button spring. -
Page 19: Residual Risks And Incorrect Operation
Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Residual risks and incorrect operation Residual risks and incorrect operation, which exist despite measures for integrated safety and technical protective equipment, are described and illustrated in the following. These risks are documented in a risk analysis and filed by the manufacturer. - Page 20 Siebeck GmbH Translation of the original operating manual jet_in_bed_0315 Risk of cuts. When installing and removing the knife M. When installing and removing the knife M, you must adhere to the following:: - Do not touch the knife blade S Risk of injury! - The cover plate A must be fitted as illustrated.
