LUMAHAWK LMM-PRO800 Instructions For Setup

Introduction
Welcome to the world of LUMAHAWK LCD On-Camera Monitors.
The LMM-PRO800 is designed for composing and focusing images directly from your DSLR
or DV camera as well as viewing images and video clips from it. It's simple to use and
accepts a variety of popular input formats. To take advantage of all the features and to
ensure safe operation, please read through this instruction manual.

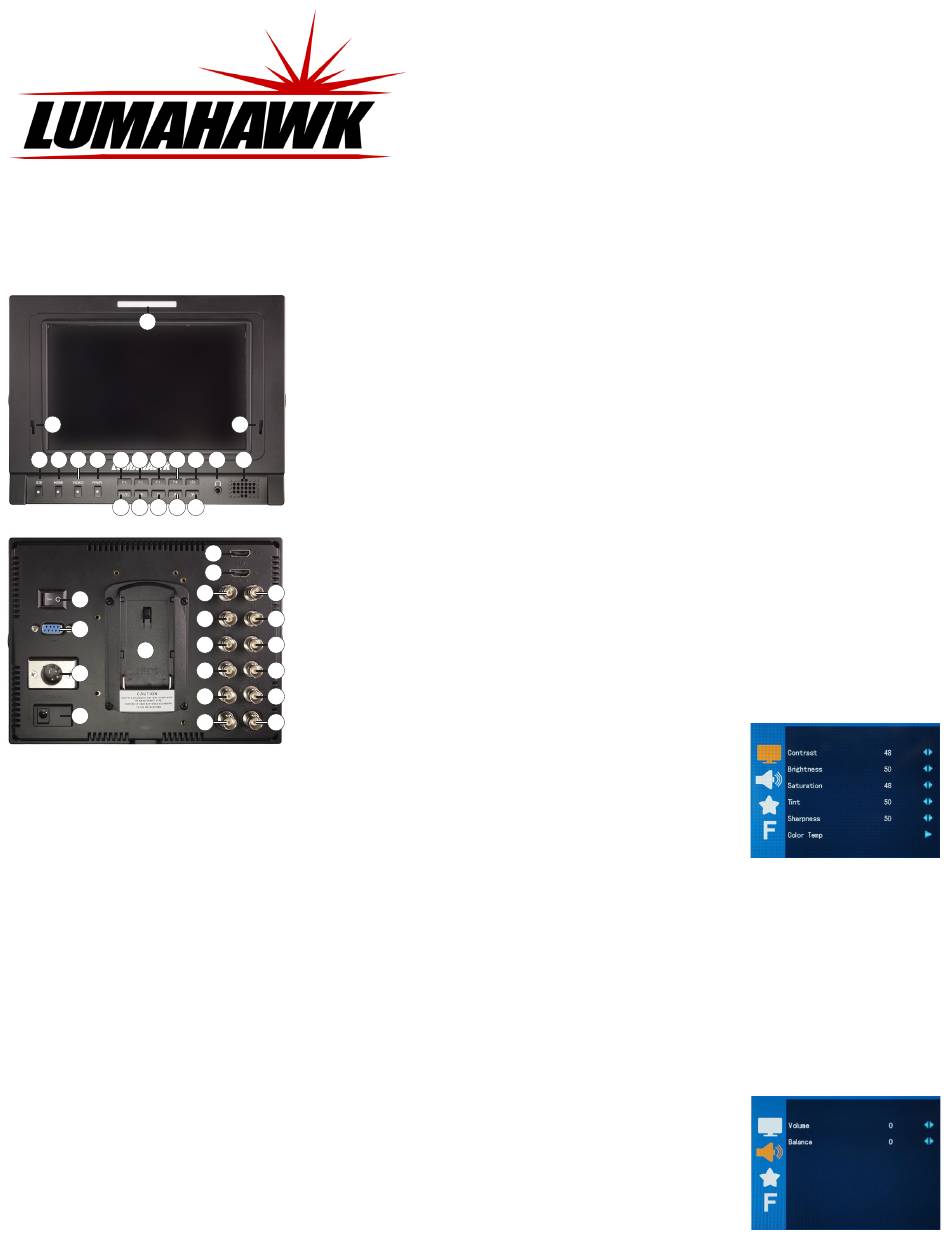

Front
1
2
3 4 5 6 7 7 7 7
11 12 13 14
Back
16
17
20
18
19
Included Accessories
•
•
AC/DC Adapter
7" IPS LCD HD Camera
•
XLR Power Input Socket
Monitor
•
•
F Style DV Battery Plate Folding Sun Hood
•
•
Tally Light Kit
Shoe Mount Ball Head
•
Mini HDMI to HDMI Cable
Powering the LMM-PRO800
The LMM-PRO800 can be powered in the following ways:
•
With the supplied AC adaptor.
•
With a 12V DC power supply fitted with an XLR plug.
•
With an F-style DV battery such as the LUMAHAWK F-550 Li Ion Battery.
NOTE: Remove the battery from the monitor when not in use to ensure maximum battery
life.
Turning the monitor on and selecting a signal source
The power switch is located on the back of the monitor. Once the monitor is turned on,
the screen will turn blue and display the LUMAHAWK logo. Push the input selector button
that corresponds to the source signal you wish to display. The source's input button will
turn green when active.
Attaching the sun hood
Always close the sun hood before attaching it to or removing it from the monitor.
•
To attach the sun hood to the monitor insert the two teeth towards the bottom on
the hood's frame into the two slots on the front of the monitor, just above the control
buttons. With the teeth inserted all the way in, apply firm pressure on the top of the
hood's frame and slide it down into the slot.
•
To open the hood, lift the top panel up followed by the left panel out and then the right
panel out (i.e starting with the top panel, open in a counter-clockwise order.)
•
To close the hood, start with the right panel going in, then the left and finally the top
(i.e opposite order from opening)
•
To remove the hood, first close it. Then push the hood frame upwards towards the top
of the monitor and lift away from the monitor face.
1. Tally light
2. Sun hood slot
3. SDI input select
4. HDMI input select
5. Composite video input
select
6. Component video
input select
7. Function Keys
8. Camera signal switch
2
9. Headphone jack
10. Speaker
11. OSD menu
8 9
10
12. Volume decrease
13. Volume increase
14. Menu scroll up
15. Menu scroll down/
15
Image freeze
16. Power switch
17. Tally port
21
18. XLR power input
22
19. DC power input
20. Battery plate
23 24
21. HDMI output
22. HDMI input
25 26
23. Y video input
24. Y video output
27 28
25. Pb video input
29 30
26. Pb video output
27. Pr video input
31 32
28. Pr video output
29. Composite video input
33 34
30. Composite video output
31. Left audio input
32. Right audio input
33. HD-SDI input
34. HD-SDI output
Instructions for Set-up of the
LMM-PRO800 On-Camera LCD Monitor
Front Panel Controls
The most frequently used monitor controls are directly accessed with the front panel buttons.
These are:
•
SDI – Display SDI-HD signal connected to rear SDI BNC input.
•
HDMI – Display HDMI signal connected to rear HDMI input
•
Video – Display Composite video signal connected to rear Video BNC input
•
YPbPr – Display Component video signal connected to the rear Y/Pb/Pr BNC inputs
•
F1/F2/F3/F4 – Customizable function buttons (See Functions section for programming
function buttons).
•
Camera – Toggle the signal from the live input off and on.
•
< and > - Increase and decrease the speaker volume.
•
V – Push to freeze the image displayed on monitor. Push again to return to the live signal.
Using the Tally Indicator Light kit
The PRO800 comes with a Tally Indicator kit. When attached to the monitor and the
appropriate switching station, it will cause the tally light on the front of the monitor to change
color when the camera is recording and when it's in standby mode.
To use the Tally kit, connect Tally signal line from the switching station as indicated below:
Active connection:
•
When GND and G with 0-5V voltage wire are shorted to ground access
•
When the voltage is 0.3-2.7V, the Tally light turns green.
•
When the voltage is 2.8-5.5V, the Tally light flashes red.
Passive connection:
•
When GND, R +, G are all shorted, the Tally light flashes red.
Signal Pass-through
The LMM-PRO800 features HDMI, SDI-HD, Composite and Component output ports that allow
for unmodified signal pass-though.
This means that additional monitors can be attached to the PRO800 via these output ports.
These additional monitors will receive the unmodified signal (e.g. no centre markers or check
field display) from their corresponding original input sources.
Using OSD to adjust monitor settings
Push the MENU button to show the OSD (On Screen Display).
From this menu you can access and make adjustments to all the monitor's parameters.
•
To access a specific function, scroll through the four main sections (Display, Sound, System,
Function) using the 'Ʌ' and 'V' buttons.
•
When the desired function appears in the right column of the OSD, push the '>' button.
•
Now use the 'Ʌ' and 'V' buttons to scroll up or down until the function is highlighted in
green. Refer to the following sections for individual parameter options.
•
After making the adjustment, push the MENU button to engage the adjustment. This
will also return you the Primary OSD screen where you can scroll through the four main
sections.
•
To hide the OSD, push the MENU button again.
•
Contrast
Adjust the image contrast using the '<' and '>'
buttons.
•
Brightness
Adjust the image brightness using the '<' and '>'
buttons.
•
Saturation
Adjust the image saturation using the '<' and '>'
buttons.
•
Tint
Adjust the image tint using the '<' and '>' buttons.
•
Sharpness
Adjust the image sharpness using the '<' and '>' buttons.
•
Color Temp
Adjust the color temperature of the image.
Use the '<' and '>' buttons to select 9300K, 7500K, 6500K or USER. If USER color is selected,
use 'Ʌ' and 'V' to scroll through R,G and B settings and use '<' and '>' to increase or decrease
specific values. After the desired color has been set, push the MENU button to return the
main Color Temperature list.
•
Picture Mode
Adjust image picture quality using the '<' and '>' buttons. Settings include Standard, Soft,
User and Vivid.
•
Aspect Ratio
Adjust image's aspect ratio using '<' and '>' buttons. Options are14:9, 16:9,4:3, Full Screen,
Dot by Dot, Panorama, Zoom2 and Zoom1.
Sound
•
Volume
Adjust the monitor's volume using '<' and '>' buttons.
•
Balance
Adjust the left/right balance of the monitor's sound
using '<' and '>' buttons.
