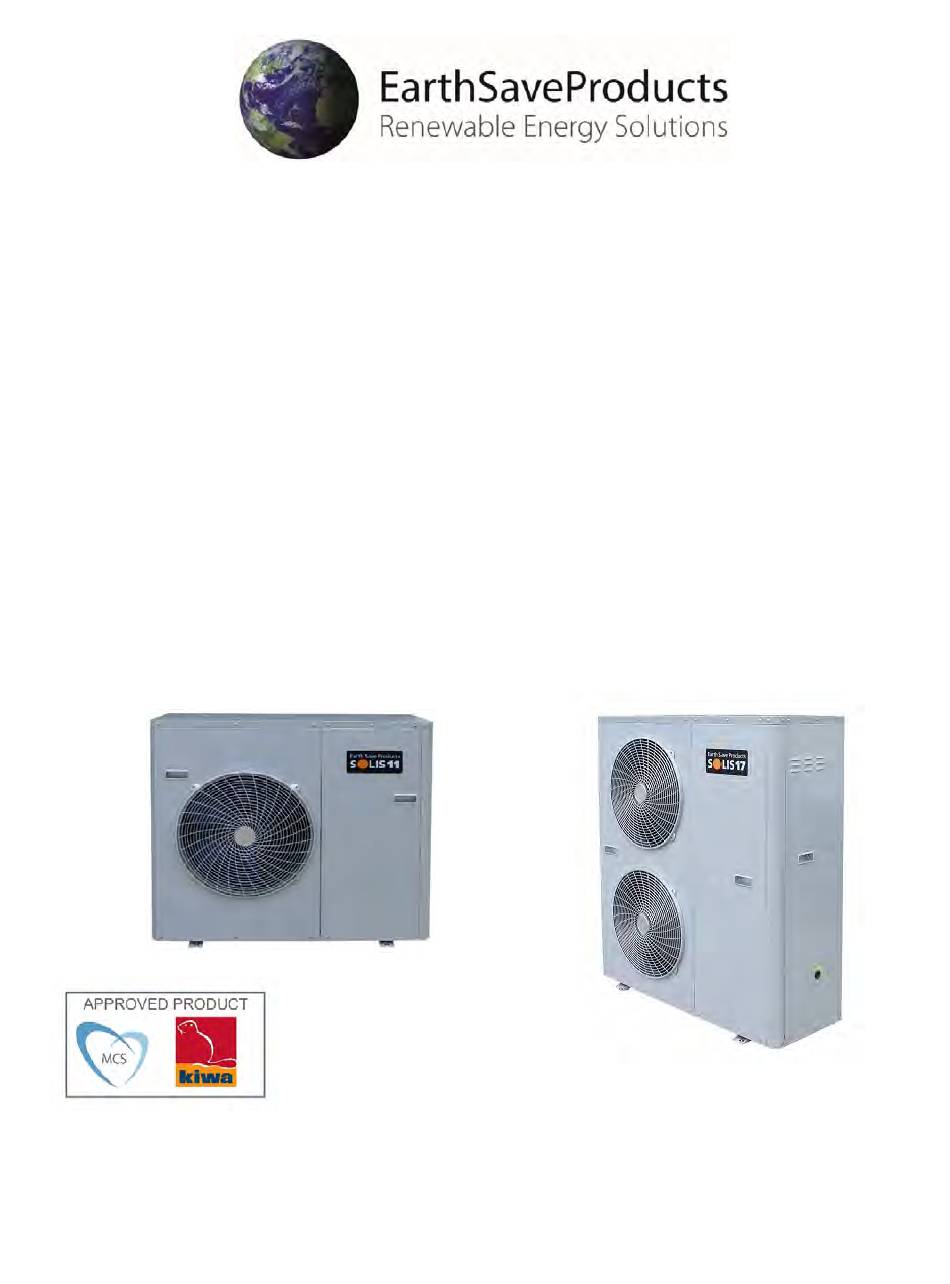

Earth Save Products
SOLIS
Air Source Heat Pump
Installation
and User Manual
Dated 17/09/19 V1.2
ESP-HC-DHW 11DC
ESP-HC-DHW 17DC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLIS 11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Earth Save Products SOLIS 11

  • Page 1 Earth Save Products SOLIS Air Source Heat Pump Installation and User Manual Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 2 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 3 WARNING READ THIS BEFORE INSTALLING THE UNIT. The installation of all un-vented water heating systems above 15 litres MUST comply with local area Building Regulations. It is a legal requirement that the local Building Control Officer be notified of any proposed installation.
  • Page 4: Table Of Contents

    Models: SOLIS 11 / 17 Contents list 1 General ..................................5  2 System Description ............................... 5  3 Installation ................................5  3.1 General points for installation engineer ....................5  3.1-1 Transport and storage ........................5  3.1-2 Commissioning the installation ..................... 6 ...
  • Page 5 Do not introduce any objects through the grill and into the fan or any other part of the unit. Important Notice for Antifreeze Protection 1. There must be enough Earth Save Products glycol in the system to avoid damage during cold weather. Sufficient Glycol must be used to protect the system to -20°C.
  • Page 6: General

    Each unit has different installation options: 1) Space heating only. 2) Space heating + DHW (Domestic hot water) Additionally, both units can be modified by Earth Save Products Limited before delivery to provide a cooling circuit. 3 INSTALLATION 3.1 General points for installation engineer 3.1-1 Transport and storage...
  • Page 7: Commissioning The Installation

    3.1-2 Commissioning the installation The ASHP installation should be inspected before it is commissioned by a suitably qualified person and must be recorded on the commissioning document then signed by both the installer and the owner. Further, the installation of an ASHP is a notifiable occurrence under current building regulations.
  • Page 8: Installation Design

    However, changing parameters can be dangerous in the extreme or simply reduce system efficiency and PARAMETERS SHOULD NOT BE CHANGED WITHOUT CONSULTING EARTH SAVE PRODUCTS LIMITED. The one exception is the temperature set point maximum and minimum settings.
  • Page 9 reason, they are not included as part of the optional ASHP or buffer fittings pack. Expansion vessels can, however, be provided by ESP as an additional optional extra. If, as advised, you are using a buffer tank in the system, you will need to fit a suitably sized water pump on the water distribution side of the system.
  • Page 10 The heating inlet and outlet hoses must be to the correct tappings as marked on the rear left side of the unit: Inlet Connection Outlet Connection Drain Off Cock Connection A drain off cock must be connected to the correct tapping on the ASHP as above. All outdoor pipes must be thermally insulated with external grade waterproof insulation at least a 30 mm thick wall.
  • Page 11: Electrical Connection

      % Glycol  10  20  30  40  50  Ambient Temp  ‐3  ‐8  ‐14  ‐22  ‐33  Heating Capacity Fluctuation  .991 .982 .972 .961 .946  Power Input Fluctuation  .996 .992 .986 .976 .966  Water Flow Fluctuation  1.013 1.040 1.074 1.121 1.178  Water Drop Fluctuation  1.070 1.129 1.181 1.263 1.308    Note: if the glycol/water mix is too concentrated, the water flow and water pump will be affected and the efficiency of the unit will be decreased.
  • Page 12: Installation Drawings

    3.4-1 Installation Drawings Undo the 4 retaining screws and retain for re fitting, remove the access panel to the right side of the unit and place the panel in a safe place where it cannot be damaged and is protected from being scratched. All three wires should be fed through the two glands at the rear of the unit, taking care not to damage the gromets so that the waterproof seal is not damaged: Apertures for wires...
  • Page 13 Solis 17kW: Zero Volt connection from circulation control system Controller Connection Plug Mains Voltage Connection Block Solis 11kW: Zero Volt connection from circulation control system Controller Connection Plug Mains Voltage Connection Block 12 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 14: Electrical Connection For All Solis Units

    3.4-2 Electrical Connections for all Solis Units. Zero Volt ‘Call’ The unit is shipped with a link wire in the zero-volt connector block. This should be removed and a 2 core wire should be run from the circulation system controller (normally a wiring centre), through the wiring gland at the rear of the unit and connected to this connection block.
  • Page 15 Wiring Diagram SOLIS 11 For options to control a 3-way valve for DHW production. See DHW Appendix. 14 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 16 Wiring Diagram SOLIS 17 For options to control a 3-way valve for DHW production. See DHW Appendix. 15 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 17: Commissioning

    3.5 Commissioning 3.5-1 Compressor Delay To safeguard the Solis 17kW compressor, the compressor heater will run for a defined period of time before the compressor starts for the first time. If the ambient temperature is below 10°C but above 5°C, it will run for 3 mins, if it is between 5°C and 0°C, it will run for 5 mins and if the ambient temperature is below 0°C, it will run for 10 minutes.
  • Page 18: The Controller

    The DHW temperature can be set to any value between 10°C and 50°C. If a storage temperature of greater than 60°C is desired, Earth Save Products Limited can advise on how to control this through the unit using an auxiliary electrical heater controlled by the Solis. The default factory setting is 50°C.
  • Page 19: Wired Controller

    4.3 Wired controller 4.3.1 Controller 6 Keys are used to navigate the controller: 4.3.2 Key to buttons (above) (1) Clock: Used to change the clock and timer (3) Down key: used to reduce a parameter value or navigate down the menu (4) Up key:used to increase a parameter value or navigate up the menu (6) Confirm key: used to confirm a parameter value or setting (8) Mode key: Used to change mode...
  • Page 20: Controller Operation

    The default settings are in the table below. Please note that the cooling function is not available unless enabled by Earth Save Products prior to delivery. For further details of the DHW function, see the relevant appendix.
  • Page 21: To Set The Clock

    Item Meaning Setting range Default Change setting date AC cooling 10°C~25°C 12°C AC heating (AU)10°C~55°C 45°C →M→▲or▼→ → Hot water (AU)10°C~60°C 50°C Antibacterial 60°C~70°C 65°C Antibacterial (Pasteurization) setting. These settings are governed by regulation. Changing them could mean that your installation does not comply with Building and other Regulations. In On or standby mode press the M and keys together until the control beeps.
  • Page 22: To Set The Timer

    Use the ▲ ▼ keys to set the minutes then press to confirm and exit. 4.4.4 Setting the Timers The most economic way to run an ASHP is to let it run 24hrs a day. It is strongly recommended that timers are not used.
  • Page 23: Night Mode

    Repeat the instructions above to set period 2 (the first ‘off’ time) as follows. Enter timer setting, select week, and period 2, press to confirm. The Hour icon will flash: As before, use the ▲ ▼ keys to set the hour and the key to confirm.
  • Page 24: Weather Compensation Curve

    4.4.7 Weather compensation curve The weather compensation curve is set by parameter 46 with permissible values from 30 to 50. The default value is 45. This means that the Solis will automatically adjust the flow temperature as the ambient temperature drops, to a maximum flow temperature of 45°C. See graphs above. Likewise, if cooling has been enabled by the factory, the flow temperature will automatically decrease as the temperature increases as defined in parameter 45.
  • Page 25: System Adjustable Parameter Table

    protection source temp too low 2.Water source water flow volum not enough Water source water flow not No flashing Water source water flow volume not enough enough Indoor ambient sensor error No flashing Temp sensor open circuit or short circuit voltage protection Flashes once Voltage is too high or too low, heat pump will...
  • Page 26 Functional parameter (to control seasonal valve and solar 0:G3 is seasonal switching valve, valve, UK may not use it) 1:G3is solar valve Set Temperature (target temperature) Cooling If applicable will be set by Installer Set Temperature (target temperature) Heating Will be set by Installer Set Temperature (target temperature) for Hot Water Will be set by Installer if Enabled Set Temperature (target temperature) for Pasteurization...
  • Page 27: Parameter Check

    Correct Parameter values The following are default values for certain parameters that should not be changed. Code Meaning Range 11KW 17KW Correct Correct value value manual open 50~240 degree (heating) /2 manual open 50~240 degree (cooling)/2 EEV control method 0-No; 1-check;2- manual;3-auto EEV Temp differential to...
  • Page 28 DIP switch input state 0(air source), 1(water source) DIP switch input state 0(DHW invalid), 1(DHW valid) DIP switch input state 0(G1 valid), 1(G1invalid) High pressure switch state 1(On), 0(Off) Over current protection switch 1(On), 0(Off) not valid Low pressure switch state 1(On), 0(Off) Inner water flow switch (for AH, GH) 1(On), 0(Off)
  • Page 29: Technical Specification

    5 TECHNICAL SPECIFICATION 5.1 exploded diagrams SOLIS 11 Evaporator Compressor Mid-support plate Service plate Back side panel Fan grille Back side support Fan blade Expansion vessel Front panel Right side panel Fan motor Plate type heat exchanger Electrical box Water pump...
  • Page 30 SOLIS 17 Evaporator Compressor Mid-support plate Service plate Back side panel Gas-liquid seperator Back side support Electrical box Expansion vessel Fan grille Plate type heat exchanger Front panel Right side panel Fan blade Water pump Fan motor Support plate Fan support Base plate Top cover 29 of 39...
  • Page 31: System Schematic

    5.2 System Schematic 30 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 32: Dimensions(Mm)

    5.3 Dimensions(mm) SOLIS 11 1118 31 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 33 SOLIS 17 1270 1118 32 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 34: Specification

    5.4 Specifications Model: SOLIS 11 SOLIS 17 Heating Capacity Range 4-13 8-18 Rated Heating Capacity 11.60 16.70 Rated Heating Input 2.52 3.56 Rated Heating Current 11.2 15.5 4.60 4.69 Rated Cooling Capacity 11.40 16.50 Rated cooling Input 3.05 4.45 Rated cooling Current 13.4...
  • Page 35 Internal pressure drop at rating 16.0 20.0 water flow Min/Max heating water 0.5/3.0 0.5/3.0 pressure Fluid Volume Fuse (except power supply of compressor, aux heater) Lowest Operational point, outdoor air/flow line (heating -15°C/58°C -15°C/58°C mode) Highest Operational point, outdoor air/flow line (heating 43°C/60°C 43°C/60°C mode)
  • Page 36: Water Pump Water Flow Curves

    6. Water pump water flow curves RS-15/7.0 RS-25/7.5 35 of 39 Dated 17/09/19 V1.2 ESP-HC-DHW 11DC ESP-HC-DHW 17DC...
  • Page 37: Maintenance

    Solis unit, you should turn the unit to standby, isolate it at the rotary isolation then call your installer for advice. Please see the document “Maintenance Requirements” issued by Earth Save Products Limited. 1. Clean the filter in the return pipework between the buffer and the Solis every 6 months to ensure that the system is clean and to avoid blockage to the system.
  • Page 38: Guarantee Terms

    9.0 GUARANTEE Should any factory fitted Temperature and/or Pressure Relief Valve(s) or other safety devices be tampered with or removed or any recommended Temperature or Pressure Relief Valves/safety devices not be fitted, your warranty/guarantee will be invalidated. Neither the Distributor nor Manufacturer shall be responsible for any damage resulting from the tampering, howsoever caused, save where such exclusion is unlawful.
  • Page 39: Space Heating And Domestic Hot Water Operation

    11 Space Heating and DHW operation. If included as part of the system design, Solis units are capable of providing sufficient power for space heating and DHW production. When designed to work in this mode (P27 set to 1), the Solis controls the 3 way valve via an auxiliary control G3.
  • Page 40: Optional Fittings Packs

    Save Products Limited on 01865 598158 for technical advice. If you have any questions about your Solis unit you should, in the first instance, consult your installer. Earth Save Products Ltd, Units 6&7 Henderson House, Hithercroft Road Industrial Estate, Wallingford, OXON, OX10 9DG, England...
