Automation Networks Highway Plus ANC-100e User Manual page 4

ANC-100e
Ethernet to DH+ Adapter

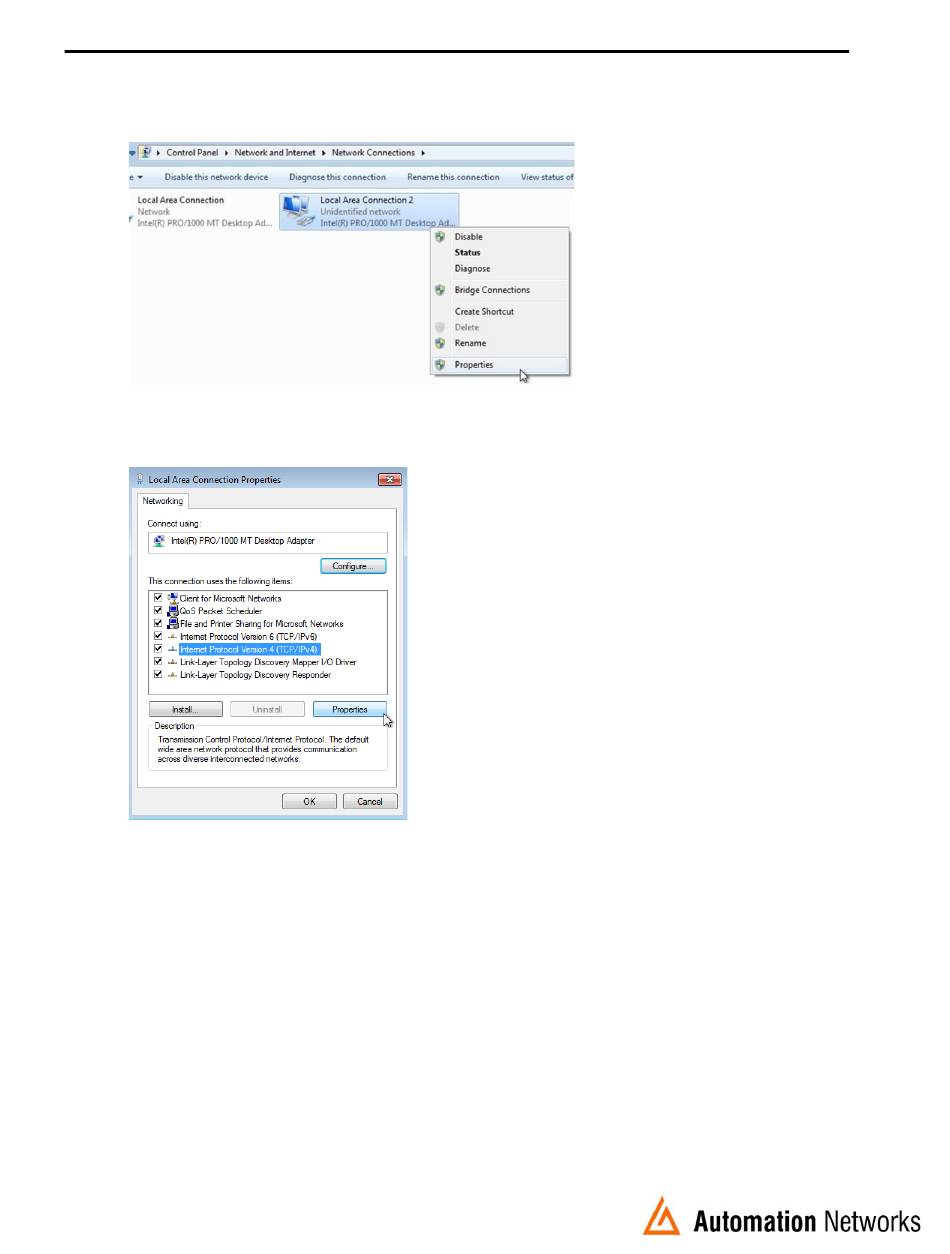

5. Right click on the corresponding network adapter
6. Click on "Properties"
7. From the list of items, select "Internet Protocol Version 4 (TCP/IPv4)"
8. Click "Properties" button
9. Select the option "Use the following IP address"
10. Configure the adapter to use following settings:
IP address: 192.168.0.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.0.1
11. "DNS server" settings blank
12. Click "OK" button
