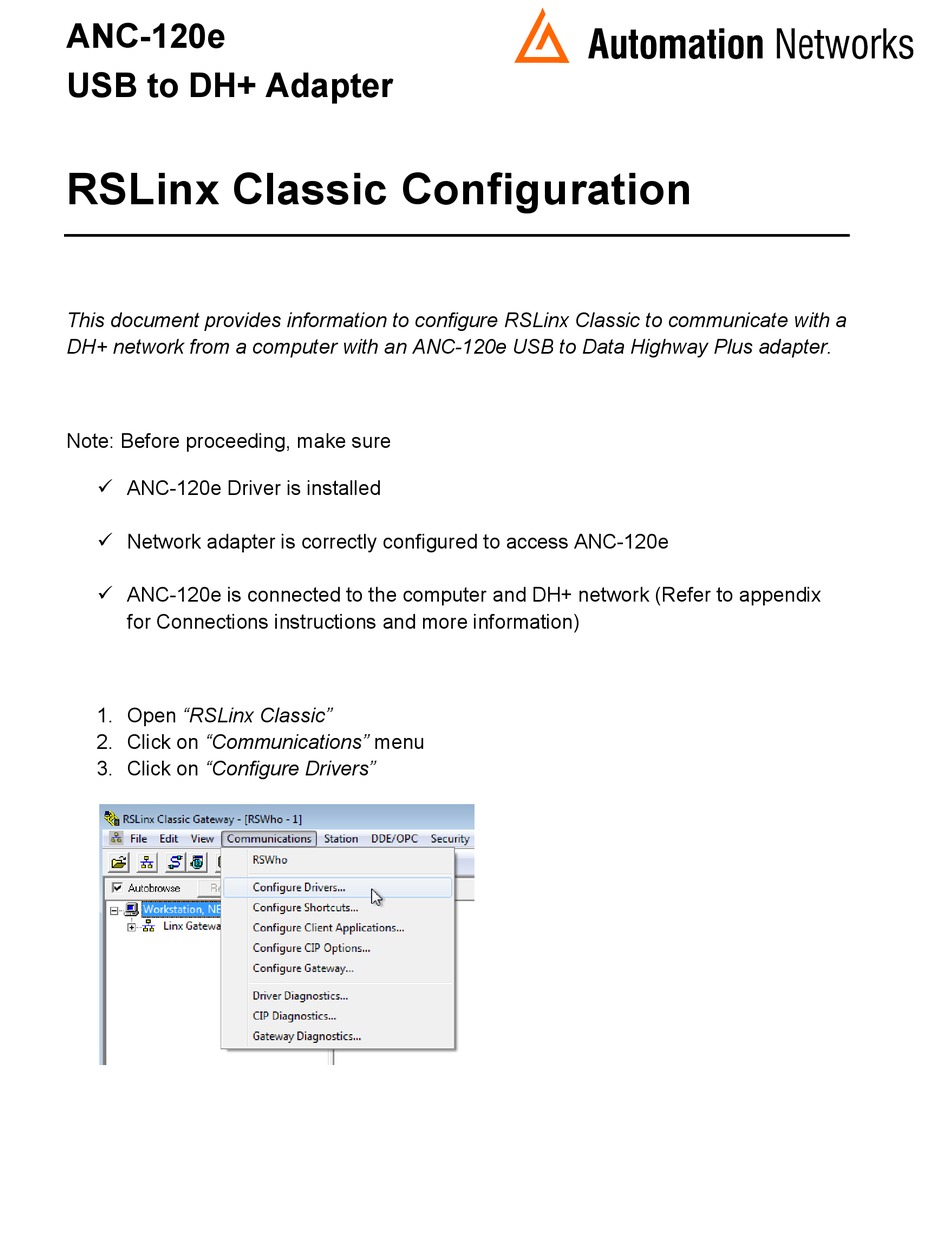

ANC-120e

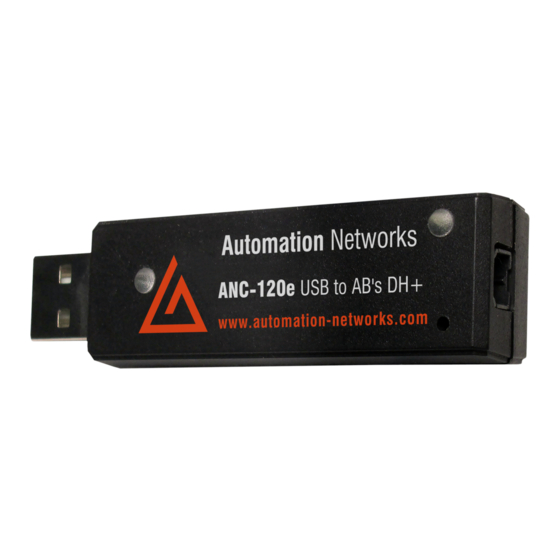

USB to DH+ Adapter

RSLinx Classic Configuration

This document provides information to configure RSLinx Classic to communicate with a
DH+ network from a computer with an ANC-120e USB to Data Highway Plus adapter.
Note: Before proceeding, make sure
 ANC-120e Driver is installed
 Network adapter is correctly configured to access ANC-120e
 ANC-120e is connected to the computer and DH+ network (Refer to appendix
for Connections instructions and more information)
1. Open "RSLinx Classic"
2. Click on "Communications" menu
3. Click on "Configure Drivers"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANC-120e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Automation Networks ANC-120e

Summary of Contents for Automation Networks ANC-120e

  • Page 1 USB to DH+ Adapter RSLinx Classic Configuration This document provides information to configure RSLinx Classic to communicate with a DH+ network from a computer with an ANC-120e USB to Data Highway Plus adapter. Note: Before proceeding, make sure  ANC-120e Driver is installed ...
  • Page 2 5. Click on “Add New” Button 6. Enter the name for the driver or use the default name 7. Click “OK” 8. Enter the IP address of ANC-120e in the “Server’s IP Address or hostname:” field (Default is 192.168.137.2) 9. Click “OK”...
  • Page 3 13. Click the checkbox to activate “Autobrowse” option 14. Double click on the driver element (In our example is TCP-1) to start browsing the ANC-120e. During browsing, you will notice that more elements appear in a branch fashion 15. Keep browsing until you reach “CH A, Data Highway plus”...
  • Page 4 Connect to DH+ Programming Terminal on processor by using the ANC-120e Mini-Din Programming Cable Connect the DH+ cable to ANC-120e and then connect to a free USB port on your computer. When the unit turns on, the USB LED blinks several times.
