Attaching the Acquisition Module

Revision C
Attaching the Acquisition Module

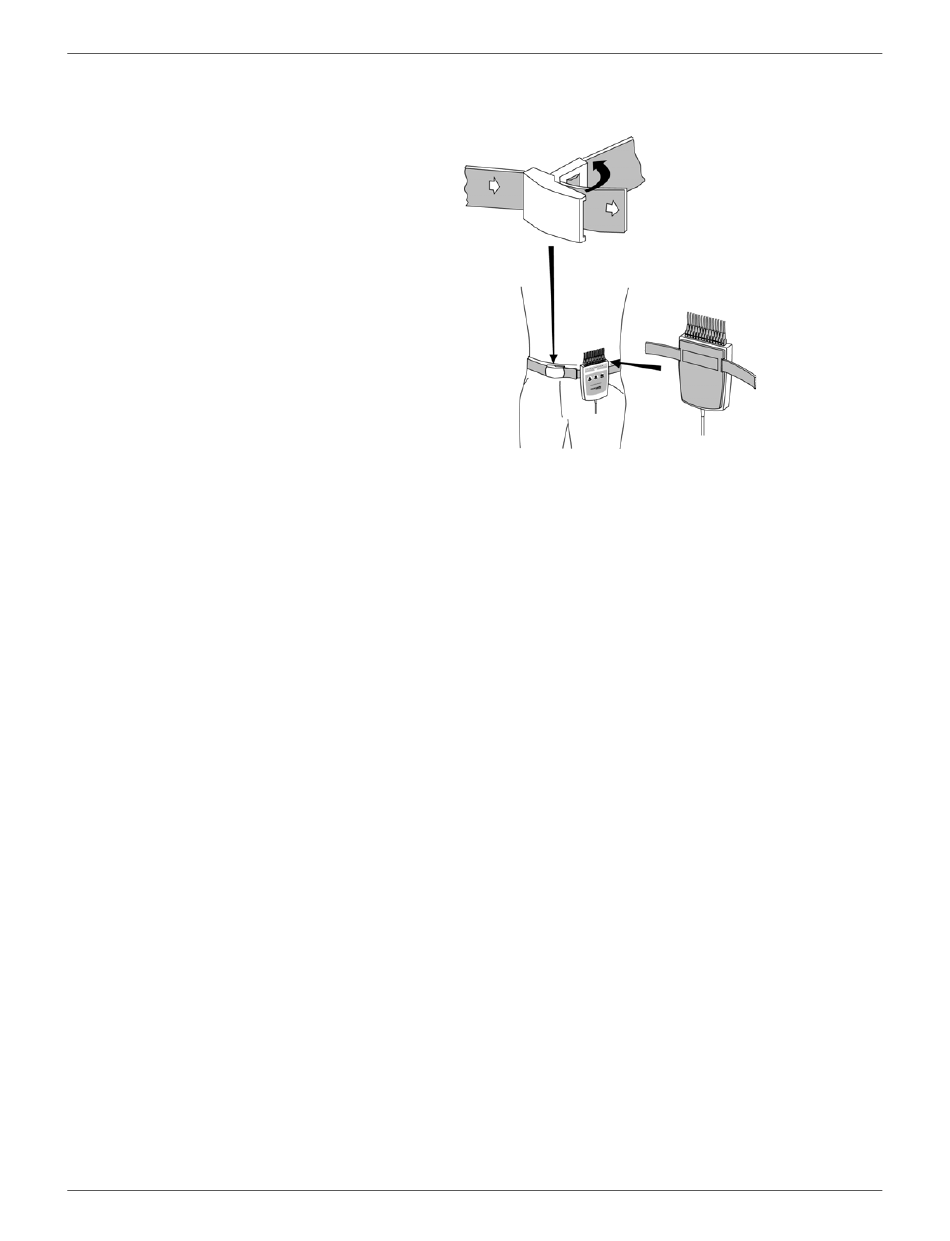

Attach the acquisition module to the patient as shown above.
Open the buckle to loosen the belt.
Note
The functions of buttons 1 and 2 on the acquisition module vary with
the test performed:
Resting ECG:
Button 1: initiates ECG analysis
Button 2: initiates a rhythm report
Button 3: stops the writer
Exercise Test:
For exercise tests, different tasks can be assigned to the buttons (see
"Miscellaneous 1 Tab"
buttons are:
Button 1: initiates 12-lead report
Button 2: initiates a rhythm report
Button 3: stops the writer
CASE
2060290-201
on page 12-24). The default functions of the
47A
3-13
