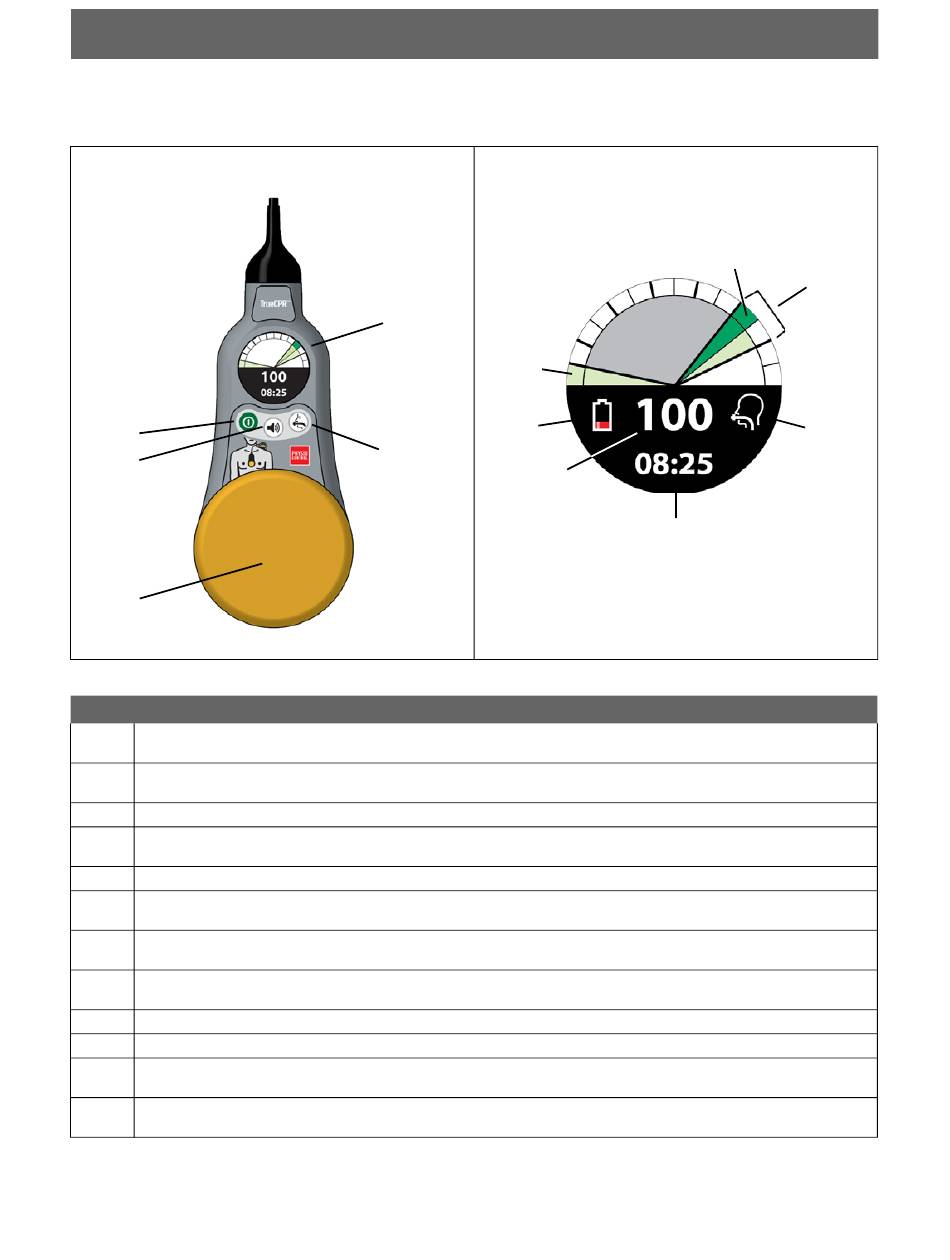

Basic Orientation

Chest Pad
1
2
3
Item Description
Power Button: Press green button to turn device on.
1
Press and hold for 2 seconds to turn device off.
Mute Button: Press to turn metronome on or off.
2
In Event Review mode, press to switch between screens.
3 Palm Pad: Hand placement area.
Airway Button: Press to switch metronome between Airway (continuous compressions) mode
4
and No Airway mode.
5 Screen: Displays compression feedback and other indicators.
Recoil Target Zone: Changes from light green to dark green when compression is
6
completely released.
Low Battery Indicator: Appears when remaining battery capacity is less than 25 minutes
7
of operation.
Compression Rate Meter: Displays rate as compressions per minute.
8
Changes to Inactivity Timer when compressions stop.
9 Elapsed Time Meter: Displays elapsed time since beginning of event.
10 Airway Indicator: Appears when device is in Airway mode.
Compression Target Zone: Changes from light green to dark green when compression
11
reaches target depth of 5–6 cm (2–2.4 in).
Compression Depth History: Dark green or gray segment in outer circle shows depth of
12
previous compression.
