Summary of Contents for Physio Control TrueCPR 80596-000001

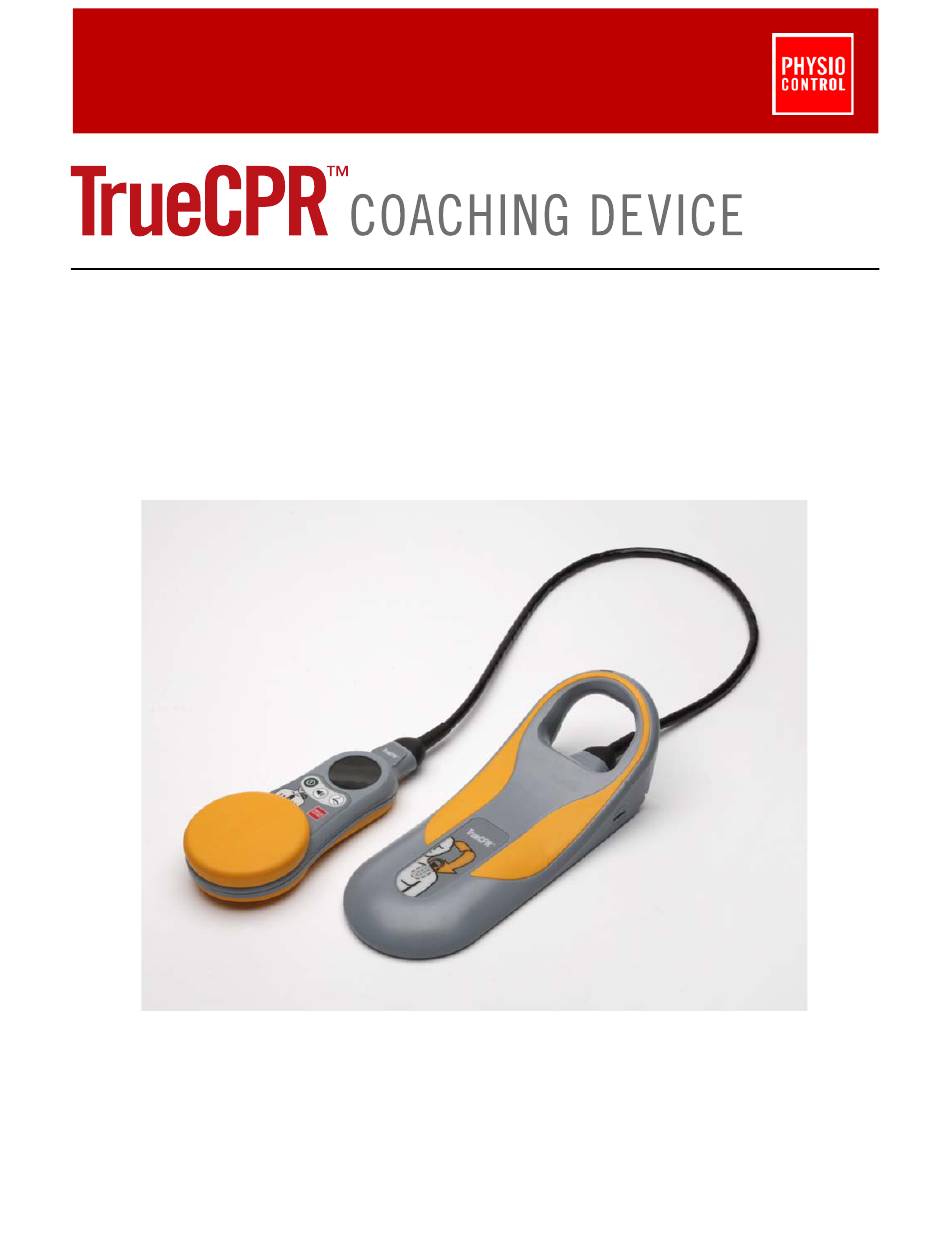

  • Page 1 INSTRUCTIONS FOR USE...

  • Page 3: Table Of Contents

    Contents Introduction ............1 Intended Use .

  • Page 5: Introduction

    Introduction Introduction The Physio-Control TrueCPR coaching device provides rescuers with real-time feedback on chest compressions during cardiopulmonary resuscitation (CPR) in accordance with current CPR guidelines. IMPORTANT! Read these instructions carefully before use, and keep for future reference. These operating instructions provide procedural steps for proper use of the TrueCPR device, and can be used for training purposes.

  • Page 6: Safety Information

    Safety Information Safety Information The following terms are used in these operating instructions: Warning: Hazards or unsafe practices that may result in serious personal injury or death. Caution: Hazards or unsafe practices that may result in minor personal injury, product damage, or property damage.

  • Page 7: Basic Orientation

    Basic Orientation Basic Orientation Chest Pad Screen Item Description Power Button: Press green button to turn device on. Press and hold for 2 seconds to turn device off. Mute Button: Press to turn metronome on or off. In Event Review mode, press to switch between screens. Palm Pad: Hand placement area.

  • Page 8: Using The Truecpr Device

    Using the TrueCPR Device Back Pad Item Description Battery Readiness Indicator: Flashing LED on back pad handle indicates battery capacity is sufficient for at least 25 minutes of operation. Note: LED flashes approximately once every 4 seconds. USB Port Cover: Provides access to USB port. Use a coin or similar tool to open.
  • Page 9 Using the TrueCPR Device 5 Position the back pad beneath the patient as shown in Figure 1. This helps the back pad stay in position. The back pad may be placed on either side of the patient. 6 Dry chest if necessary to prevent the chest pad from slipping. 7 Place the chest pad so that the palm pad is in the middle of the chest, on the lower half of the sternum.
  • Page 10 Using the TrueCPR Device WARNING POSSIBLE INEFFECTIVE CPR: If the screen on the TrueCPR device is unreadable, unresponsive, or otherwise visibly damaged, do not use the device. Perform CPR unaided instead. 9 Follow the device metronome to maintain your compression rhythm. Note: To silence the metronome, press the button.
  • Page 11 Using the TrueCPR Device The following two changes occur when the device is switched to Airway mode. • The airway indicator appears on the screen. • Ventilation prompts are not provided. Airway indicator Each time you press the button, the device switches between Airway mode and No Airway mode. AIRWAY Using the TrueCPR Device During Defibrillation It is acceptable to keep the TrueCPR device on the patient during defibrillation.

  • Page 12: Screen Illustrations

    Using the TrueCPR Device Screen Illustrations Calibration Screen When you turn on the TrueCPR device, the calibration screen appears. Calibration in progress. Calibration complete. Begin chest compressions. • Do not apply pressure to chest pad. • Ensure chest pad and back pad are separated during calibration.
  • Page 13 Using the TrueCPR Device Rescue Breath Indicators and Tones In No Airway mode, the device provides a countdown screen and tones to indicate when you should prepare to give rescue breaths. The countdown is followed by two ventilation prompts. The compression to breath ratio is 30:2.
  • Page 14 Using the TrueCPR Device Shut-down Screen Progress bar appears during shut-down. Note: Shut-down may take several minutes. Do not remove batteries while shut-down is in progress. Event Review Screens Two event review screens display data for the most recent device use. To display the event review screens, start with the device turned off.

  • Page 15: Troubleshooting Tips

    Troubleshooting Tips Troubleshooting Tips These troubleshooting tips provide immediate corrective actions for possible problems. If a problem persists, contact your local Physio-Control representative for assistance. In the USA, call Technical Support at 800.442.1142. OBSERVATION CORRECTIVE ACTION No audible metronome. • Use compression rate meter for guidance. Device does not function.

  • Page 17: Data Management

    Data Management Data Management The TrueCPR device can store compression data for three 60-minute sessions, or up to six sessions totaling 180 minutes. When all available memory has been used, the data from the oldest use is overwritten automatically. Data can be transferred to a computer with TrueCPR device-compatible software via USB connection. Event reports can be printed directly from the software.

  • Page 18: Troubleshooting Tips For Data Management

    Cleaning the Device Troubleshooting Tips for Data Management OBSERVATION CORRECTIVE ACTION Feedback screen appears on • Confirm USB cable is properly connected. TrueCPR device and metronome is • Confirm computer is on. heard. • Replace USB cable. • Use recommended USB cable (see Step 1 on page 13). Data Transfer Failed screen appears.

  • Page 19: Maintaining And Recycling The Device

    Maintaining and Recycling the Device Maintaining and Recycling the Device Maintenance The TrueCPR device and cable should be inspected regularly as part of your routine equipment inspections. See the Operator’s Checklist on page 12 for instructions. Battery Replacement Use only Duracell DL123 batteries for reliable performance. WARNING POSSIBLE LEAK, FIRE, OR EXPLOSION: •...

  • Page 20: Symbols

    Symbols Symbols The following symbols may be found on the TrueCPR device or packaging. SYMBOL DESCRIPTION Power button Mute button Airway button Device requires two Duracell DL123 batteries (nonrechargeable) Operating temperature 0° to 40°C (32° to 104°F) Defibrillation proof, type BF applied part Attention, consult accompanying documents.

  • Page 21: Product Specifications

    Product Specifications Product Specifications SPECIFICATION DESCRIPTION Power Requirements Batteries: 2 Duracell nonrechargeable DL123 cells Operating Time 180 minutes at room temperature with new batteries Operating Temperature Device can be used at 0° to 40°C (32° to 104°F). Applied part temperature may reach 43°C (109°F) during extended use at ambient temperature of 40°C (104°F).

  • Page 22: Electromagnetic Compatibility Guidance

    Electromagnetic Compatibility Guidance Electromagnetic Compatibility Guidance Electromagnetic Emissions Table 1 Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The TrueCPR coaching device, model 80596-000001, is intended for use in the electromagnetic environment specified below. The customer or user should ensure that the TrueCPR device is used in such an environment. Emissions Test Compliance Electromagnetic Environment - Guidance...
  • Page 23 Electromagnetic Compatibility Guidance Table 2 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity (Continued) The TrueCPR device, model 80596-000001, is intended for use in the electromagnetic environment specified below. The customer or user should ensure that the TrueCPR device is used in such an environment. IEC 60601 Compliance Immunity Test...
  • Page 24 Electromagnetic Compatibility Guidance Table 3 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity (Continued) The TrueCPR device, model 80596-000001, is intended for use in the electromagnetic environment specified below. The customer or user should ensure that the TrueCPR device is used in such an environment. IEC 60601 Compliance Immunity Test...

  • Page 25: Regulatory Compliance Information

    Regulatory Compliance Information Separation Distances Table 4 Recommended separation distances between portable and mobile RF communications equipment and the TrueCPR device, model 80596-000001. The TrueCPR device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
  • Page 28 Physio-Control, Inc. Stryker Australia Pty Ltd 11811 Willows Road NE 8 Herbert Street Redmond, WA 98052 USA St Leonards Telephone: 425.867.4000 NSW 2065 Toll Free (USA only): Australia 800.442.1142 Fax: 425.867.4121 www.physio-control.com Physio-Control, Inc., 11811 Willows Road NE, Redmond, WA 98052 USA Stryker European Operations B.V.
