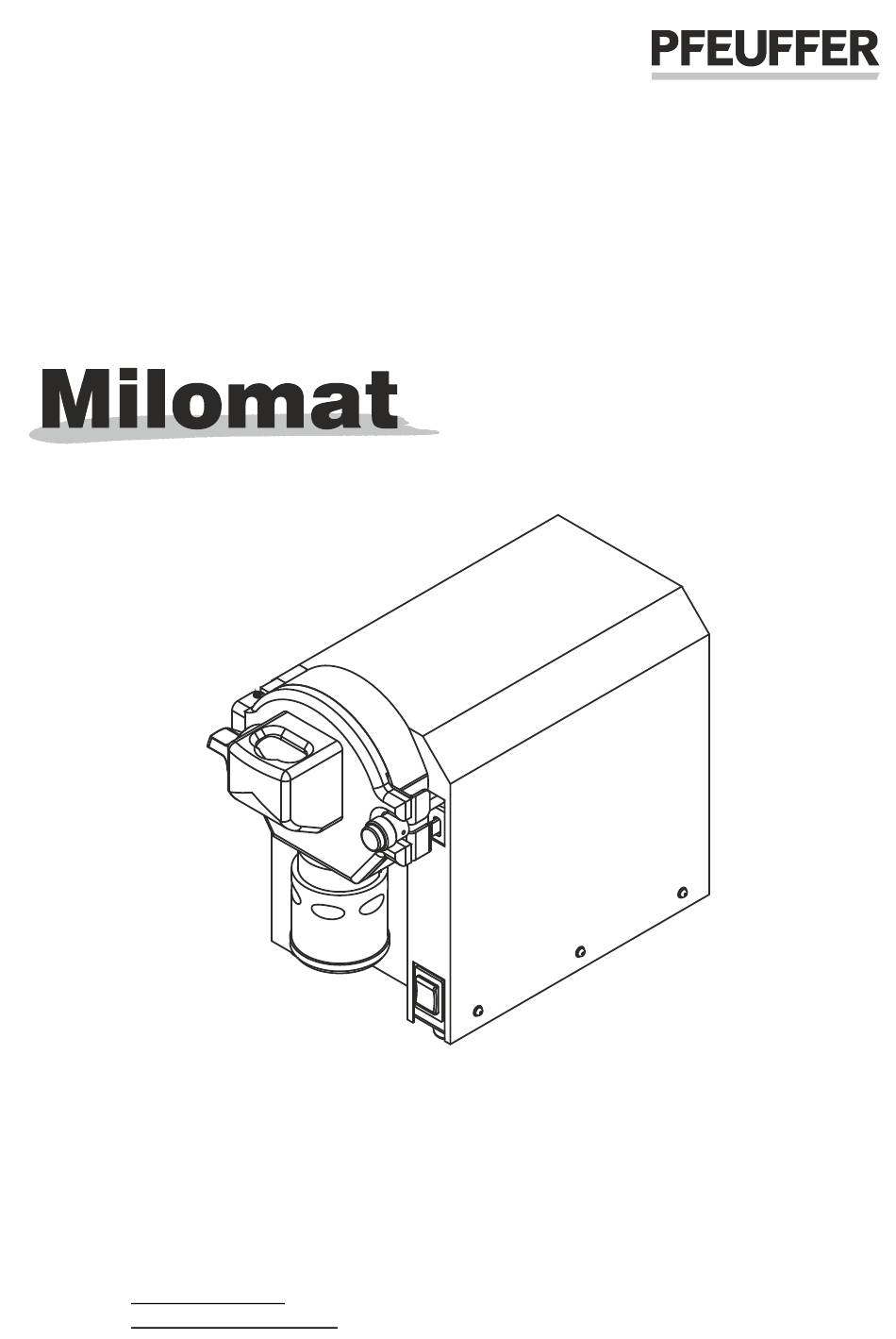

Artikelnummer / Article no.
Operating Instructions
Laboratory mill
Pfeuffer GmbH
Flugplatzstraße 70
97318 Kitzingen
GERMANY
Phone:
+49 9321 9369-0
Fax:
+49 9321 9369-50
E-mail:
info@pfeuffer.com
Internet: http://www.pfeuffer.com
1520 9001
Translation of the original Operating Instructions
Revision 1/17.01.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Milomat and is the answer not in the manual?

Questions and answers

Related Manuals for Pfeuffer Milomat

Summary of Contents for Pfeuffer Milomat

  • Page 1 1520 9001 Artikelnummer / Article no. Operating Instructions Laboratory mill Pfeuffer GmbH Flugplatzstraße 70 97318 Kitzingen GERMANY Phone: +49 9321 9369-0 Fax: +49 9321 9369-50 E-mail: info@pfeuffer.com Revision 1/17.01.2017 Internet: http://www.pfeuffer.com Translation of the original Operating Instructions...
  • Page 2 Operating Instructions MILOMAT laboratory mill These Operating Instructions are a constituent part of the MILOMAT laboratory mill and must be available to all operating personnel at all times. They are intended for the operating company of the system, the operating personnel and the specialists who are responsible for the transport, assembly, installation, operation, maintenance, cleaning, disassembly and disposal.

  • Page 3: Table Of Contents

    Safety measures (to be carried out by the owner) ................. 10 General safety notes ..........................11 Safety tests .............................. 12 Residual dangers in connection with the MILOMAT ................12 Switch-off procedure ..........................12 Technical data .......................... 13 Dimensions and weight ........................... 13 Power supply ............................

  • Page 4: Introduction

    Operating Instructions MILOMAT laboratory mill Introduction Intendend use The laboratory mill MILOMAT is used to mill agricultural cereals. The impact mill is perfect for pre- crushing and fine crushing from soft to medium-hard products. Even dry and tough samples can be milled without difficulties.

  • Page 5: Declaration Of Conformity

    Electromagnetic compatibility – Part 6-3: Generic standards – Emission DIN EN 61000-6-3:2007 standard for residential, commercial and light-industrial environments This declaration shall become null and void should any alterations be made to the MILOMAT laboratory mill without our approval. Kitzingen, _________________________...

  • Page 6: Design Characteristics Of Hazard Warnings

    Operating Instructions MILOMAT laboratory mill Design characteristics of hazard warnings The Pfeuffer GmbH Operating Instructions contain information which must be observed for the sake of your personal safety and to avoid damage to property. Information concerning your personal safety is shown by means of a triangle.

  • Page 7: Abbreviations In Electrical Engineering

    The identification plate with the type designation is located on the machine housing (rear wall). Correct information of type designation, serial number and year of manufacture is important for all queries. This ensures fast processing. Example of a Pfeuffer GmbH identification plate: Pfeuffer GmbH Tel. +49 9321 969-0 Flugplatzstraße 70...

  • Page 8: Safety

    The plug connection for the mains cable (C19/C20 coupler) is located at the rear panel (see figure 1).  In an emergency, switch off the MILOMAT using the main switch, position 0.  Disconnect the mains cable from the electrical power supply, or pull out the coupler.

  • Page 9: Safety Switch

    (e. g. table) is required for this. Danger area The entire area one meter around the MILOMAT is a danger area during maintenance and repair work. Keep the area around the MILOMAT clear of objects. © 2017 Pfeuffer GmbH...

  • Page 10: Operating And Maintenance Personnel

    1. The MILOMAT is only allowed to be operated by authorized and instructed people. 2. The responsibilities for operating the MILOMAT must be clearly defined and complied with so that no unclear competencies arise with regard to the aspect of safety.

  • Page 11: General Safety Notes

     Hazardous substances (in Germany, the technical rules for hazardous substances – TRGS 555 apply)  Environmental protection regulations. Electrical connections The MILOMAT is only allowed to be connected to a socket earthed in accordance with the regulations, using a protective conductor. Illuminance The owner must ensure that there is adequate and homogeneous illumination in all areas.

  • Page 12: Safety Tests

    (only by specialist personnel):  Empty the MILOMAT laboratory mill.  Switch off the MILOMAT using the main switch, position 0.  Disconnect the mains cable from the electrical power supply, or pull out the coupler.

  • Page 13: Technical Data

    Operating Instructions MILOMAT laboratory mill Technical data MILOMAT Laboratory mill Sample amount 0.02 Liter Products Cereals, maize, sunflower seeds, beans, peas and seeds Dimensions and weight Height 300 mm Width 160 mm Length 280 mm Weight 10 kg Power supply...

  • Page 14: Delivery, Transport And Storage

     Immediately inform the supplier or Pfeuffer GmbH. Intermediate storage The freight packaging of the MILOMAT and the accessory/replacement parts is configured for a storage duration of up to six months from delivery.  Do not place any heavy objects on the packaging.

  • Page 15: Transport To The Installation Site (By The Customer)

     Carefully unpack the laboratory mill MILOMAT (see chapter 4.4).  Place the MILOMAT level on a solid table with a smooth and clean surface.  Make sure there is an adequate distance to all sides so that no heat buildup can occur.

  • Page 16: Function

    Air filter Sequence of functions The laboratory mill MILOMAT is an impact mill for agricultural cereals. Fill a measuring beaker (0.02 l, accessory moisture meter HE 60/90) with the cleaned sample. Place the contents in the filling hopper. The product trickles into the milling chamber by rotating the dosing knob. The product is smashed between a standing and a rotating metal pin collar (impact effect).

  • Page 17: Operation

    Operating Instructions MILOMAT laboratory mill Operation The MILOMAT laboratory mill is only allowed to be operated by personnel who have been qualified and trained in its operation. Sample preparation NOTE Foreign bodies must be removed prior to the milling!  Select a representative and cleaned sample for the milling.
  • Page 18  Slowly turn the dosing knob on the dosing feed backwards until the filling hopper is completely emptied.  Let the MILOMAT run until all grains are milled.  Switch off the MILOMAT by pressing the main switch, position 0.
  • Page 19 The laboratory mill may not be used as a production machine or put into continuous operation!  To avoid bending the metal pins in the milling chamber, allow the MILOMAT to cool down sufficiently after each milling. © 2017 Pfeuffer GmbH...

  • Page 20: Milling Process Of Inhomogeneous Milling Material With A Sample Dividing Cup (Option)

    Operating Instructions MILOMAT laboratory mill Milling process of inhomogeneous milling material with a sample dividing cup (option) The sample dividing cup is used to increase the measuring accuracy by using a larger sample quantity. We recommend the use of the sample dividing cup especially for sample preparation for the moisture determination of humid maize.

  • Page 21: Maintenance And Cleaning

    The Maintenance and cleaning chapter is only intended for specialist operators. NOTE Opening the housing and inappropriate operation will invalidate the warranty. To ensure trouble-free operation, it is essential for the MILOMAT to be cleaned and maintained at regular intervals. DANGER...

  • Page 22: Renewing The Air Filter

    Pfeuffer GmbH expressly points out that fitting spare parts and renewing wearing parts are procedures which require a certain level of experience! This work should only be carried out by a specialist if it is not possible to send the MILOMAT to Pfeuffer GmbH customer service.

  • Page 23: Tools And Equipment

     Wear protective gloves. Burns to hands and fingers! The motor temperature increases during operation, reaching in excess of 40 °C!  Allow the MILOMAT (motor) to cool down adequately after operation, or wear protective gloves. NOTE Keep all screws and removed small parts carefully.
  • Page 24  Unscrew the 7 housing mounting screws (three clamping flange screws M3 x 8 on the sides and a lens head screw on the top).  Place the MILOMAT on its side.  Use suitable pliers to pull out both sealing profiles between housing and chassis downwards.
  • Page 25 Operating Instructions MILOMAT laboratory mill Figure 22:Remove housing  Replace the MILOMAT and remove the housing. Figure 23: Insert locking spindle  For the subsequent assembly, insert the loose locking spindle as shown in figure 23 (left) in such a way that it can be pulled out from the front with a suitable pliers, as shown in figure 23 (right).

  • Page 26: Changing The V-Belt

    The motor does not turn to the nominal speed or takes more time for it. The belts of the MILOMAT are run in, and their tension is carefully checked before delivery.  Opening the housing, see chapter 8.4.
  • Page 27 Operating Instructions MILOMAT laboratory mill  Remove the eddy current disc by means of the two lens head screws M3x8 and fan discs. Figure 27: Remove the eddy current disc  Remove the old V-belt.  Install the new V-belt.

  • Page 28: Changing The Impact Wheel

    Operating Instructions MILOMAT laboratory mill Changing the impact wheel The impact wheel only needs to be changed, when metal pins are broken or deformed. For safety reasons, the impact wheel may only be changed completely!  Disconnect the mains cable from the electrical power supply, or pull out the coupler.

  • Page 29: Changing The Outlet

    Operating Instructions MILOMAT laboratory mill Changing the outlet  Loosen the two lens head screws (item 5) in the outlet from below.  Remove the outlet.  Fasten the new outlet, see figure 33. Figure 33: Outlet, complete Item Designation...

  • Page 30: Malfunctions - Causes And Rectification

    Appropriate tools and test instruments must be provided to these personnel. If the specified measures do not prove successful, contact Pfeuffer GmbH. Correct information of type designation, serial number and year of manufacture is important for all queries.

  • Page 31: 10 Spare Parts And Accessories

    We wish to point out expressly that replacement and accessory parts not supplied by us will not have been tested and approved by us either. Installing and/or using such products can thus result in the design properties of the MILOMAT laboratory mill being negatively impaired. Pfeuffer GmbH cannot be held liable for damage attributable to the use of non-genuine parts and non-genuine accessories.

  • Page 32: 11 Emergency

    Dismantling is only allowed to be carried out by specialist personnel, refer to the definition in chapter 2.4.  Disconnect the mains plug before you start dismantling. The MILOMAT must be disposed of in accordance with the applicable local environmental regulations (waste electrical and electronic equipment directive 2012/19/EU). Special waste Oil, cleaning agents, contaminated cleaning tools (brush, rags, etc.) must be disposed of...
