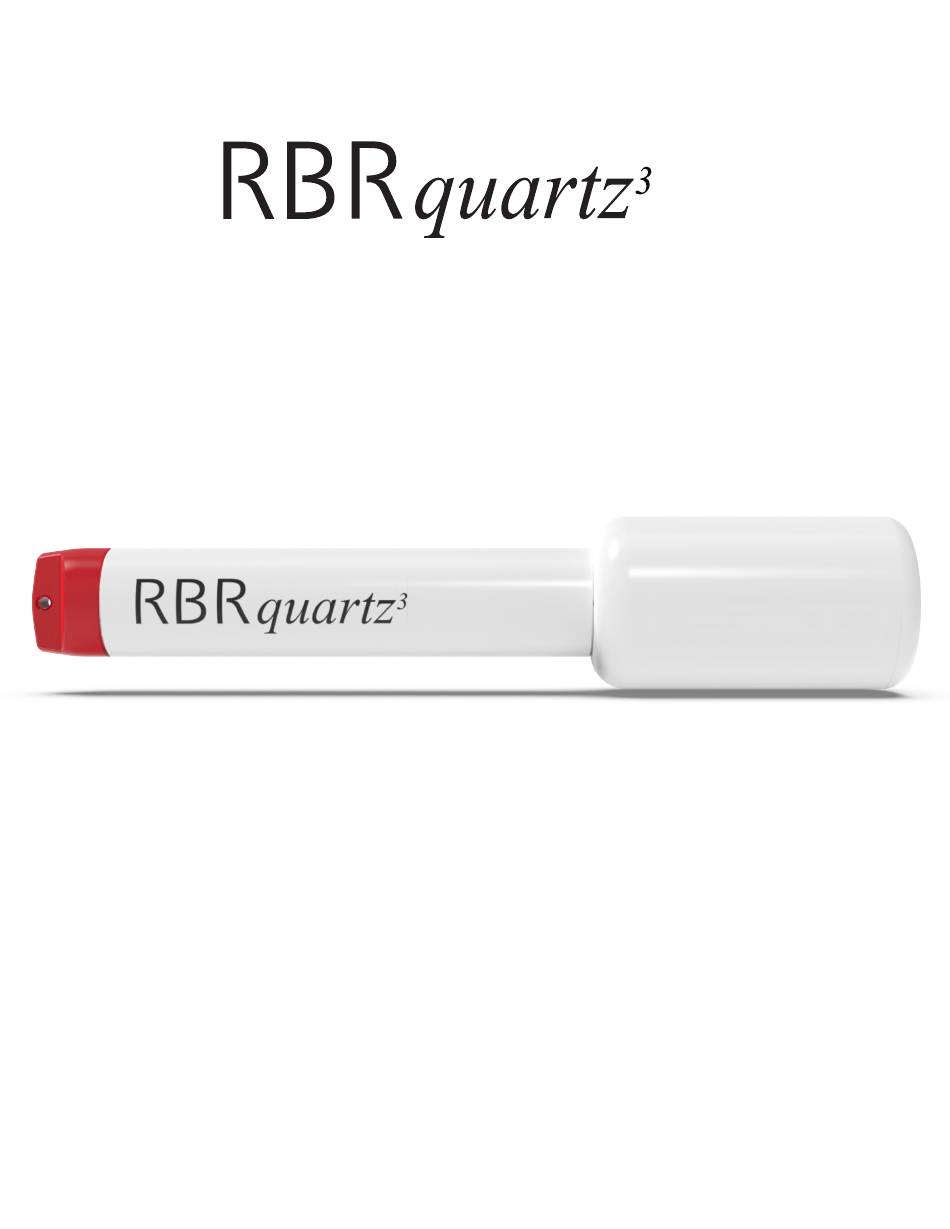

- Page 1 INSTRUMENT GUIDE rbr-global.com...
-
Page 2: Table Of Contents
Replacing an O-ring.................................17 6.6.4 Corrective maintenance ..............................18 Overview:..................................18 6.6.5 Installation of calibration adapter ..........................22 Remove anti-biofouling mesh ............................22 Installation of the calibration adapter...........................22 6.6.6 Repairs ..................................... 23 6.6.7 Support kits ..................................24 6.7 Internal and External Power draw ....................24 RBR#0008818revA ... - Page 3 6.7.2 Paused ..................................... 24 6.7.3 USB Power..................................24 Appendix........................25 7.1 Appendix A - Product drawing......................25 7.2 Appendix B - Paros interface drawing.................... 27 7.3 Appendix C - Anti biofouling mesh assembly ................28 7.4 Appendix D -Calibration adapter installation................29 RBR#0008818revA ...
-
Page 4: Introduction
2 Introduction This document introduces you to your RBR instrument and will provide the information to deploy and maintain it. It is written specifically for the RBRquartz QYou can access the RBR instrument guide on the USB data stick provided when you purchase a logger, from the Help menu in Ruskin, and on the RBR web site, at www.rbr-global.com. -
Page 5: Revision History
3 Revision history Revision No. Release Date Notes 04-May-2020 Original RBR#0008818revA – 5... -
Page 6: Warranty Statement
Units suffering from such defects will be repaired or replaced at the discretion of RBR Ltd., provided that the problem has appeared during normal use of the instrument for the purpose intended by us. The liability of RBR Ltd. extends only to the replacement cost of the instrument. -
Page 7: Rbrquartz Q
16Hz for wave height and period calculations. Wave measurements are made by burst sampling, with programmable sample rate, number of samples, and burst interval. High accuracy marine temperature data are recorded with each measurement. Wave, tide, and temperature measurements are standard with every RBRquartz³ Q. RBR#0008818revA – 7... -
Page 8: Included In Shipment
5.1.2 Included in Shipment Item No. Description RBRquartz 8xAA batteries RBR quick start guide O-ring removal tool Replacement O-rings Spare desiccant Silicone grease (3g) RBR#0008818revA – 8... -
Page 9: Specifications
Weight (in air): 2300g Size: ~510mm x Ø100mm Displaced Volume: 2395cm Housing: Plastic Depth rating: 750m Operational temperature: -20°C to 50°C* Storage temperature: -20°C to 50°C Power: 8 AA cells** External power: 4.5-30VDC Communication: USB-C or RS-232/485 RBR#0008818revA – 9... - Page 10 10 / 20 / 55 / 125 / 190 / 260 / 330 dbar Initial accuracy: ±0.01% FS (full scale) Resolution: 100ppb (at 16Hz sampling rate) The full mechanical drawing is available in Appendix A - Product drawing RBR#0008818revA – 10...
-
Page 11: Instrument Hardware
Carefully inspect the O-rings, as described in the Inspecting the O-rings section, before deploying the logger. Do not use excessive force when tightening the end cap; hand-tight is quite sufficient, as the seal depends upon the O-rings, not the end cap tightness. RBR#0008818revA – 11... -
Page 12: Changing The Batteries
6.2 Changing the batteries Permalink:https://docs.rbr-global.com/display/RSKDOC/Changing+the+batteries Loggers are powered by eight AA size cells. These can be almost any chemistry with only a few restrictions depending on the sensors ordered. Check your logger's compatibility in Ruskin to see if your instrument has a restriction. ... -
Page 13: Installing Desiccant
To stop the logger, open the battery end cap one quarter turn. When the logger is stopped it will vibrate for three short pulses to provide positive feedback. RBR#0008818revA – 13... -
Page 14: Wi-Fi Feature
If you have enabled the Wi-Fi feature on your logger and a mobile device, you can connect and view data from the logger on the mobile device. Your logger will be shipped from the factory with the Wi-Fi on and set to record data in the RBR#0008818revA – 14... -
Page 15: Maintenance And Repairs
6.6.2 O-rings The single most important item of maintenance on any RBR submersible data logger is the care of the O-rings. Any kind of water leak can damage the circuitry beyond repair and cause complete data loss. Every logger's seal depends upon its O-rings, not the end cap tightness. -
Page 16: Replacing An O-Ring
6.6.3 O-rings - RBRquartz BPR|zero The single most important item of maintenance on any RBR submersible data logger is the care of the O-rings. Any kind of water leak can damage the circuitry beyond repair and cause complete data loss. Every logger's seal depends upon its O-rings, not the end cap tightness. -
Page 17: Inspecting O-Rings
If the O-ring is scratched, cut, distorted, perished or defective in any other way it must be replaced. If any of the surfaces of the O-ring groove are scratched, pitted or otherwise damaged, the logger may need to be returned to RBR for refurbishment: please contact us for advice. -
Page 18: Corrective Maintenance
Most experienced users of oceanographic equipment replace all O-rings before every deployment as a matter of routine. The cost of an O-ring is negligible compared with the cost of the instrument and its deployment. Therefore, routine replacement of O-rings is cheap insurance. O-rings: #2-225 N70 O-ring (RBR#0002408), #8-225 N90 backup ring (RBR#0009115) 6.6.4 Corrective maintenance Overview: The Paroscientific Digiquartz® sensor is filled with a buffer, which is connected to the environment via a tube. - Page 19 The buffer tube interface assembly drawing (Figure 2) shows that there are several features in the buffer tube assembly where the needle can get stuck, moving the needle side to side will allow you to clear these features and fully insert the needle. RBR#0008818revA – 19...
- Page 20 Lastly, the retaining ring (0002069) is re-inserted by opening the split ring and feeding the ring into the recession of the SEC, holding it in place with one finger while continuing to feed the remainder of the ring into the recess. Figure 1 - Anit biofouling mesh assembly RBR#0008818revA – 20...
- Page 21 Figure 2 - Buffer tube interface assembly RBR replacement hardware: Part Number Description 0008765 Anti-biofouling Mesh hardware kit for BPR (Includes the items below) • 0004583 14mm Dia. Nickel Copper Anti-biofouling Mesh • 0004592 Upper Mesh Insulator Disk • 0004591 Lower Mesh Insulator Disk •...
-
Page 22: Installation Of Calibration Adapter
6.6.5 Installation of calibration adapter A calibration adapter is available from RBR. This section below will describe how to install this adapter. The full drawing of the assembly can be found in Appendix D -Calibration adapter installation. Remove anti-biofouling mesh Follow the instructions for accessing the buffer tube as described in: Corrective maintenance... -
Page 23: Repairs
There are no user-repairable parts of the logger. Any attempt at repair, whether successful or not, without prior authorization from RBR Ltd., will void the warranty. If it is necessary to return the product to RBR for an upgrade, repair, or calibration; please review the detailed shipping information on our website www.rbr-global.com before returning the unit. -
Page 24: Support Kits
(or no) batteries will have new batteries installed and the costs will be added to the repair invoice. 6.6.7 Support kits To simplify maintenance of your data logger, RBR sells support kits with enough O-rings, and silicone grease for 5 deployments. Please contact RBR for more information or to place an order. -
Page 25: Appendix
7 Appendix 7.1 Appendix A - Product drawing RBR#0008818revA – 25... - Page 26 RBR#0008818revA – 26...
-
Page 27: Appendix B - Paros Interface Drawing
7.2 Appendix B - Paros interface drawing RBR#0008818revA – 27... -
Page 28: Appendix C - Anti Biofouling Mesh Assembly
7.3 Appendix C - Anti biofouling mesh assembly RBR#0008818revA – 28... -
Page 29: Appendix D -Calibration Adapter Installation
7.4 Appendix D -Calibration adapter installation RBR#0008818revA – 29...
