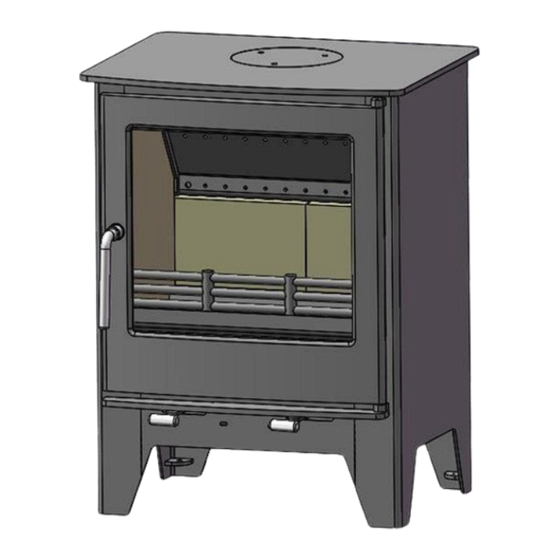

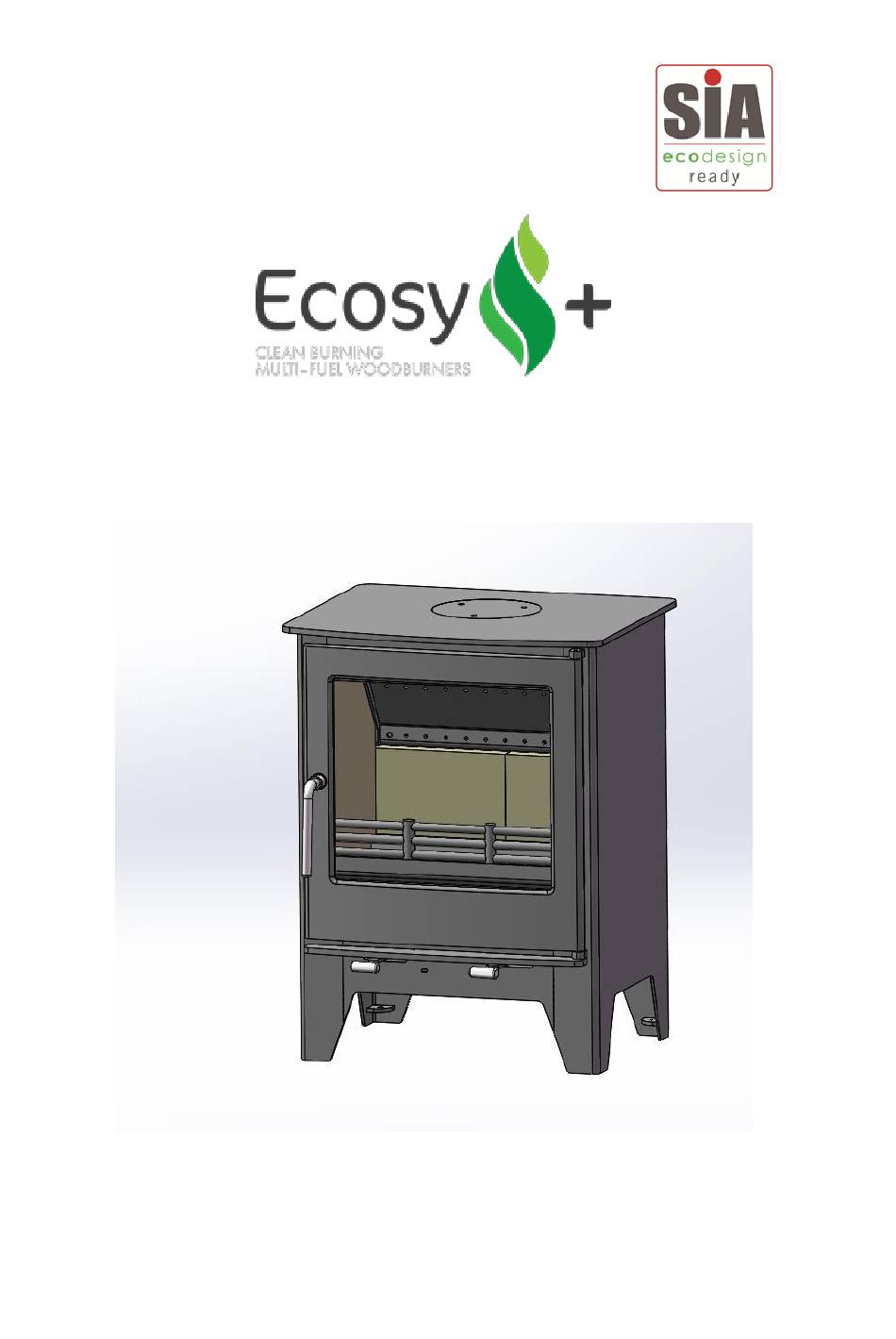

- Page 1 Snug 7 Stove (Woodburning With Multi-Fuel Grate Option) Version number 1: Issue date 14/08/2019 Snug 7 Stove Model: Size: W470XD388XH619MM Page 1 of 11...
-
Page 2: Installation
INTRODUCTION Wood-burning with multi-fuel option Item No.: Snug 7 Size: W470XD388XH619 (mm) SAFETY Safety is the most important consideration when using and installing your stove. If not installed and used correctly, a house fire could result. Installation must comply with relevant national and local Building Regulations and fire safety standards. - Page 3 TECHNICAL Snug 7 - Performance Test Results. Weight 80kg Test Fuel Wood Logs Maxibrite (Optional Grate) Total Efficiency (%) 80.8 77.7 Nominal heat output (kW) Mean CO emission (@13% O2) 0.08 0.08 Flue gas mass flow (g/s) Mean C (at 13 % O...
-
Page 4: Optional Extras
Access should be provided for cleaning the flue to ensure that the passageways for exhaust gases remain free from obstruction. OPTIONAL EXTRAS • Multi-Fuel Grate – Your stove will come as standard with a Wood-burning only style of flat grate. You are only permitted to burn dry seasoned wood and no other fuels on this style of grate that comes with the stove. - Page 5 The Ecosy+ Snug 7 has been recommended as suitable for use in smoke control areas when burning seasoned wood logs. The appliance has a factory-fitted modification to the secondary air control to prevent closure beyond 5mm open position at the vent opening.
-
Page 6: Air Inlet Controls
Solid Fuel – (Please ensure Multi-Fuel grate is installed before burning smokeless coal) Solid mineral fuel should be placed in the stove so that there is no more than a 30° incline of the fuel bed from front to back. It should not be stacked above the level of the rear firebrick as this may result in damage to the stove. - Page 7 The glove is provided for adjusting the air inlets and for opening the door when the stove is hot, as these knobs will heat up when in use. The tool handle provided is for removing the ash-pan. NOTE – all parts of the stove will become hot during use and care needs to be taken to avoid injury through burning.
- Page 8 Light with a single chemical firelighter Partially shut the door but leaving it cracked open slightly After about 5 minutes or when the fire is well established, shut the door After a further 3-5 minutes as the fire starts to die, add a further three larger pieces of wood weighing approx.
-
Page 9: Cleaning & Maintenance
The Ecosy+ Snug 7 stove is suitable for use in smoke control areas when used in accordance with these instructions. WARNING- The high temperature paint covering the stove will give off some fumes during the initial few uses of the stove. The fumes are non-toxic, but some people may find them unpleasant –... - Page 10 If fire bricks have just split, they do not need replacing. The bricks only need replacing when they have fully crumbled away exposing the stoves rear or sides. Fire bricks are fully heat resistant but can easily split if struck with a log or other similarly hard object. GUARANTEE The main body of your stove is guaranteed for 5 years.
- Page 11 DRAWINGS Ecosy+, Unit 22-26 – Folly farm, Ramsdell, Tadley, RG26 5GJ Page 11 of 11...
