CMT2380F16 Writer Operation Guide
Overview
The CMT2380F16 Writer is developed to improve production programming efficiency. This document provides basic operational
guidance CMT2380F16 Writer users.
The CMT2380F16 supports the following operations.
Chip online programming operation
Chip offline programming operation
Multi-machine serial programming operation.
The product models covered in this document are shown in the table below.
Product
Frequency
Model
Range
127 – 1020MHz
CMT2380F16
©
Copyright
By CMOSTEK
Table 1. Product Models Covered in This Document
Modulation
Method
OOK/(G)FSK
Rev 0.5 | 1/24
)
Tx Power
Sensitivity
+ 20dBm
-120dBm
AN211
AN211
Configuration
Package
Method
QFN48
Wireless MCU
www.cmostek.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CMOSTEK CMT2380F16
Summary of Contents for CMOSTEK CMT2380F16
-
Page 1: Overview

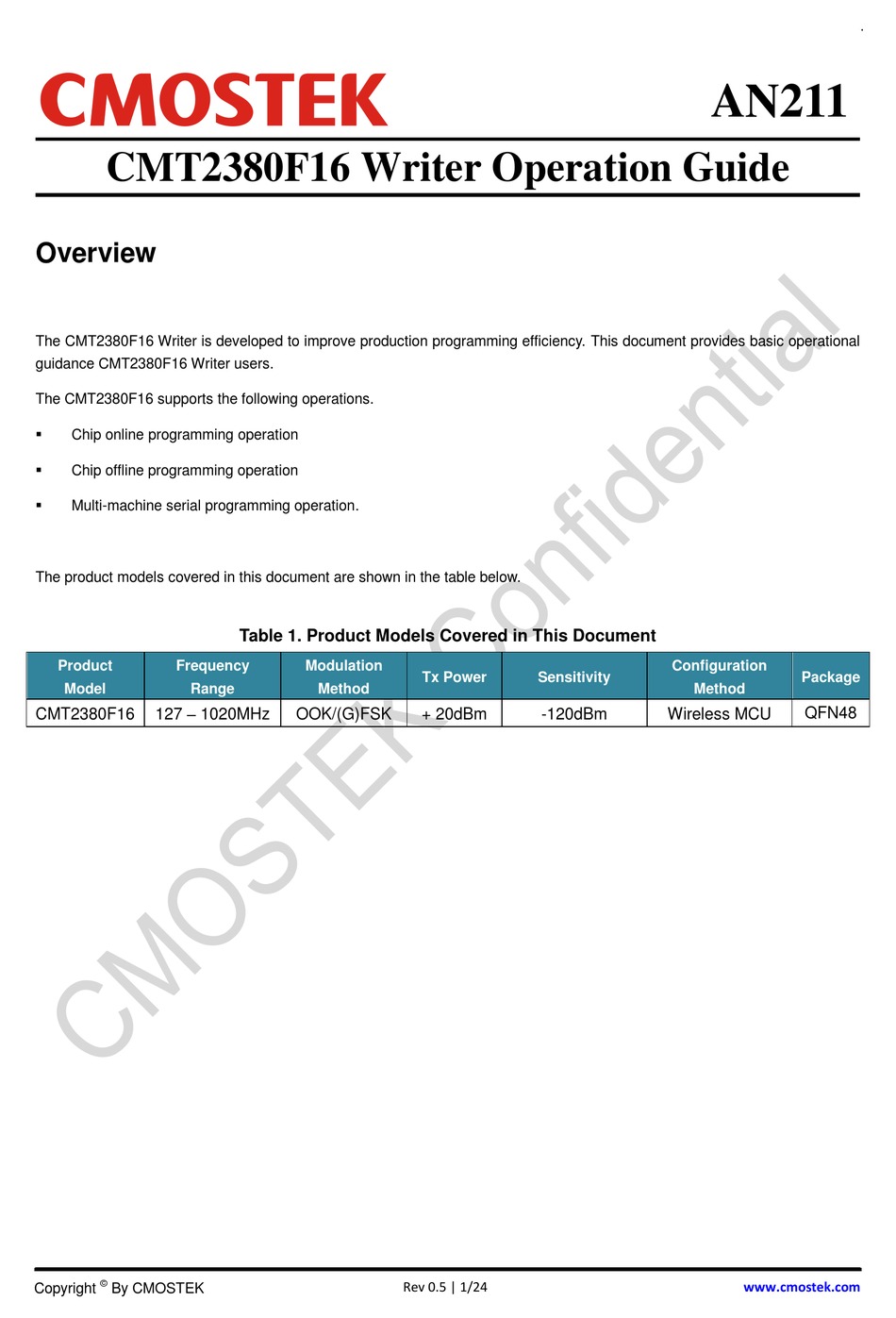

AN211 AN211 CMT2380F16 Writer Operation Guide Overview The CMT2380F16 Writer is developed to improve production programming efficiency. This document provides basic operational guidance CMT2380F16 Writer users. The CMT2380F16 supports the following operations. Chip online programming operation Chip offline programming operation ... -
Page 2: Table Of Contents
AN211 Table of Contents Overview ..............................1 1 CMT2380F16 Writer Introduction ....................3 1.1 Hardware Introduction ............................3 1.2 Writer PC Software ............................. 3 2 CMT2380F16 Writer Operation ......................4 2.1 Online Programming Operation .......................... 5 2.1.1 Chip Model Selection ..........................5 2.1.2... -
Page 3: Cmt2380F16 Writer Introduction
1.1 Hardware Introduction The CMT2380F16 Writer is a programmer designed for the CMT2380F16 chip applying USB interface for programming. It can be programmed online using USB bus power, or programmed offline using an external power supply. Moreover , multiple units can be connected together for one-click batch programming (or for batch programming in factory). -
Page 4: Cmt2380F16 Writer Operation
AN211 2 CMT2380F16 Writer Operation The CMT2380F16 Writer UI interface is shown in the below figure. Figure 2. Writer UI Interface Rev 0.5 | 4/24 www.cmostek.com... -
Page 5: Online Programming Operation
Figure 3. Online Programming Connection The online programming operation flow is described in the below sections 2.1.1 Chip Model Selection Select chip model CMT2380F16(3.3V) is selected automatically as shown in the below figure. Figure 4. Select Chip Model 2.1.2 Load File ... - Page 6 Select the file to be programmed. Click Open to load the files to be programmed. If a .MPJ file is loaded, users can click Auto button to perform Auto operation. See Section 2.1.5 for details. Figure 7. Load File Rev 0.5 | 6/24 www.cmostek.com...
-
Page 7: Insert Isp Code
If users do not need to program ISP code, please sip this step. CMOSTEK-provided ISP code Click Insert ISP Code. Select CMOSTEK-provided ISP code then click Insert button. Figure 8. Insert ISP Code Insert User-defined ISP code 1) Click on Insert ISP Code. - Page 8 The function of ISP code is similar to the STM32 bootloader. The chip supports U1 and ICE programming. The ISP code will occupy some Flash space. After the ISP code is inserted, the software will set ISP space autompatically with the HWBS flag ticked on. Rev 0.5 | 8/24 www.cmostek.com...
-
Page 9: Set Hardware Options
Click Auto button, then select the desired operations, and click Run after then. When one IC programming is done, clock Run again for programming another IC. In general, users can ticked on the the options as shown in the below figure. Rev 0.5 | 9/24 www.cmostek.com... -
Page 10: Save Project File
After clicking Save, the project file information window will pop up, where it can be printed or saved as a picture. When opening this project file for programming later, users can checking the printed file information or the saved image to confirm whether the project file is correct. Rev 0.5 | 10/24 www.cmostek.com... -
Page 11: Read Target Chip Information
As shown in the below figure, if a chip is not encrypted, users can read Flash, ISP space, IAP space and Setting information by clicking Dump Target button. ISP space reading information IAP space reading information Watchdog reading IC option reading information information Figure 14. Read Target Chip Information 2.2 Offline Programming Operation Rev 0.5 | 11/24 www.cmostek.com... -
Page 12: Chip Model Selection
The specific steps are the same as in section 2.1.1. 2.2.2 Load File The specific steps are the same as in section 2.1.2. 2.2.3 Insert ISP Code The specific steps are the same as in section 2.1.3. Rev 0.5 | 12/24 www.cmostek.com... -
Page 13: Set Hardware Options
The maximum value of max counter is 65535. 3) Set the serial number (see Section 3 How to use the serial number for more details). 4) Click Download to download the code and hardware settings to the programmer Rev 0.5 | 13/24 www.cmostek.com... -
Page 14: Press Auto Key To Start Programming
The yellow light is on during programming. After programming completion, if successful, the green turns on and the buzzer will have one long beep, otherwise the red light turns on and the buzzer will have 10 short beeps. Press Auto key to start programming Figure 18. Press Auto Key to Start Programming Rev 0.5 | 14/24 www.cmostek.com... -
Page 15: Offline Copying Programming Operation
10 short beeps. Press Auto key to start programming Figure 19. Offline Copying Programming Connection Rev 0.5 | 15/24 www.cmostek.com... -
Page 16: Serial Number Usage
4 bytes with a valid value range as 0x00000000~0xFFFFFFFF. automatic programming completes (see 2.2.6 Press ‘Auto’ in the programmer to start programming), the number set in the third step will be automatically increased by 1. area range is not used yet. Rev 0.5 | 16/24 www.cmostek.com... -
Page 17: Special Consideration
Based on the setting in the below figure, after programming the second chip, the information stored in 0x3500~0x350F is as follows. Figure 22. Information in Code Buffer - 2 4 Special Consideration IAP Space Figure 23. IAP Space Rev 0.5 | 17/24 www.cmostek.com... - Page 18 When the following message shows up that means the U1 writer needs to be updated firmware. Please make sure the USB cable should NOT unplug during the updating process. Otherwise, The U1 writer will cause unrecoverable damaged. Figure 24. Firmware Upgrading Warning Rev 0.5 | 18/24 www.cmostek.com...
-
Page 19: Appendix
The ISP space is configured by the user through the programmer with ISP space ranging from 0 kbytes to 3.5 kbytes. As the IAP space and AP space of the CMT2380F16 are shared, apart from the ISP space, the rest of 8K space is the AP and IAP space. -
Page 20: Chip Hardware Options
Disable : Disable LVFWP ENROSC Enable : MCU will used the internal 6MHz oscillator Disable : MCU will used the external oscillator HWENW Enable : Automatically enable Watch-dog Timer by hardware when MCU is powered up Rev 0.5 | 20/24 www.cmostek.com... - Page 21 Disable : BOD0 can not trigger a RESET to CPU BO1REO Enable : BOD1 will trigger a RESET event to CPU on AP program start address Disable : BOD1 can not trigger a RESET to CPU NSWDT Rev 0.5 | 21/24 www.cmostek.com...
- Page 22 AN211 Enable : Enable the WDT to run in power down mode Disable : Disable the WDT to run in power down mode Rev 0.5 | 22/24 www.cmostek.com...
-
Page 23: Revise History
AN211 6 Revise History Table 2. Revise History Records Version No. Chapter Description Date Initial version 2019-07-19 Rev 0.5 | 23/24 www.cmostek.com... -
Page 24: Contacts
The material contained herein is the exclusive property of CMOSTEK and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of CMOSTEK. CMOSTEK products are not authorized for use as critical components in life support devices or systems without express written approval of CMOSTEK.
