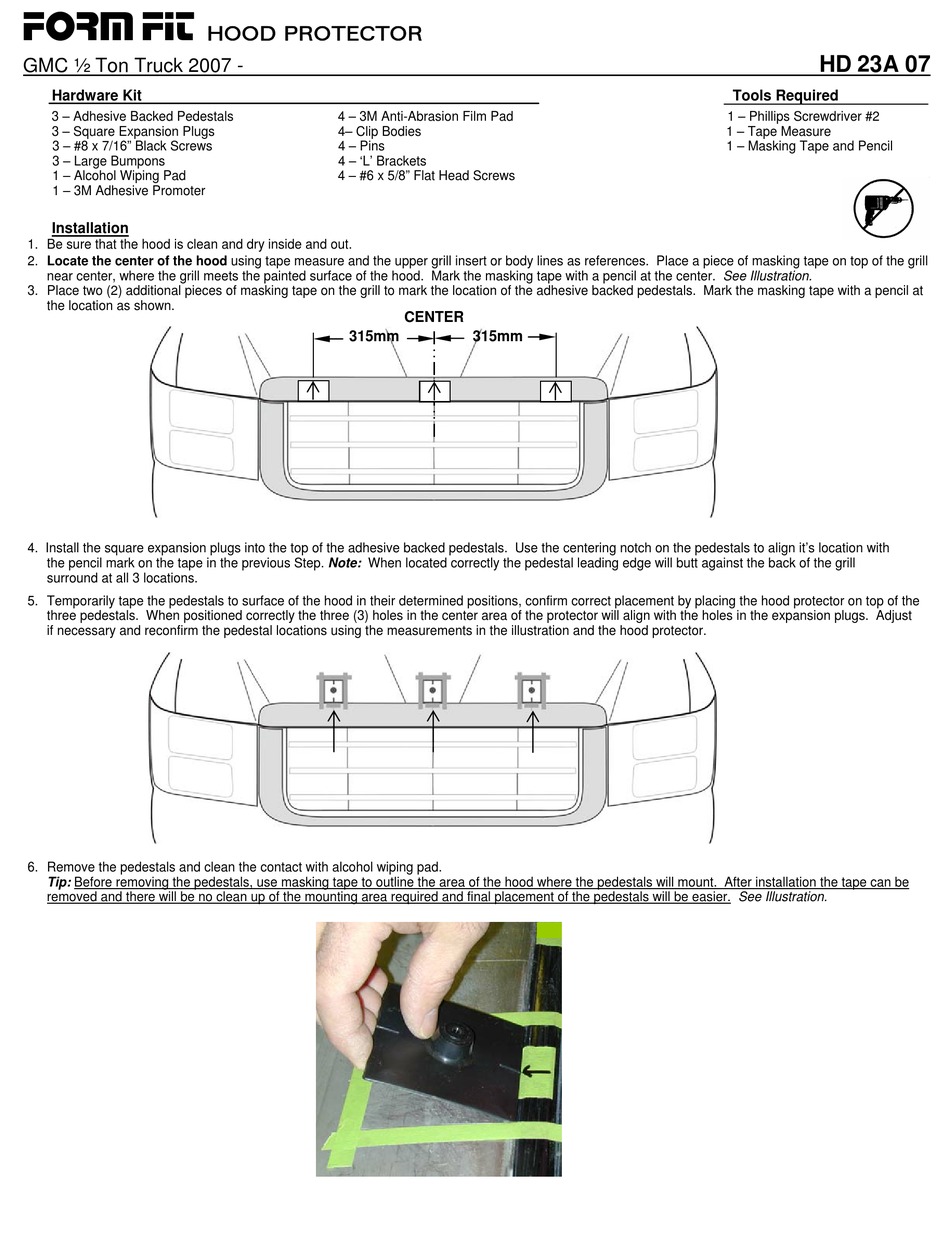

FORM FIT
GMC ½ Ton Truck 2007 -
Hardware Kit
3 – Adhesive Backed Pedestals
3 – Square Expansion Plugs
3 – #8 x 7/16" Black Screws
3 – Large Bumpons
1 – Alcohol Wiping Pad
1 – 3M Adhesive Promoter
Installation
1. Be sure that the hood is clean and dry inside and out.
2. Locate the center of the hood using tape measure and the upper grill insert or body lines as references. Place a piece of masking tape on top of the grill
near center, where the grill meets the painted surface of the hood. Mark the masking tape with a pencil at the center. See Illustration.
3. Place two (2) additional pieces of masking tape on the grill to mark the location of the adhesive backed pedestals. Mark the masking tape with a pencil at
the location as shown.
4. Install the square expansion plugs into the top of the adhesive backed pedestals. Use the centering notch on the pedestals to align it's location with
the pencil mark on the tape in the previous Step. Note: When located correctly the pedestal leading edge will butt against the back of the grill
surround at all 3 locations.
5. Temporarily tape the pedestals to surface of the hood in their determined positions, confirm correct placement by placing the hood protector on top of the
three pedestals. When positioned correctly the three (3) holes in the center area of the protector will align with the holes in the expansion plugs. Adjust
if necessary and reconfirm the pedestal locations using the measurements in the illustration and the hood protector.
6. Remove the pedestals and clean the contact with alcohol wiping pad.
Tip: Before removing the pedestals, use masking tape to outline the area of the hood where the pedestals will mount. After installation the tape can be
removed and there will be no clean up of the mounting area required and final placement of the pedestals will be easier. See Illustration.
HOOD PROTECTOR
4 – 3M Anti-Abrasion Film Pad
4– Clip Bodies
4 – Pins
4 – 'L' Brackets
4 – #6 x 5/8" Flat Head Screws
315mm
CENTER
315mm
HD 23A 07
Tools Required
1 – Phillips Screwdriver #2
1 – Tape Measure
1 – Masking Tape and Pencil
Advertisement
Table of Contents
Related Manuals for FormFit HD 23A 07
Summary of Contents for FormFit HD 23A 07
- Page 1 FORM FIT HOOD PROTECTOR HD 23A 07 GMC ½ Ton Truck 2007 - Hardware Kit Tools Required 3 – Adhesive Backed Pedestals 4 – 3M Anti-Abrasion Film Pad 1 – Phillips Screwdriver #2 3 – Square Expansion Plugs 4– Clip Bodies 1 –...
- Page 2 7. After the Alcohol has dried, apply Adhesive Promoter to the mounting area. Follow the instructions on the promoter for use. Allow the adhesive promoter to dry. Remove the protective film from the bottom of the pedestal and adhere to the hood surface by contacting the leading edge of the pedestal with it’s location at the back of the grill surround and rotating into place on the hood surface.
- Page 3 FORM FIT PROTECTEUR DE CAPOT HD 23A 07 GMC ½ Ton Truck 2007 - Sachet de fixation Outils requis 3 – Adhésif piédestaux 4 – Tampons abrasifs 3M 1 – Tournevis à embout étoilé n°2 3 – Square bouchons expansible 4 –...
- Page 4 7. Après l'alcool a séché, appliquer l'adhésif Promoteur à la zone de montage. Suivre les instructions sur le sachet du promoteur adhésif avant l’utilisation. Permettez promoteur de l'adhésif sécher. Retirez le film protecteur du bas du piédestal et capot adhérer à la surface, en contactant le bord avant du piédestal avec son emplacement à...
