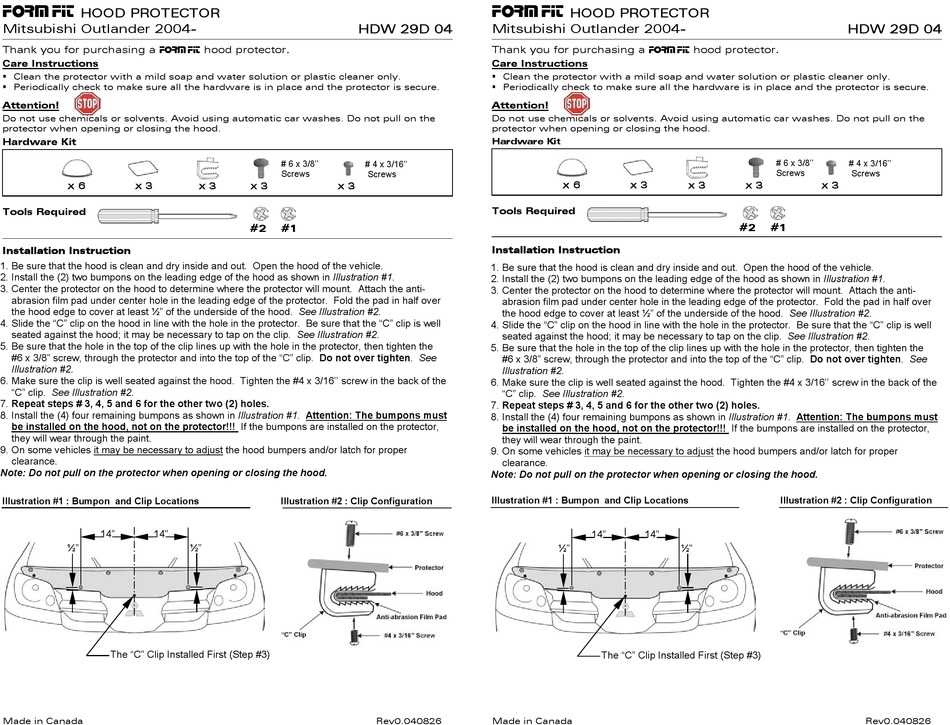

FormFit HDW 29D 04 Quick Manual

FORM FIT
HOOD PROTECTOR
Mitsubishi Outlander 2004-
Thank you for purchasing a form fit hood protector.

Care Instructions

Clean the protector with a mild soap and water solution or plastic cleaner only.
Periodically check to make sure all the hardware is in place and the protector is secure.
Attention!
Do not use chemicals or solvents. Avoid using automatic car washes. Do not pull on the
protector when opening or closing the hood.

Hardware Kit

x 6 x 3

Tools Required

Installation Instruction

1. Be sure that the hood is clean and dry inside and out. Open the hood of the vehicle.
2. Install the (2) two bumpons on the leading edge of the hood as shown in Illustration #1.
3. Center the protector on the hood to determine where the protector will mount. Attach the anti-
abrasion film pad under center hole in the leading edge of the protector. Fold the pad in half over
the hood edge to cover at least ½" of the underside of the hood. See Illustration #2.
4. Slide the "C" clip on the hood in line with the hole in the protector. Be sure that the "C" clip is well
seated against the hood; it may be necessary to tap on the clip. See Illustration #2.
5. Be sure that the hole in the top of the clip lines up with the hole in the protector, then tighten the
#6 x 3/8" screw, through the protector and into the top of the "C" clip. Do not over tighten. See
Illustration #2.
6. Make sure the clip is well seated against the hood. Tighten the #4 x 3/16'' screw in the back of the
"C" clip. See Illustration #2.
7. Repeat steps # 3, 4, 5 and 6 for the other two (2) holes.
8. Install the (4) four remaining bumpons as shown in Illustration #1. Attention: The bumpons must
be installed on the hood, not on the protector!!! If the bumpons are installed on the protector,
they will wear through the paint.
9. On some vehicles it may be necessary to adjust the hood bumpers and/or latch for proper
clearance.
Note: Do not pull on the protector when opening or closing the hood.
Illustration #1 : Bumpon and Clip Locations
14" 14"
½"
The "C" Clip Installed First (Step #3)
Made in Canada
HDW 29D 04
# 6 x 3/8'' # 4 x 3/16''
Screws Screws
x 3 x 3 x 3
# #
2 1
Illustration #2 : Clip Configuration
½"
FORM FIT
Mitsubishi Outlander 2004-
Thank you for purchasing a form fit hood protector.
Care Instructions
Clean the protector with a mild soap and water solution or plastic cleaner only.
Periodically check to make sure all the hardware is in place and the protector is secure.
Attention!
Do not use chemicals or solvents. Avoid using automatic car washes. Do not pull on the
protector when opening or closing the hood.
Hardware Kit
Tools Required
Installation Instruction
1. Be sure that the hood is clean and dry inside and out. Open the hood of the vehicle.
2. Install the (2) two bumpons on the leading edge of the hood as shown in Illustration #1.
3. Center the protector on the hood to determine where the protector will mount. Attach the anti-
abrasion film pad under center hole in the leading edge of the protector. Fold the pad in half over
the hood edge to cover at least ½" of the underside of the hood. See Illustration #2.
4. Slide the "C" clip on the hood in line with the hole in the protector. Be sure that the "C" clip is well
seated against the hood; it may be necessary to tap on the clip. See Illustration #2.
5. Be sure that the hole in the top of the clip lines up with the hole in the protector, then tighten the
#6 x 3/8" screw, through the protector and into the top of the "C" clip. Do not over tighten. See
Illustration #2.
6. Make sure the clip is well seated against the hood. Tighten the #4 x 3/16'' screw in the back of the
"C" clip. See Illustration #2.
7. Repeat steps # 3, 4, 5 and 6 for the other two (2) holes.
8. Install the (4) four remaining bumpons as shown in Illustration #1. Attention: The bumpons must
be installed on the hood, not on the protector!!! If the bumpons are installed on the protector,
they will wear through the paint.
9. On some vehicles it may be necessary to adjust the hood bumpers and/or latch for proper
clearance.
Note: Do not pull on the protector when opening or closing the hood.
Illustration #1 : Bumpon and Clip Locations
Rev0.040826 Made in Canada
HOOD PROTECTOR
x 6 x 3
x 3
14" 14"
½" ½"
The "C" Clip Installed First (Step #3)
HDW 29D 04
# 6 x 3/8'' # 4 x 3/16''
Screws Screws
x 3 x 3
# #
2 1
Illustration #2 : Clip Configuration
Rev0.040826
