Lezzon/Exzite
Installation manual – regular and tunable white versions

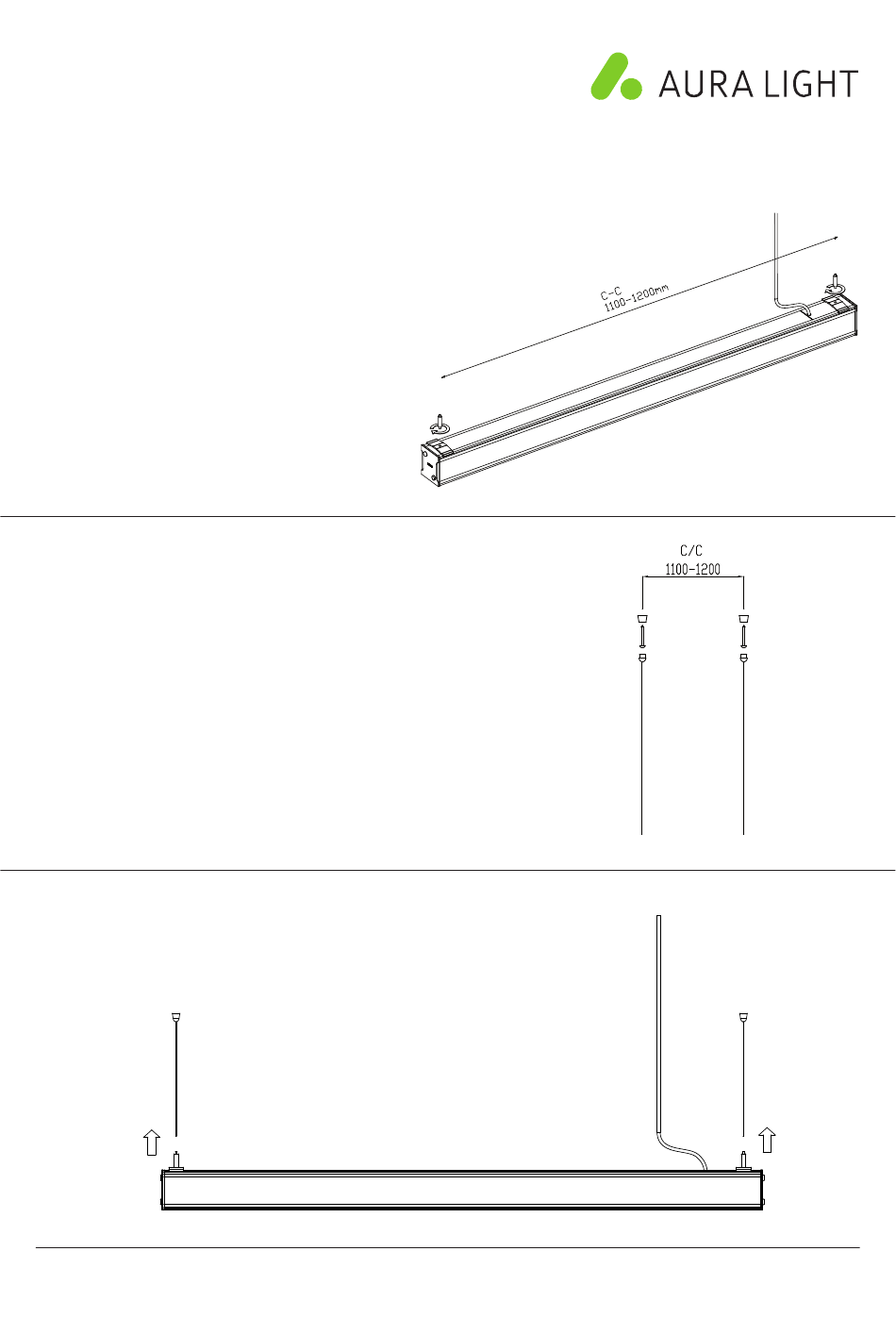

Mounting wire lock. Screw the wire locks
to the two shackles at the luminaire ends.
Installation of ceiling mounts for wire. Attach the ceiling brackets
with screws designed for the current ceiling. C/C 1100-1200 mm.
tScrew the wire brackets in the ceiling brackets.
Installation. Lift the luminaire and insert the wire on top of the wire lock.
Adjust to the proper height and cut off the excess wire (approx. 1 cm from the wire lock).
The luminaire connection cable can be attached to wire with cable ties.
Wire lock
Aura Light International AB, Sweden
Phone customer service +46 (0)492 755 11, info@auralight.com, www.auralight.com
Ceiling bracket
Screw
Wire bracket
I-053-A
