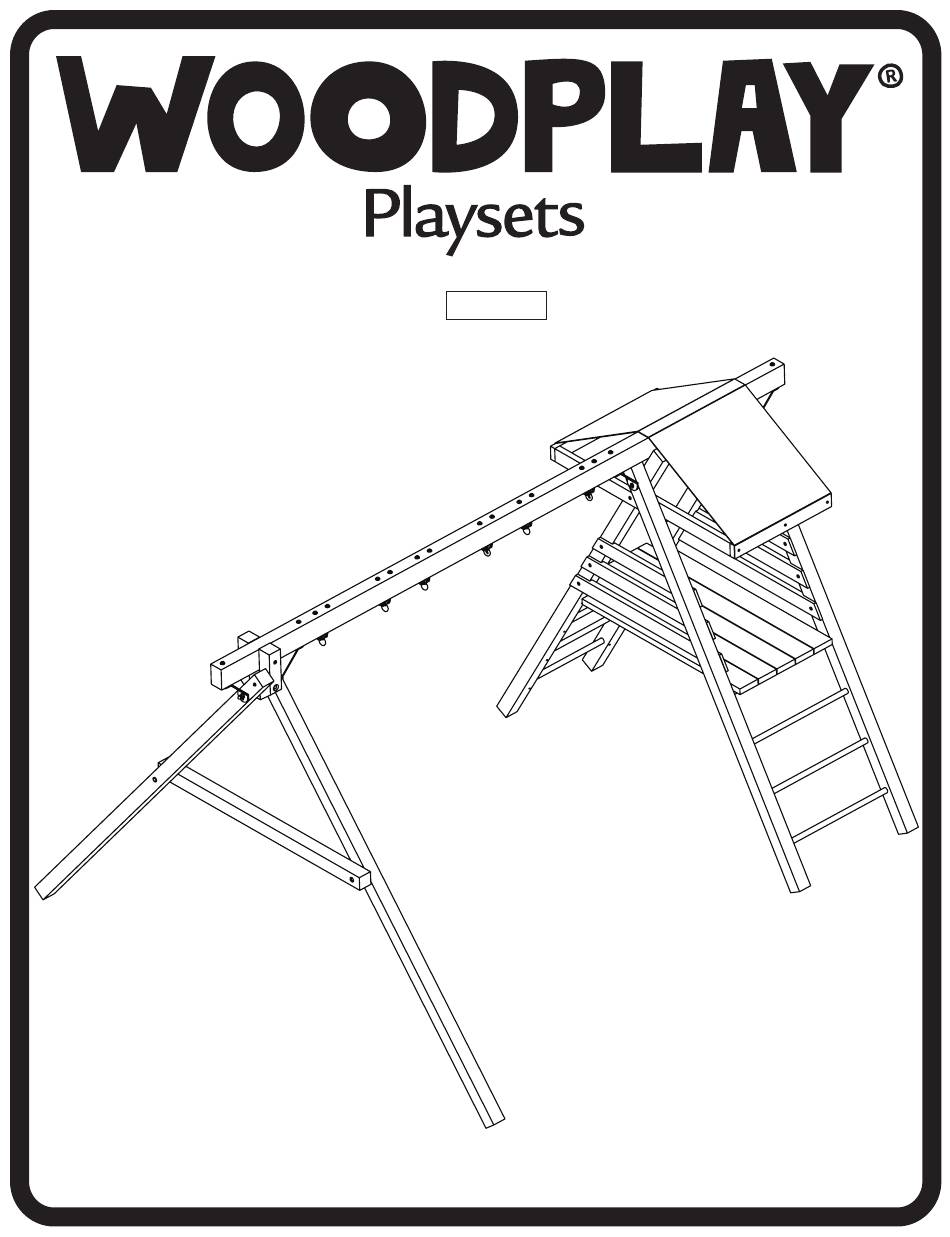

- Page 1 PG121W (JUNGLE CLIMBER) PA-MA-0019-01 817 Maxwell Avenue • Evansville, IN 47711 • 1-800-GO-SWING • www.escaladesports.com • ©2016 Escalade Sports...
- Page 2 I N T R O D U C T I O N Welcome to our family of ready-to-build backyard play equipment. Woodplay playsets are designed with ease of assembly in mind and we provide these step-by-step installation instructions. After reading the information below, locate your structure site and carefully unpack parts. As you unpack your playset, keep the parts identification sheet handy and become familiar with each part before beginning assembly.
- Page 3 S A F E T Y I N S T R U C T I O N S Teach Children: • Not to walk close to, in front of, behind, or between • Not to stand in the swing seats. moving items.
- Page 4 P A R T S L I S T Part # Description PG-24-0033 27 1/2" Deck Support Board PG-24-0034 22" Deck Support Board PG-24-0035 29 3/8" Roof Support Board PG-24-0036 Roof Support - Right PG-24-0037 Roof Support - Left PG-24-0038 49 13/16"...
-
Page 5: Tools Needed
A C C E S S O R Y P A R T S L I S T Part # Description PG-AC-0008 BELT SWING GREEN W/CHAIN PG-AC-0009 BELT SWING YELLOW W/CHAIN PG-HW-M003 ANGLE BRACKET PG-HW-M002 DUCTILE SWING HANGER PG-AC-0010 TRAPEZE SET PG-HW-M008 SPRING CLIP PG-HW-M003... - Page 6 171" 3 Position Headbeam 118" A-FRAME LEG 65" A-FRAME CROSSBRACE PG-44-0037 PG-44-0005 PG-46-0003 27 1/2" Deck Support Board 22" Deck Support Board 32 3/8" Roof Support Board Roof Support Board Right Roof Support Board Left PG-24-0033 PG-24-0034 PG-24-0046 PG-24-0037P PG-24-0036P 29 3/8"...
- Page 7 108" Mini Deck Ladder Rail - Right 108" Mini Deck Ladder Rail - Left 73 5/8" Vinyl Roof PG-44-0036 PG-44-0035 PG-AC-0016 49 13/16" Bottom Safety Rail B 57" Notched Deck Board 57" Deck Board 34 1/8" Upper Middle Safety Rail B 42"...
- Page 8 On a flat Surface lay Right and Left Ladder Rails with small screw holes facing up and insert 33 inch Rungs. Secure rungs with #10 X 2" self tapping screws. #10 x 2" Self Tapping Screw PG-44-0035 108" Mini Deck Ladder Rail - Left PG-44-0036 108"...
- Page 9 On a flat Surface lay Right and Left Ladder Rails with small screw holes facing up and insert 26 inch Rungs. Secure rungs with #10 X 2" self tapping screws. PG-44-0036 108" Mini Deck Ladder Rail - Right PG-44-0035 108" Mini Deck Ladder Rail - Left #10 x 2"...
- Page 10 Lay Ladder Assemblies flat on the ground, line up holes in both assemblies and insert hardware as shown. Tighten hardware but leave loose enough to for ladder to pivot. ANGLE BRACKET 3/8-16 x 7 Hex Bolt 3/8" FLAT WASHER 3/8"-16 ACORN NUT 3/8"...
- Page 11 Lay the Deck Boards as shown and attach Support Boards with #8x 2 1/2 screws. #8X2 1/2 PH FLAT HD WDSCR PG-26-0019 57" Notched Deck Board PG-24-0034 22" Deck Support Board PG-26-0019 57" Notched Deck Board PG-24-0033 27 1/2" Deck Support Board PG-26-0021 57"...
- Page 12 With the help of another person lift the Ladder Assemblies and Place Deck on the rungs of the Ladder Assemblies. Attach Safety Cups to Deck and rung as shown in Detail A. Detail A PG-HW-M013 1 1/4" Safety Cup *Bottom View 1/4 x 1"...
- Page 13 Attach Upper, Middle and Bottom Safety Rails with 1/4” Lag Screws and 1/4 Washers as shown. PG-24-0043 34 1/8" Upper Middle Safety Rail B 1/4" FLAT WASHER PG-24-0042 34 1/8" Upper 1/4 x 2" Hex Lag Screw Middle Safety Rail A PG-24-0040 42"...
- Page 14 Line up the pre-drilled holes and attach Left Roof Support Note: For easier assembly you can Boards together with Flat Head Screws as shown. start the screws and then line them Line up the pre-drilled holes attach Right Roof Support up with the other holes as shown.
- Page 15 PG-24-0037 #8X3" FLAT HEAD WOOD SCREW Roof Support Board Left PG-24-0046 32 3/8" Roof Support Board 1/4" FLAT WASHER 1/4 x 3" Hex Lag Screw PG-24-0037 Roof Support PG-24-0036 Board Left Roof Support Board Right 1/4" FLAT WASHER 1/4 x 3" Hex Lag Screw PG-24-0036 Roof Support Detail B...
- Page 16 S W I N G - H A N G E R - A S S E M B L Y 1. With item HEAD BEAM lying on the ground attach as shown. DUCTILE SWING HANGERS PG-46-0003 171" 3 POSITION HEAD BEAM 3/8"-16 x 6.5"...
- Page 17 U - S H A P E D B R A C K E T - A S S E M B L Y PG-44-0007 U-JOINT OUTSIDE 1/2" NYLON LOCKNUT 1/2"-13 ACORN NUT PG-44-0008 U-JOINT CENTER SPACE BLOCK 1/2" FLAT WASHER 1/2"...
- Page 18 H E A D B E A M T O - A - F R A M E - A S S E M B L Y PG-46-0003 U-SHAPED BRACKET 171" 3 POSITION HEAD BEAM 3/8"-16 x 6.5" HEX BOLT 5/16"...
- Page 19 3/8"-16 x 6.5" HEX BOLT Detail E 3/8" FLAT WASHER Detail C ANGLE BRACKET 3/8" FLAT WASHER 3/8" NYLON LOCKNUT 5/16" FLAT WASHER 5/16" x 5" LAG SCREW PG-44-0037 118" A-FRAME PG-44-0037 118" A-FRAME PG-44-0005 65" A-FRAME CROSSBRACE With a helper, carefully lift the headbeam while bringing the A-Frame legs together and support the headbeam on the Main Assembly at approximately a height of 8 feet and secure as shown in Detail C.
- Page 20 PG-AC-0016 73 5/8" Vinyl Roof PG-AC-0016 73 5/8" Vinyl Roof #10 FLAT WASHER #10 X 1" ROUND HEAD SCREW Center Vinyl Roof over Headbeam and Roof Support Boards. attach with Attach one end of Vinyl Roof with three #10 Screws and Washers as shown.
-
Page 21: Consumer Information Sheet For Playground Surfacing Materials
Consumer Information Sheet for Playground Surfacing Materials The U.S. Consumer Product Safety Commission maintained at depths of 6", 9", and 12". However, it (CPSC) estimates that about 100,000 playground should be recognized that all injuries due to falls equipment-related injuries resulting from falls to the cannot be prevented no matter what surfacing mate- ground surface are treated annually in the U.S. - Page 22 Non-residential use of the playset is prohibited and voids the warranty as the playsets are designed for residential use only. Escalade Sports reserves the right to examine photographs and/or physical evidence of merchandise claimed to be defective, and to recover said merchandise, prior to disposition of warranty claims. Merchandise returned to our factory for examination or recovery must be shipped freight prepaid, unless a Return Authorization Number is issued.
