Maintenance

13.1 Replacing the Fuse
CAUTION!
When replacing the fuse, make sure to use a replacement fuse of the same rating.
The fuse cartridge is located within the AC power entry module on the rear panel of the PHASER controller.
The cartridge contains a main fuse and a spare fuse. Use the spare fuse for replacement if necessary. For
details of the spare fuse, refer to chapter 18 16. "PHASER Spare Parts".
1. Remove the power cable from the AC power entry module.
2. Pull out the fuse cartridge, and replace both the main and spare fuse (Fig. 13-1) .
Power fuse rating: AC250V T 5A 5.2×20mm (Cat. No. 2702-4085)
3. Insert the fuse cartridge back into the power entry module and replace the power cord.
Maintenance
Cartridge
Spare fuse

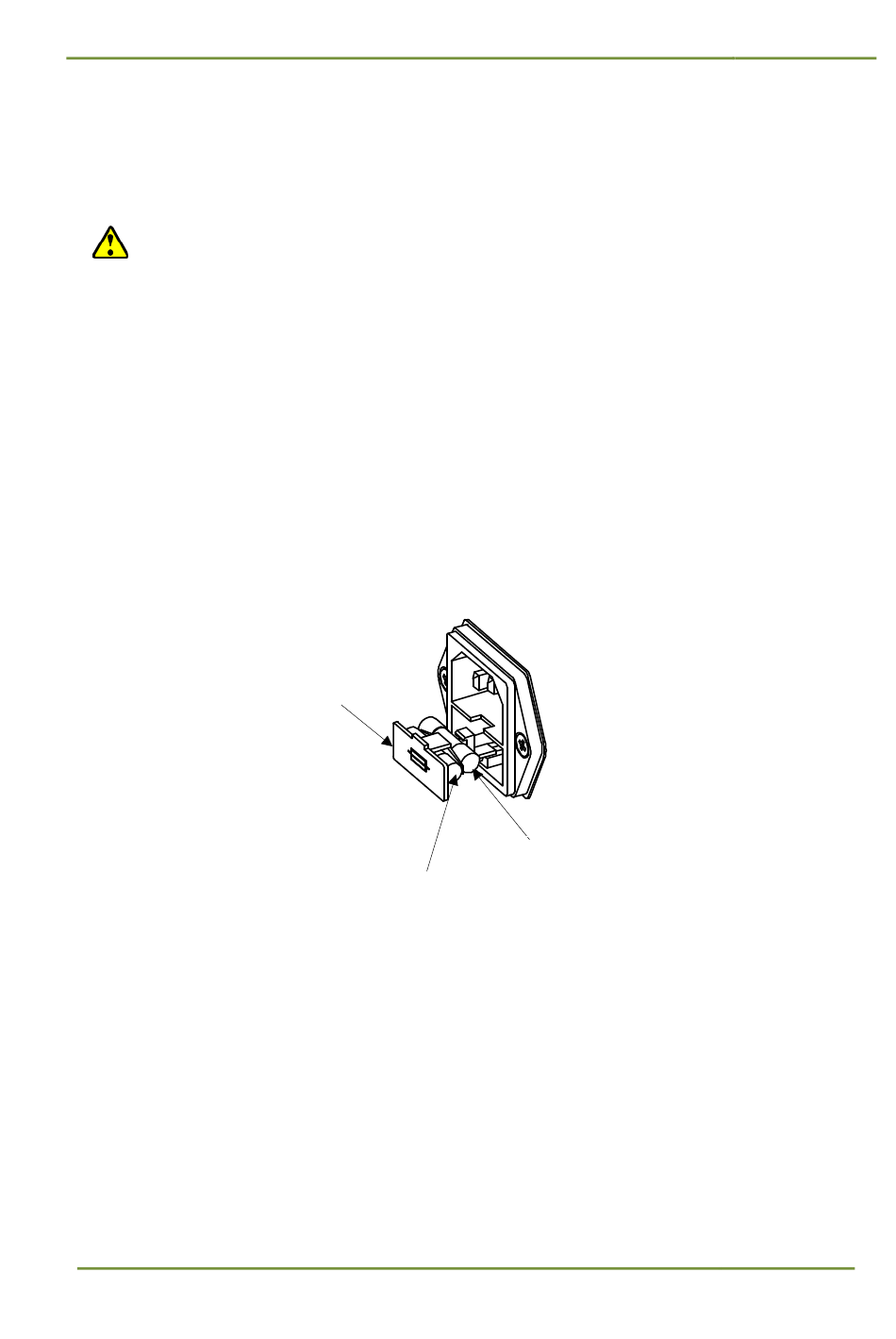

Fig. 13-1
Main fuse
